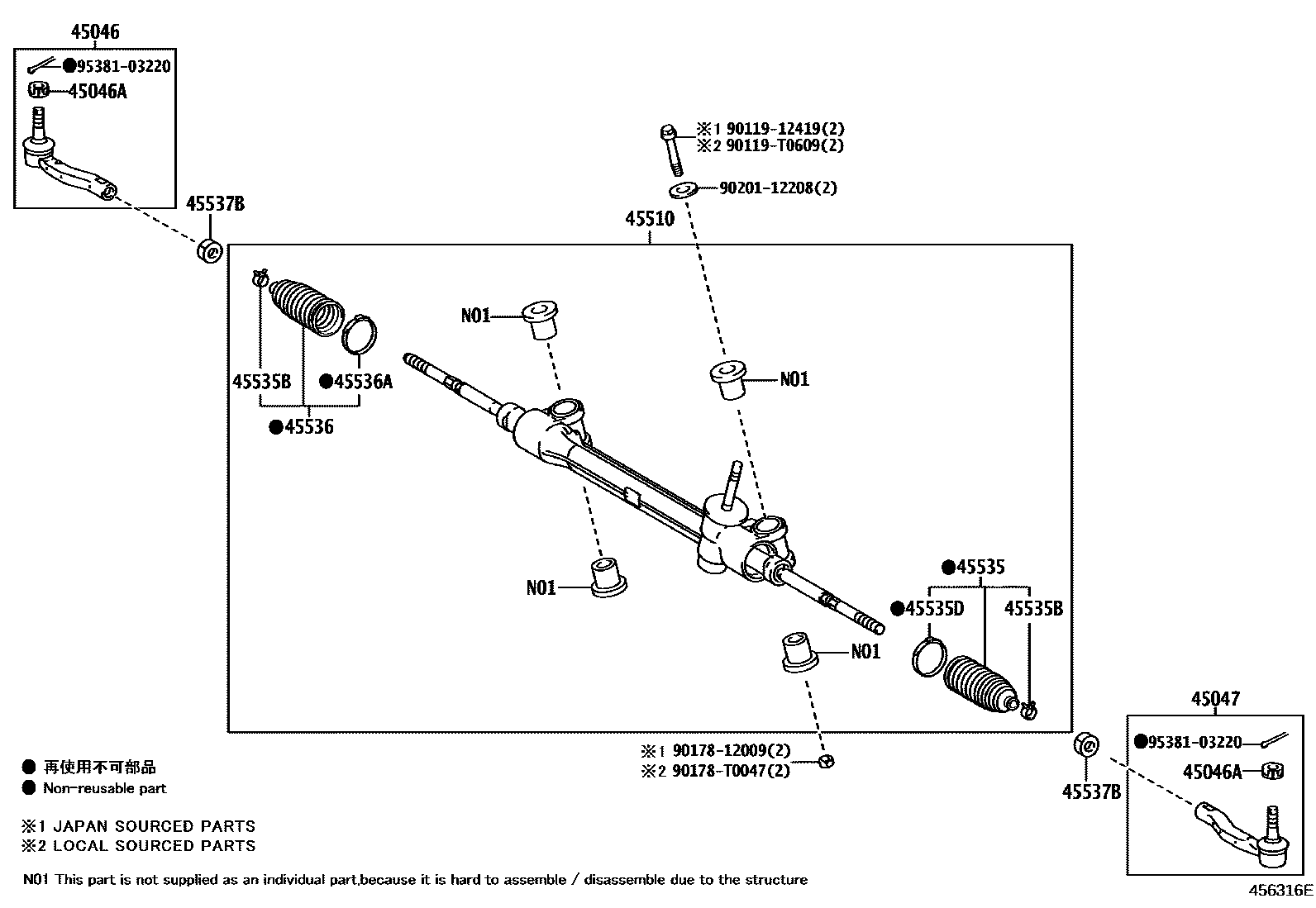

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-09720iNSP151..PH,SA;NSP150..CVT..PH201709-202207

main45046-09760iNSP151..5F..R..C201802-202108

main45046-09870iNSP150,151..H201806-201910

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iNCP150..TAIW201310-201604

(J)

main90171-T0004×2iNSP152..HTWC;NSP151..CVT..(IDN,MA,VN)..R;NSP150,151..(GCC,IDN,MA)..(D,G,V)201709

(L)

45047END SUB-ASSY, TIE ROD, LH

main45047-09370iNCP150..TAIW201310-201604

main45047-09390iNSP151..(G,V)..C;NSP151..CVT..R..C201802

main45047-09400iNSP150,151..H201806-201910

45510GEAR ASSY, STEERING

main45510-0D330iNSP151..CVT..G..C; NSP151..R..C201802-202002

BRUNEI SPEC

main45510-0D331iNSP151..5F..R..C202003-202108

main45510-0D460iNCP151,NSP150,152..RHD201310-201708

main45510-0D461iNSP151..SA..(R,V)202009-202207

main45510-0D470iNSP151..(G,R)..F201804-202101

main45510-0D480iNCP150,NSP151..TAIW..V201409-201802

main45510-0D490iNCP15#,NSP150,151..LHD..(GCC,GEN,PH,VN)201403-201708

main45510-0D491iNSP151..VN..R;NSP150,151..LHD..(GCC,GEN)202003-202302

main45510-0D500iNSP151..D..B201904-202002

main45510-0D501iNSP151..D..B202003-202011

main45510-0D510iNSP151..SA..(R,V)201710-202002

main45510-0D511iNSP151..SA..(R,V)202003-202009

main45510-0D520iNSP151..VN..G201710-202002

main45510-0D521iNSP151..VN..G202003-202009

main45510-0D550iNCP150,NSP151..(G,V)..C201403-201712

main45510-0D551iNSP151..(G,V)..C202003-202009

main45510-0D570iNSP150,151..H201806-201910

main45510-0D610iNSP151..(G,R,V)..B201904-202002

main45510-0D611iNSP151..(G,R,V)..B202003-202011

45535BOOT, STEERING RACK, NO.1

main45535-09300iNSP150..RHD;NSP150..5F..PH201709-202108

main45535-09320iNSP151..B201904-202011

main45535-09330iNSP151..C201403-201712

main45535-09360iNSP151..TAIW201409-201712

main45535-09510iNSP150,151..H201806-201910

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0D040×2iNSP150,151..H201806-201910

main45537-0D080×2iNSP151..B201904-202011

main45537-0D090×2iNSP151..(G,V)..C;NSP151..CVT..R..C201802

main45537-0D100×2iNSP151..TAIW201409-201712

main90467-19021×2iNSP150..RHD;NSP150..5F..PH201709-202108

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-0D020iNSP151..B201904-202011

main45538-0D030iNSP151..(G,V)..C;NSP151..CVT..R..C201802

main45538-0D060iNSP150,151..H201806-201910

main45538-0D090iNSP151..PH,SA;NSP150..CVT..PH201709-202207

main45538-0D110iNCP150..TAIW201409-201603

45536BOOT, STEERING RACK, NO.2

main45535-09300iNSP150..RHD;NSP150..5F..PH201709-202108

main45535-09320iNSP151..B201904-202011

main45535-09330iNSP151..C201403-201712

main45535-09360iNSP151..TAIW201409-201712

main45535-09510iNSP150,151..H201806-201910

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-0D020iNSP151..B201904-202011

main45538-0D030iNSP151..(G,V)..C;NSP151..CVT..R..C201802

main45538-0D060iNSP150,151..H201806-201910

main45538-0D090iNCP15#..GCC,GEN,PH,VN201310-201606

main45538-0D110iNSP151..F201804-202101

45537BNUT, RACK END LOCK

main90170-14012×2iNSP150..RHD;NSP150,151..5F..(IDN,PH)..R201709-202108

9011912419

main90119-12419

90119T0609

main90119-T0609

9017812009

main90178-12009

90178T0047

main90178-T0047

9020112208

main90201-12208

9538103220

main95381-03220

16 parts on this diagram · 2 diagrams in section
