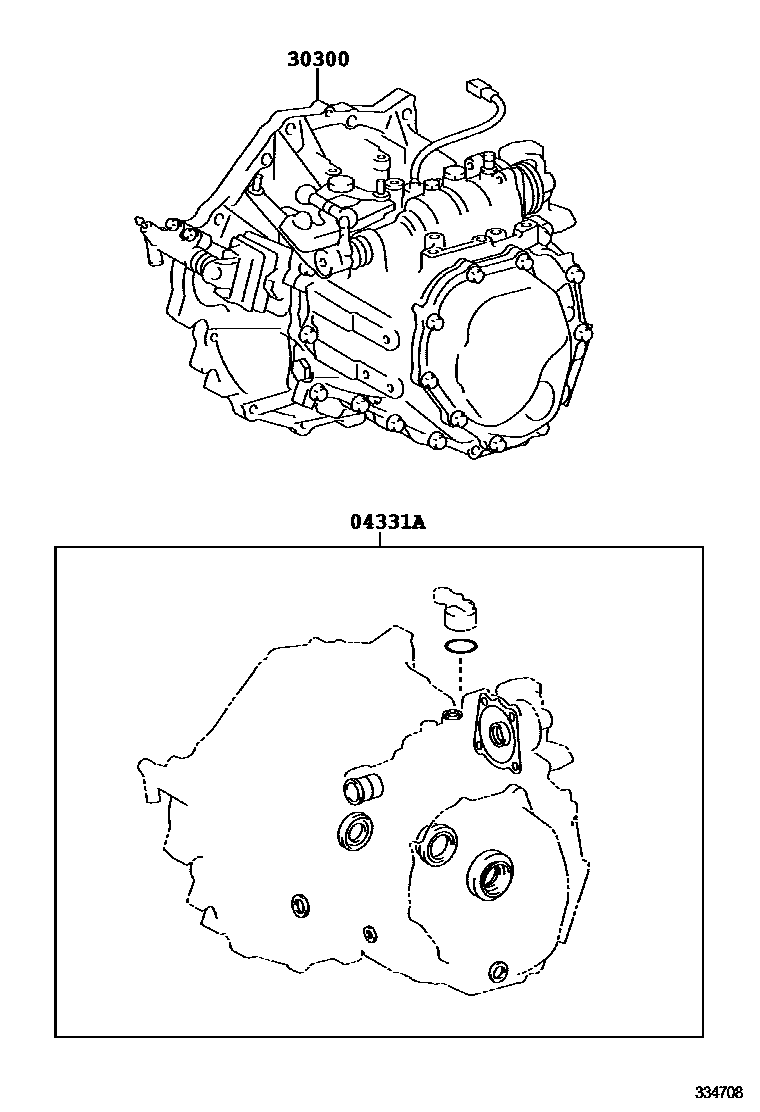

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1C50,C54 0002 1C50,C54 0003 1EC60

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-0D220iNSP151..5F..C201607-201712

main04331-0D250iNSP150,151..5F..GEN..R201911-202302

main04331-20280iNSP150,151..6F201806-201910

main04331-52660iNCP15#..5F..A201403-201606

sub04331-52661

30300TRANSAXLE ASSY, MANUAL

main30300-0D280iNCP150..5F201403-201409

C50

main30300-0D281iNCP150..5F..A201410-201606

C50

main30300-0D290iNCP151..5F201403-201409

C54

main30300-0D291iNCP151..5F201410-201606

C54

main30300-0D450iNSP150..5F201607-201708

C54

main30300-0D460iNSP151..5F..C201607-201712

C50

main30300-0D490iNSP150,151..6F201806-201910

EC60

main30300-0D520iNSP150..5F..GEN..R201710-202302

C54

main30300-0D530iNSP151..5F..(G,V)..C201710

C50

2 parts on this diagram · 3 diagrams in section
