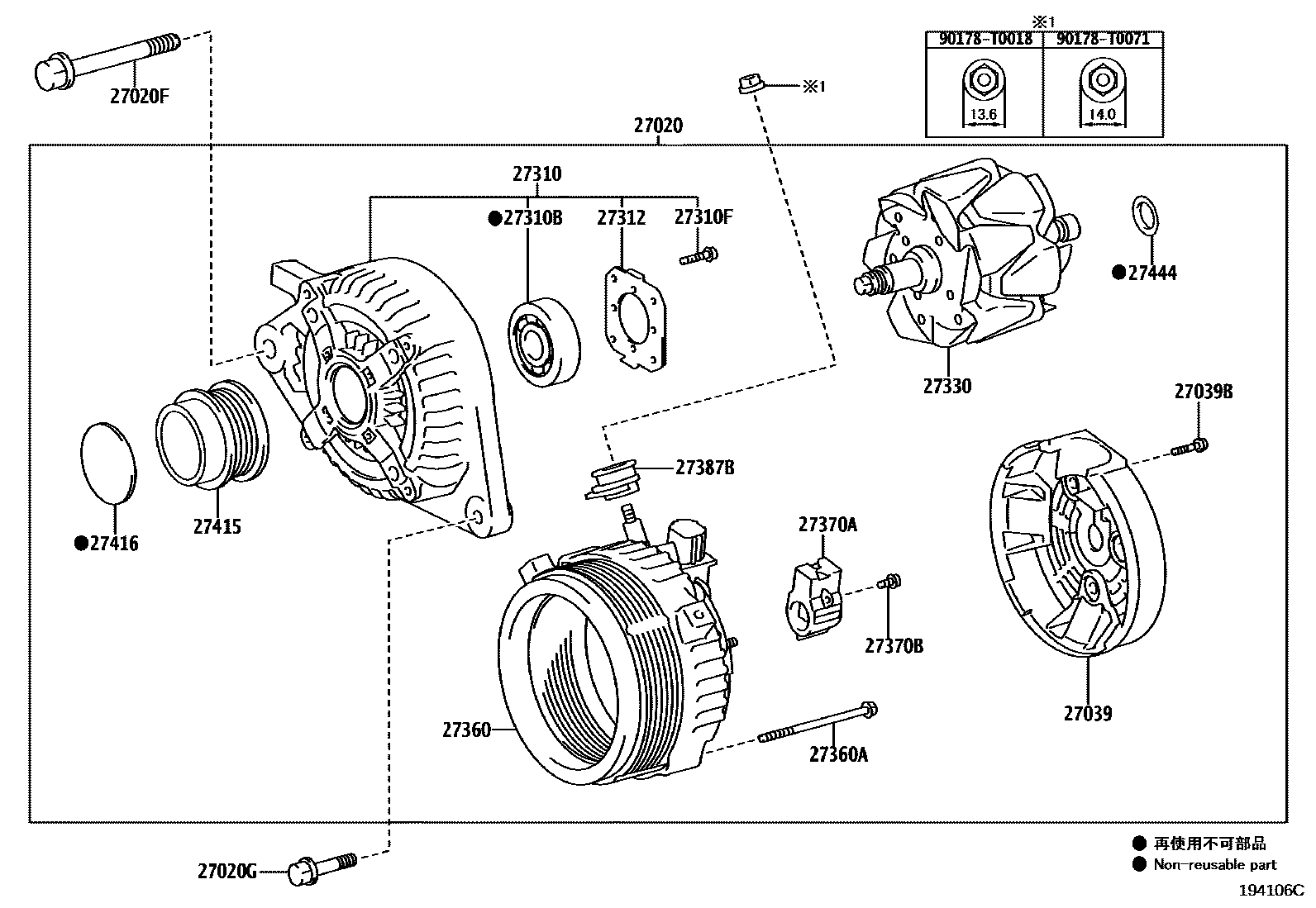

27020ALTERNATOR ASSY
main27060-0M090i1NZFE,2NZFE..NCP15#..GCC,GEN,PH,VN201403-201606 12V 80A
main27060-0Y300i1NRFE,2NRFE..NSP150,151..LHD..(GCC,GEN,VN)..A201710-202302 12V 80A
main27060-0Y310i2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C201802 12V 80A
main27060-0Y360i1NRFBE,2NR#..NSP150,151..H201806-201910 12V 90A
27020FBOLT, NO.1(FOR ALTERNATOR)
main90105-T0172i1NRFE..NSP150..RHD;1NRFE,2NRFE..NSP150,151..5F..(IDN,PH)..R201709-202108 main91552-81075i1NRFBE,2NR#..NSP150,151..H201806-201910 27020GBOLT, NO.2(FOR ALTERNATOR)
main91511-K0840i1NRFBE,2NR#..NSP150,151..H201806-201910 27039COVER, ALTERNATOR REAR END
main27039-0Y260i1NRFBE,2NR#..NSP150,151..H201806-201910 27039BBOLT(FOR ALTERNATOR REAR END COVER)
main90068-04047×3i1NRFE..NSP150..RHD;1NRFE,2NRFE..NSP150,151..5F..(IDN,PH)..R201709-202108 27310FRAME ASSY, DRIVE END, ALTERNATOR
main27310-0Y190i1NRFE..NSP150..LHD..(GCC,GEN);2NRFE,3NRFE..NSP151,152..(GCC,GEN,TH,VN)..A201709-202302 main27310-0Y260i1NRFBE,2NR#..NSP150,151..H201806-201910 main27310-0Y290i2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C201802 27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
main90068-10029i1NRFE..NSP150..RHD;1NRFE..NSP150..5F..PH201710-202108 27310FSCREW(FOR ALTERNATOR DRIVE END FRAME)
main90068-00022×4i1NRFE..NSP150..LHD..(GCC,GEN)..R;2NRFE,3NRFKE..NSP151,152..(GCC,GEN,TH)..R;1NRFE,2NRFE..NSP150,151..CVT..(GEN,VN)..(D,G)..A201709-202302 27312PLATE, RETAINER
main27312-0C020i1NRFE..NSP150..RHD;1NRFE..NSP150..5F..PH201709-202108 main27312-0C190i2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C201802 27330ROTOR ASSY, ALTERNATOR
main27330-0M100i1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN201310-201708 main27330-0Y260i1NRFBE,2NR#..NSP150,151..H201806-201910 27360COIL ASSY, ALTERNATOR
main27360-0M100i1NZFE,2NZFE..NCP15#..GCC,GEN,PH,VN201403-201606 main27360-0Y280i2NRFE..NSP151..PH,SA;1NRFE..NSP150..CVT..PH201710-202207 27360ABOLT(FOR ALTERNATOR COIL)
main90068-04048×4i1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN201310-201708 main90099-04626×4i2NRFE..NSP151..CVT..R..(B,C);2NRFE..NSP151..(D,G,V)..(B,C)201802 27370AHOLDER ASSY, ALTERNATOR BRUSH
main27370-0M040i1NRFE,2NRFE..NSP150,151..(GCC,IDN)..(G,V);2NRFE,3NRFE..NSP151,152..CVT..(IDN,TH,VN)..R201709 27370BSCREW(FOR ALTERNATOR BRUSH HOLDER)
main90068-00023×2i2NRFE..NSP151..PH,SA;1NRFE..NSP150..CVT..PH201709-202207 27387BINSULATOR, ALTERNATOR TERMINAL
main27387-0C020i1NRFE..NSP150..LHD..(GCC,GEN);2NRFE,3NR#..NSP151,152..(GCC,GEN,MA,TH,VN)..(A,B)201709-202302 main27387-0C190i2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C201802 27415PULLEY, ALTERNATOR W/CLUTCH
27416CAP, ALTERNATOR PULLEY
27444PACKING, ALTERNATOR BEARING COVER
main27444-0Y180i1NRFE..NSP150..RHD;1NRFE,2NRFE..NSP150,151..5F..(IDN,PH)..R201709-202108
