EXHAUST PIPE

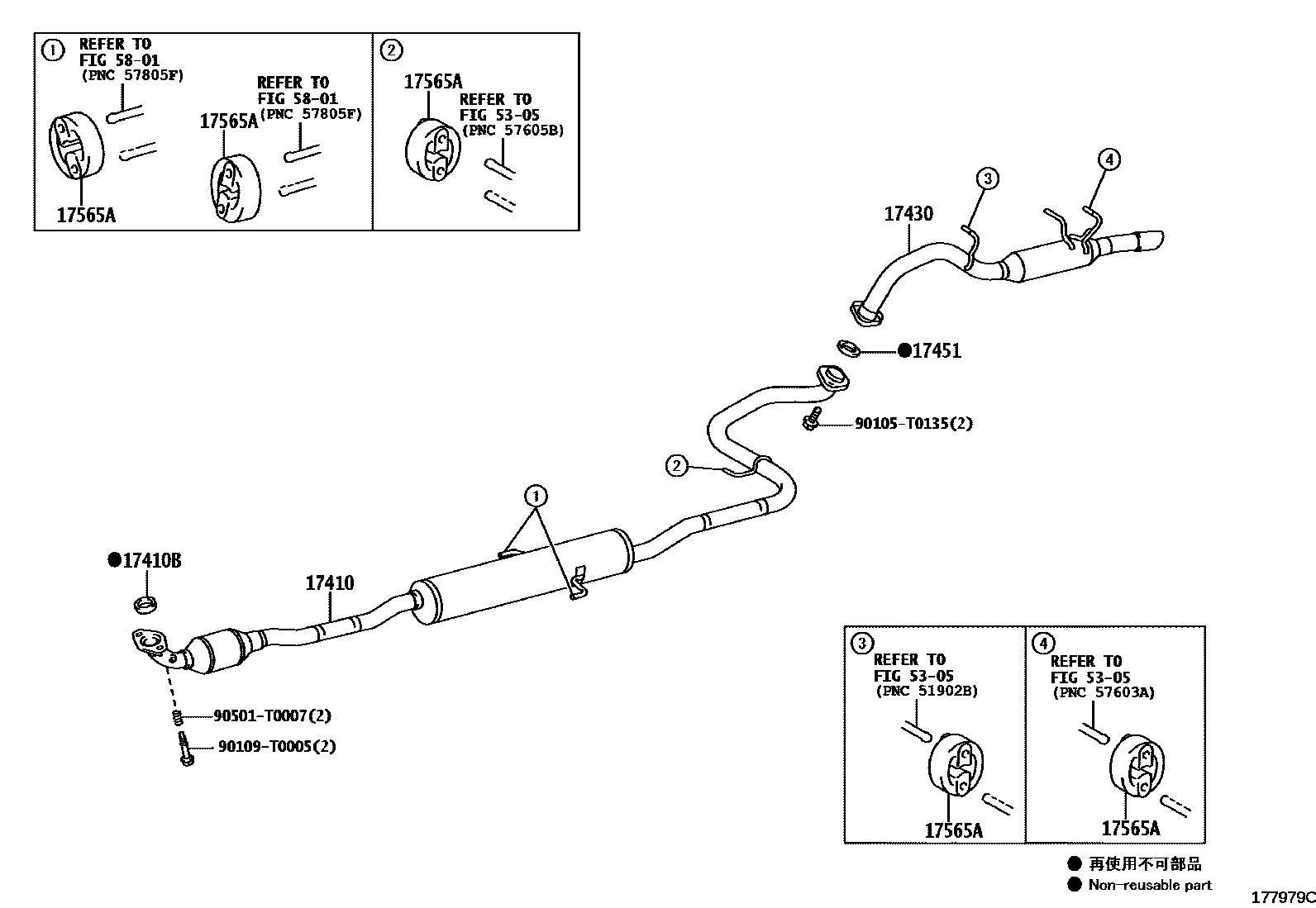

Parts diagram

17410PIPE ASSY, EXHAUST, FRONT

main17410-0M200i201403-201606

main17410-0M240i201409-201604

main17410-0M260i201403-201609

main17410-0Y230i201310-201708

main17410-0Y460i201911-202302

main17410-0Y480i201607-201703

main17410-0Y481i201704-202302

main17410-0Y491i202109-202302

MEXICO SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

main17410-0Y500i201605-201703

main17410-0Y501i201704-202101

main17410-0Y532i201904-202011

main17410-0Y591i201802-202108

main17410-0Y600i201610-201712

main17410-0Y660i201806-201910

main17410-0Y670i201806-201910

main17410-0YA10i201709-201910

17410BGASKET, EXHAUST PIPE

main17451-0M020i201310-202302

main17451-0M020i201906-202101

(L)

main17451-21070i201409-201906

main17451-21070i201906-202101

(J)

17430PIPE ASSY, EXHAUST, TAIL

main17430-0M190i201403-201606

main17430-0M200i201409-201604

main17430-0M220i201403-201609

main17430-0Y080i201310-201708

main17430-0Y200i201610-202108

main17430-0Y210i201607-202302

main17430-0Y230i201605-202101

main17430-0Y350i201806-201910

main17430-0Y480i201904-202011

main17430-0Y520i202109-202302

17451GASKET, EXHAUST PIPE

main17451-0M032i201403-202302

main17451-23042i201409-202101

main90917-06048i201310-201708

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0M030i201310-202302

main17565-0M040i201403-202108

main17565-0Y020i201806-201910

main17565-47010i201409-202101

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

90105T0135

main90105-T0135

90109T0005

main90109-T0005

90501T0007

main90501-T0007

10 parts on this diagram · 6 diagrams in section
