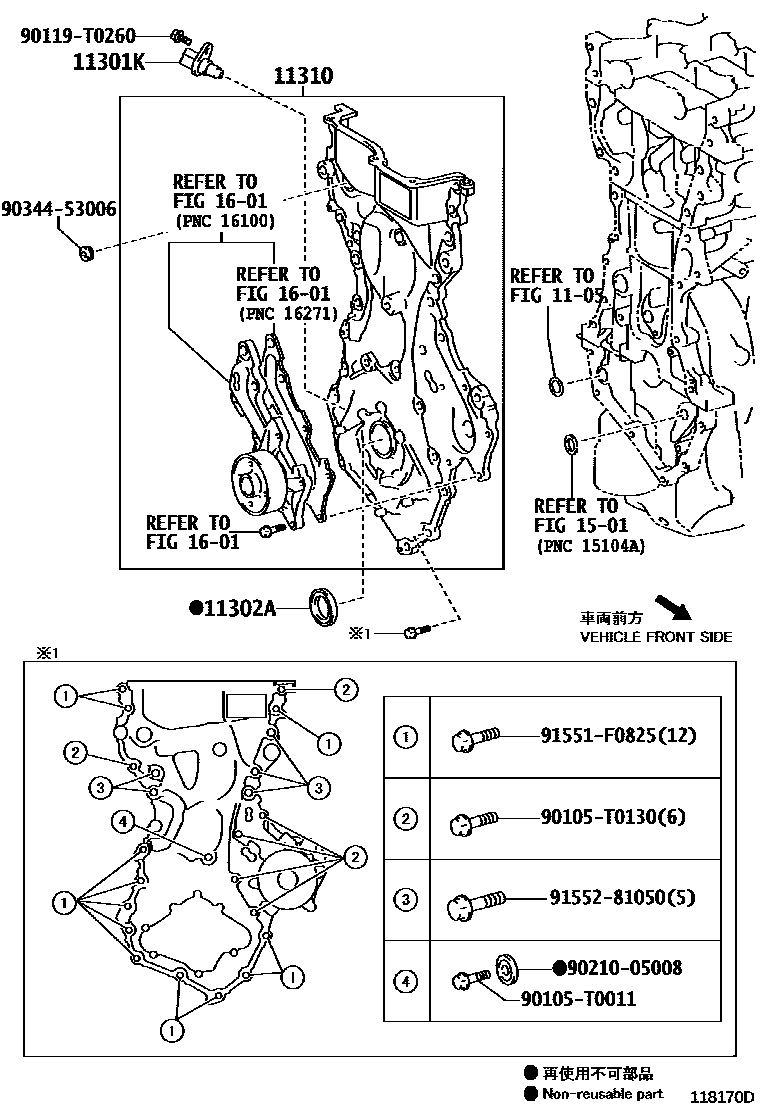

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0004 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

11301KSENSOR, CRANK POSITION

main90919-05073i3NRFE..NSP152201310-201607

main90919-05079i3NRFKE..NSP152201911-202302

main90919-T5001i1NRFE,2NRFE,3NRFE..NSP15#..GCC,GEN,PH,TH,VN201607-201708

*230 OR *432

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-25032i3NRFE..NSP152201310-201607

main90311-T0075i1NRFE..NSP150..RHD;1NRFE,2NRFE..NSP150,151..5F..(IDN,PH)..R201709-202108

*230 OR *432

main90311-T0076i1NRFE,2NRFE..NSP150,151..GCC,GEN,PH,VN201605-201708

*264

11310COVER ASSY, TIMING CHAIN

main11310-0Y040i2NRFE..NSP151..F201710-202101

*264

main11310-0Y060i3NRFKE..NSP152201911-202112

main11310-0Y061i3NRFKE..NSP152202201-202302

main11310-0Y070i1NRFBE,2NR#..NSP150,151..H201806-201910

main11310-0Y080i2NRFE..NSP151..PH,SA;1NRFE..NSP150..CVT..PH201709-202207

*230 OR *432

main11310-47041i3NRFE..NSP152201310-201406

main11310-47042i3NRFE..NSP152201407-201607

1501ENGINE OIL PUMP

→ Go to FIG 15-01

1601WATER PUMP

→ Go to FIG 16-01

90105T0011

main90105-T0011

90105T0130

main90105-T0130

90119T0260

main90119-T0260

9021005008

main90210-05008

9034453006

main90344-53006

91551F0825

main91551-F0825

9155281050

main91552-81050

13 parts on this diagram · 3 diagrams in section
