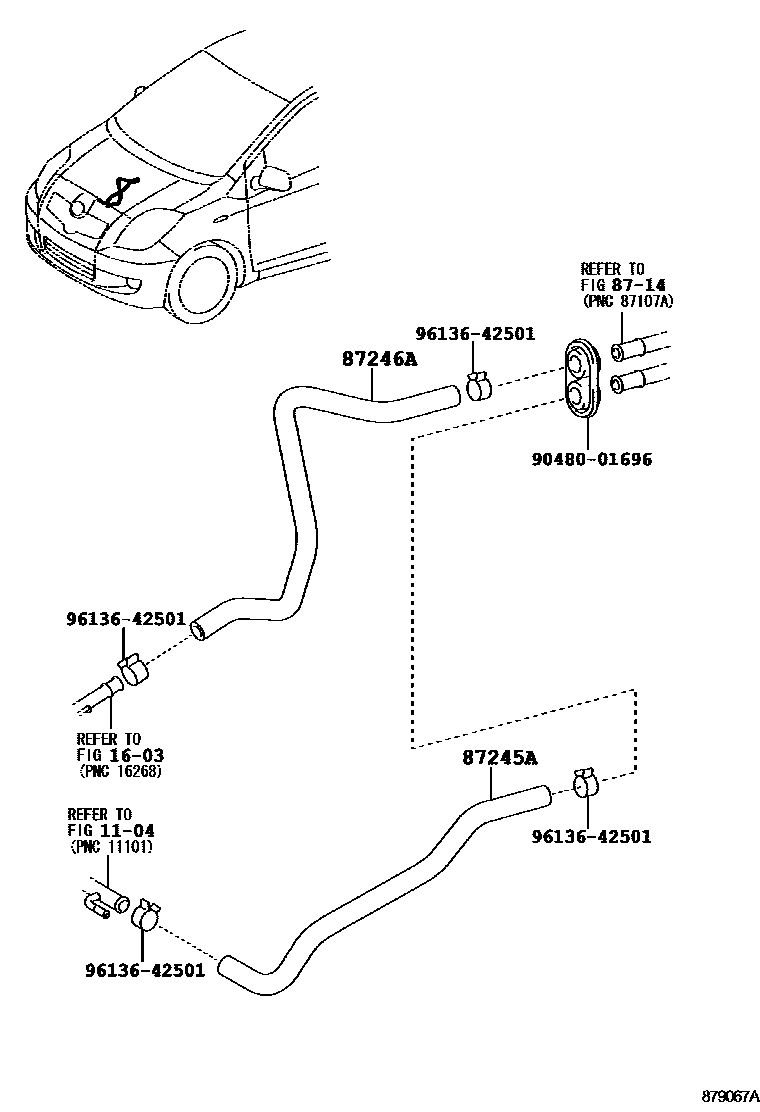

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1VIETNAM SPEC

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87245-0D100iNCP91..TAIW200611-200910

main87245-52080iNCP91..ATM..PH201101-201307

VIETNAM SPEC

87246AHOSE, HEATER WATER, OUTLET A

main87245-0D110iNCP91..TAIW200611-200910

main87245-52100iNCP91..ATM..PH201101-201307

VIETNAM SPEC

9048001696

main90480-01696

9613642501

main96136-42501

7 parts on this diagram · 2 diagrams in section
