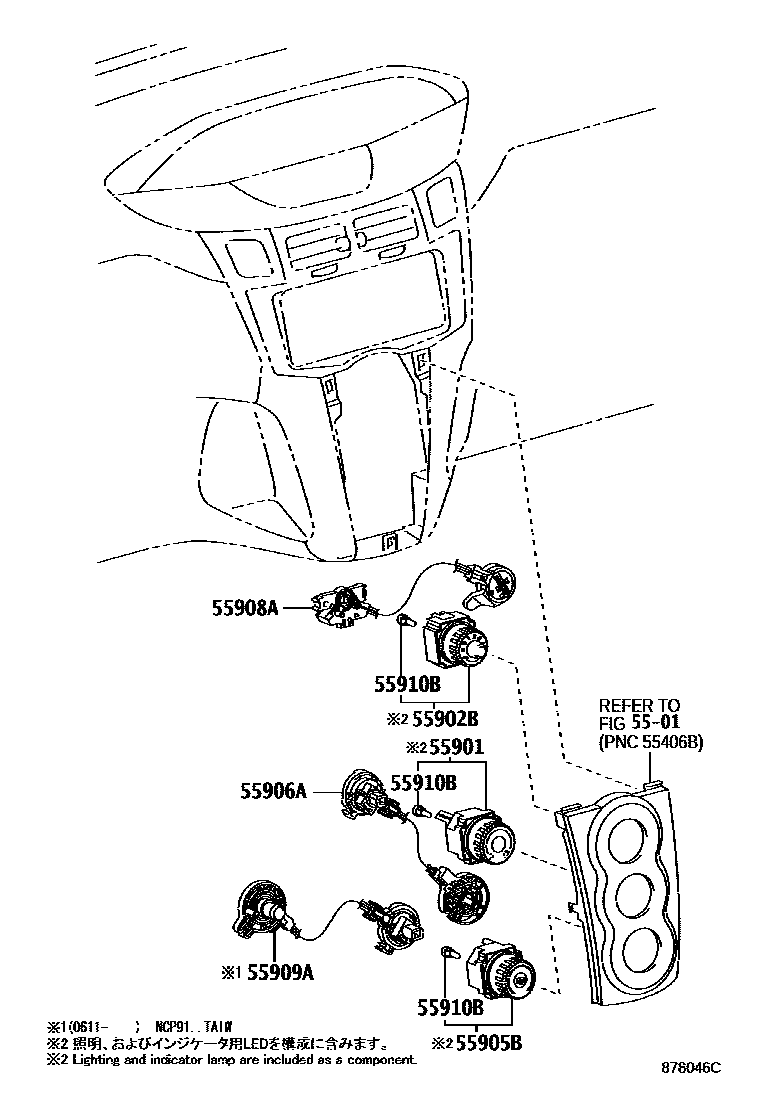

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL---MANUAL 0002 1CONTROL PANEL---AUTO 0003 1AIR DUCT 0004 1AIR DUCT 0005 1SENSOR

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55901BASE SUB-ASSY, HEATER CONTROL

main55901-0D030iNCP91..E201309

main55901-0D040iNCP91..E201307-201309

main55901-0D050iNCP91..(E,G,J)..(IDN,MA,PH,TH)200701-200903

main55901-0D060iNCP91..RHD..S200701-200903

main55901-0D100iNCP91..PH;NCP91..G..TH201202-201307

main55901-0D170iNCP91..RHD..S201202-201307

main55901-0D180iNCP91..PH;NCP91..G..TH200903-201202

main55901-0D190iNCP91..RHD..S200903-201202

main55901-52120iNCP91..RHD..(E,G)200601-200701

main55901-52160iNCP91..RHD..S200601-200701

main55901-0D240iNCP91..ATM..PH201101-201307

VIETNAM SPEC

55902BCONTROL SUB-ASSY, HEATER

main55902-0D020iNCP91..E201309

main55902-0D030iNCP91..E201307-201309

main55902-0D040iNCP91..(E,G,J)..(IDN,MA,PH,TH)200701-200903

main55902-0D050iNCP91..RHD..S200701-200903

main55902-0D140iNCP91..(E,J)..TH;NCP91..(E,G,J)..(IDN,MA)200903-201307

main55902-0D150iNCP91..RHD..S200903-201202

main55902-0D210iNCP91..PH;NCP91..G..TH201202-201307

main55902-0D220iNCP91..RHD..S201202-201307

main55902-52010iNCP91..RHD..(E,G)200601-200701

main55902-52030iNCP91..RHD..S200601-200701

55905BKNOB, HEATER CONTROL, NO.2

main55903-0D030iNCP91..E..TAIW200910-201307

main55903-0D040iNCP91..E201307-201309

main55903-0D050iNCP91..(E,G,J)..(IDN,MA,PH,TH)200701-200903

main55903-0D060iNCP91..RHD..S200701-200903

main55903-0D100iNCP91..PH;NCP91..G..TH201202-201307

main55903-0D170iNCP91..(E,J)..TH;NCP91..(E,G,J)..(IDN,MA)200903-201307

main55903-0D180iNCP91..RHD..S200903-201202

main55903-0D240iNCP91..RHD..S201202-201307

main55903-52070iNCP91..RHD..(E,G)200601-200701

main55903-52120iNCP91..RHD..S200601-200701

main55903-0D210iNCP91..ATM..PH201101-201307

VIETNAM SPEC

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-0D070iNCP91..IDN,MA,PH,TH200601-200903

main55906-52132iNCP91..E..TAIW; NCP91..S..TAIW200910-201409

S LIMITED PACKAGE

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-0D080iNCP91..RHD200903-201307

main55908-0D090iNCP91..PH200701-200903

main55908-52120iNCP91..E..TAIW; NCP91..S..TAIW200910-201409

S LIMITED PACKAGE

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-52120iNCP91..TAIW200611-200910

55910BBULB, HEATER CONTROL

main90010-01112iNCP91..RHD..S200601-200903

main90010-01113iNCP91..E201309

8 parts on this diagram · 5 diagrams in section
