RADIO RECEIVER & AMPLIFIER & CONDENSER

86120RECEIVER ASSY, RADIO

main86120-0D300supersedes 86120-0D530i200601-200711

FUJITSU TEN,ID=12828; FUJITSU TEN,ID=12828,AUDIO-RADIO LESS 4SPEAKER WITH BOX; FUJITSU TEN,ID=12828,SINGAPORE SPEC

main86120-0D301i200712-200903

FUJITSU TEN,ID=12879; FUJITSU TEN,ID=12879,AUDIO-RADIO LESS 4SPEAKER WITH BOX; FUJITSU TEN,ID=12879,SINGAPORE SPEC

main86120-0D320i200611-200910

PANASONIC,ID=52812

main86120-0D330i200601-200711

FUJITSU TEN,ID=12834

main86120-0D331i200712-200903

FUJITSU TEN,ID=12880

main86120-0D340i200611-200910

PANASONIC,ID=52813

main86120-0D530i200903-201307

FUJITSU TEN,ID=12895; FUJITSU TEN,ID=12895,SINGAPORE SPEC

main86120-0D540i200903-201307

FUJITSU TEN,ID=12896

main86120-0D550i200910-201204

PANASONIC,ID=52863

main86120-0D560i200910-201204

PANASONIC,ID=52864

86120AKNOB, RADIO RECEIVER SWITCH

main90010-23020×2i200910-201204

main90011-23015×2i200601-200910

main90011-25166×2i200903-201307

SINGAPORE SPEC

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-52040i200903-201204

86211BRACKET, RADIO, NO.1

main86211-52190i200601-200903

86212BRACKET, RADIO, NO.2

main86212-0D050i200611-200910

main86212-52200i200601-200903

9015350010

90153T0001

9015950372

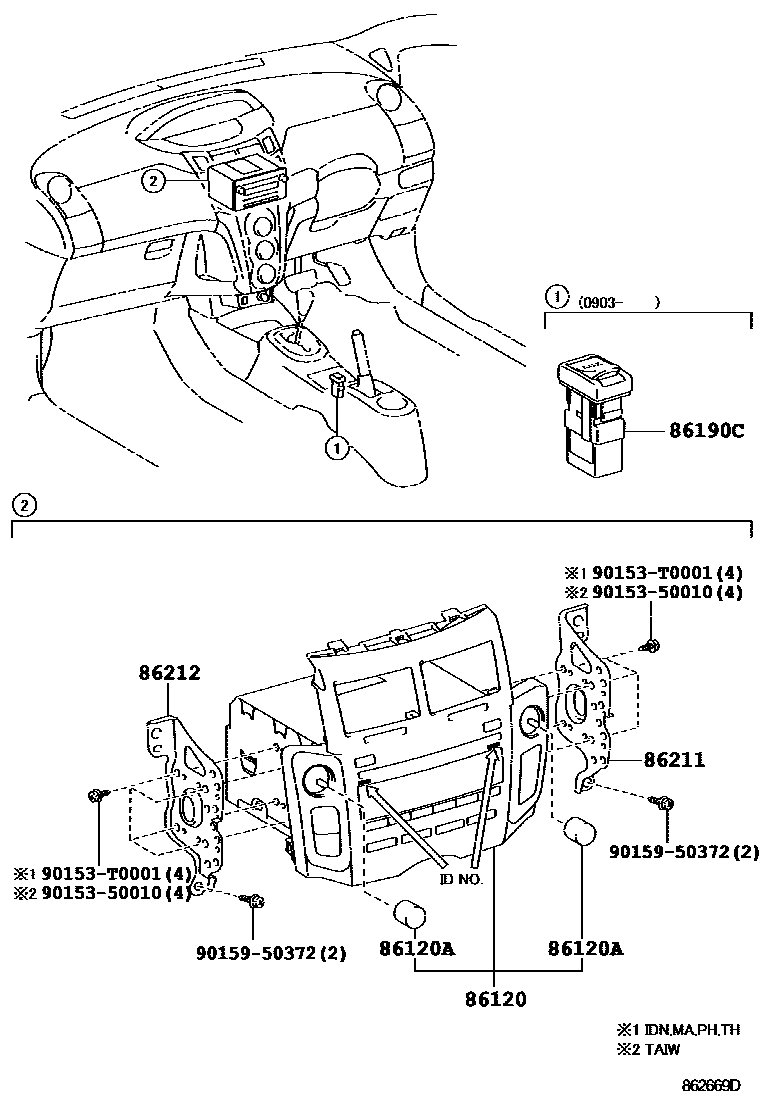

8 parts on this diagram · 2 diagrams in section
