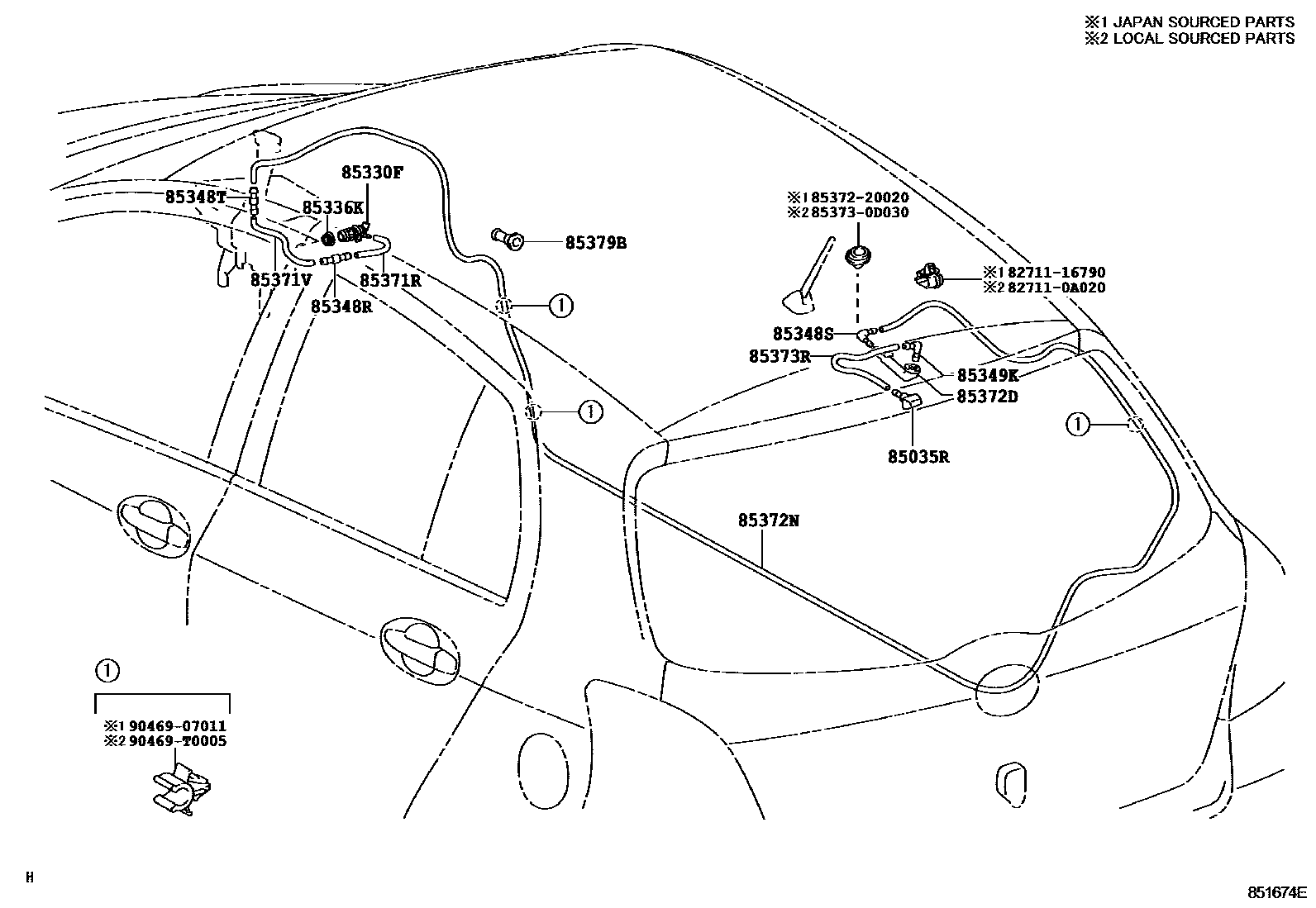

REAR WASHER

0001 1 0002 1

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-52010iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-60160iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

85336KPROTECTOR, WASHER JAR

main85336-0K020iNCP91..IDN,MA,PH,TH200903-201307

main85336-60300iNCP91..TAIW200611-200910

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iNCP91..IDN,MA,PH,TH200601-200903

main85375-02330iNCP91..IDN,MA,PH,TH200909-201104

main85375-10260iNCP91..TAIW200910-201102

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

main85377-0D040iNCP91..IDN,MA,PH,TH201003-201307

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iNCP91..IDN,MA,PH,TH200601-200903

main85375-02330iNCP91..IDN,MA,PH,TH201003-201307

main85375-10260iNCP91..TAIW200910

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200iNCP91200903

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main85336-12230iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

L=15

main85377-0D081iNCP91..IDN,MA,PH,TH200909-201104

85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)

main90068-33150iNCP91..IDN,MA,PH,TH201004-201104

L=200

main90099-33080iNCP91..IDN,MA,PH,TH200903-201004

L=1450(*H,L=200)

main90099-62074iNCP91..IDN,MA,PH,TH201104-201307

L=245

85372DGROMMET, REAR WASHER HOSE

main85372-20040iNCP91..TAIW200910

main85373-0D040iNCP91..IDN,MA,PH,TH200903-201307

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90068-59099iNCP91..IDN,MA,PH,TH201003-201307

L=4345

main90099-33595iNCP91..IDN,MA,PH,TH200903-201003

L=4985(*H,L=4345)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iNCP91200903

L=1000(*H,L=220)

85379BGROMMET, WASHER, A

main85379-0D120iNCP91..IDN,MA,PH,TH201003-201307

main85379-52351iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

827110A020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-0A020

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

8537220020HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20020

853730D030HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-0D030

9046907011

main90469-07011

90469T0005

main90469-T0005

19 parts on this diagram · 2 diagrams in section
