Toyota YARIS (ASIA)113 — WINDSHIELD WASHER

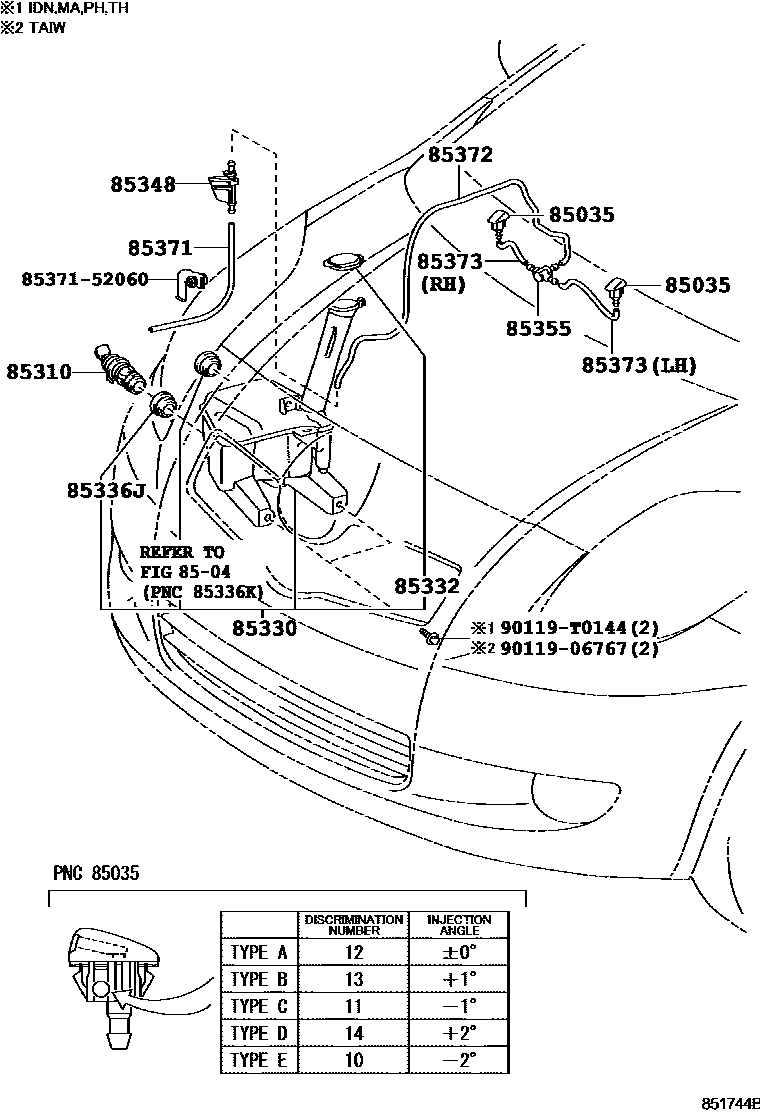

Parts diagram

85035NOZZLE SUB-ASSY, WASHER

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

85330JAR ASSY, WINDSHIELD WASHER

85332CAP, WINDSHIELD WASHER JAR

85336JPROTECTOR, WASHER JAR

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

85355VALVE, WINDSHIELD WASHER HOSE

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

8537152060HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

9011906767

90119T0144

14 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota YARIS (ASIA)113

This section contains 14 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota YARIS (ASIA)113. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, CAP, WINDSHIELD WASHER JAR.
