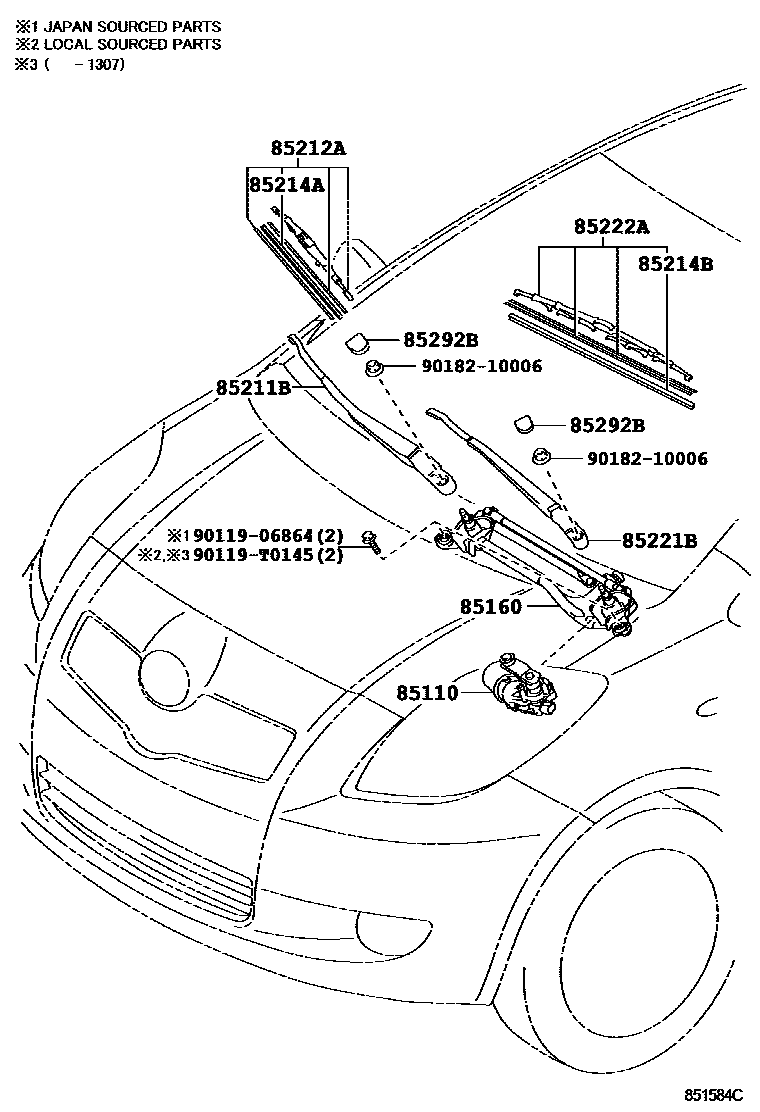

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0D100iNCP91..LHD200611-200910

main85110-0D101iNCP91..LHD201201

main85110-0D110iNCP91..RHD200701-200903

main85110-52280iNCP91..RHD200601-200612

85160LINK ASSY, WINDSHIELD WIPER

main85150-0D100iNCP91..LHD200903

main85150-0D110iNCP91..RHD200701-200903

main85150-52230iNCP91..RHD200601-200612

85211BARM, FRONT WIPER, RH

main85211-0D080iNCP91..RHD200903-201307

main85211-0D090iNCP91..LHD200611-200910

85212ABLADE, FR WIPER, RH

main85212-0D070iNCP91..RHD200903-201307

main85212-0D081iNCP91..LHD200611-200910

85214ARUBBER, WIPER, RH

main85214-02180iNCP91..RHD200601-200903

main85214-0D121iNCP91..LHD200611-200910

85214BRUBBER, WIPER, LH

main85214-02180iNCP91..LHD200611-200910

main85214-0D120iNCP91200601-200607

main85214-0D121iNCP91..RHD200903-201307

85221BARM, FRONT WIPER, LH

main85221-0D080iNCP91..RHD200601-200903

main85221-0D090iNCP91..LHD200611-200910

85222ABLADE, FR WIPER, LH

main85222-0D070iNCP91200601-200607

main85222-0D071iNCP91..RHD200608-200903

main85222-0D080iNCP91..LHD200611-200910

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D030×2iNCP91..IDN,MA,PH,TH200601-200903

main85292-0D050×2iNCP91..TAIW200910

9011906864

main90119-06864

90119T0145

main90119-T0145

9018210006

main90182-10006

12 parts on this diagram · 1 diagram in section
