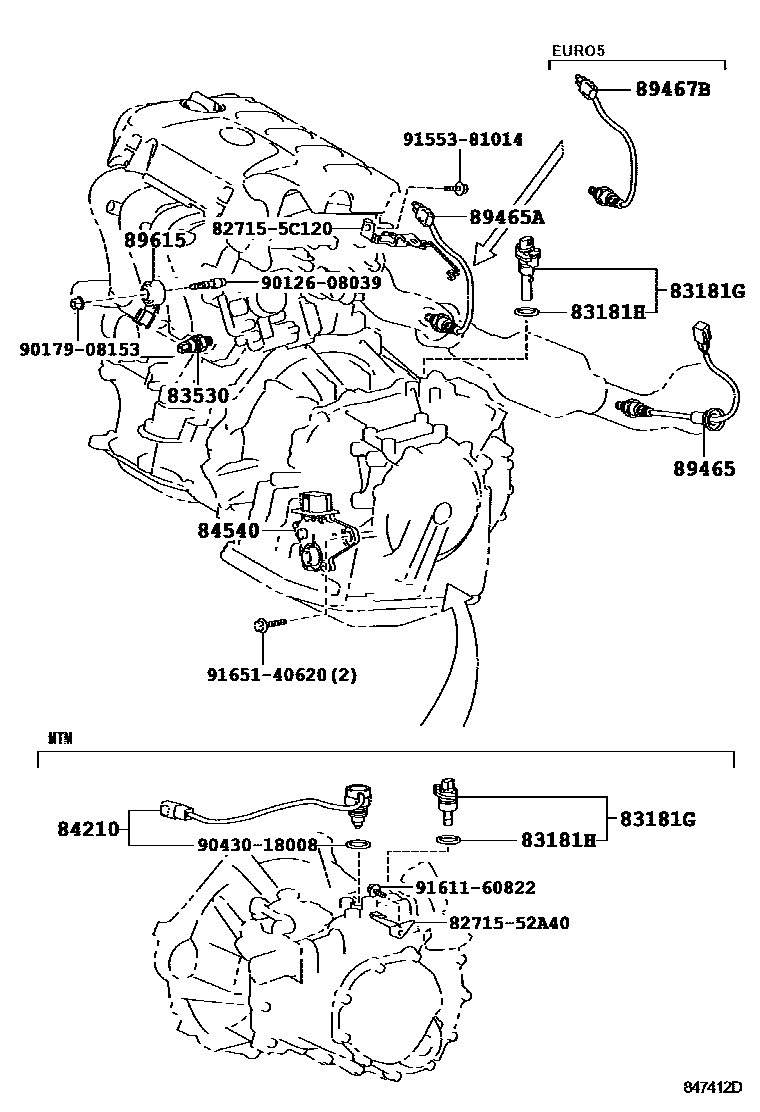

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 1/2 0003 1ENGINE ROOM 2/2 0004 1COWL 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1INSTRUMENT PANEL 0008 1IGNITION & COMBINATION SW 0009 1DOOR,ROOF,FLOOR,SEAT & LAGGAG

83181GSENSOR, SPEEDOMETER

main83181-12020iNCP91..MTM..J200903-201307

main83181-12040iNCP91..TAIW;NCP91..ATM..J200611-200910

83181HRING, O (FOR SPEEDOMETER SENSOR)

main96711-24018iNCP91..TAIW;NCP91..ATM..J200611-200910

main96711-24030iNCP91..MTM..J200903-201307

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

main83530-60020iNCP91200903

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-52010iNCP91..MTM200903-201307

84540SWITCH ASSY, NEUTRAL START

main84540-46010iNCP91..ATM200601-200910

89465SENSOR, OXYGEN

main89465-12A90iNCP91201309

main89465-52370iNCP91200903-201309

89465ASENSOR, OXYGEN NO.2

main89465-52380iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

89467BSENSOR, AIR FUEL RATIO

main89467-52230iNCP91201309

89615SENSOR, KNOCK CONTROL

main89615-20090iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

8271552A40BRACKET,WIRING HARNESS CLAMP

main82715-52A40

827155C120BRACKET,WIRING HARNESS CLAMP

main82715-5C120

9012608039

main90126-08039

9017908153

main90179-08153

9043018008

main90430-18008

9155381014

main91553-81014

9161160822

main91611-60822

9165140620

main91651-40620

17 parts on this diagram · 9 diagrams in section
