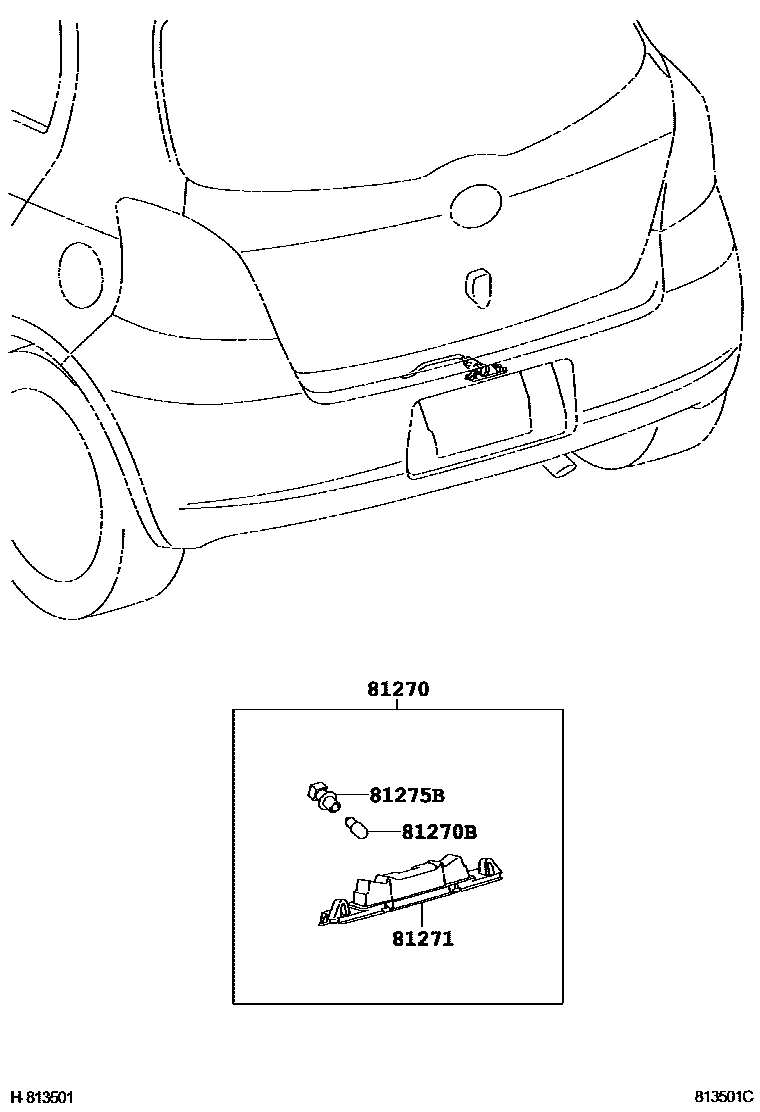

REAR LICENSE PLATE LAMP

0001 1 0004 1

81270LAMP ASSY, LICENSE PLATE

main81270-0D060iNCP91..J..TH200903-201307

main81270-0D070iNCP91..TAIW200611-200910

main81270-52020×2iNCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)201202

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050iNCP91..J..TH;NCP91..(E,G)..TAIW200903

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-0D060iNCP91..IDN,MA,PH,TH200601-200903

main81271-52020×2iNCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)201202

main81271-8C004iNCP91..TAIW200611-200910

81275BSOCKET PLUG, LICENSE PLATE LAMP

main81278-0D060iNCP91..IDN,MA,PH,TH200601-200903

main90075-60005×2iNCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)201202

main90075-8C007iNCP91..TAIW200611-200910

4 parts on this diagram · 2 diagrams in section
