FRONT SEAT & SEAT TRACK

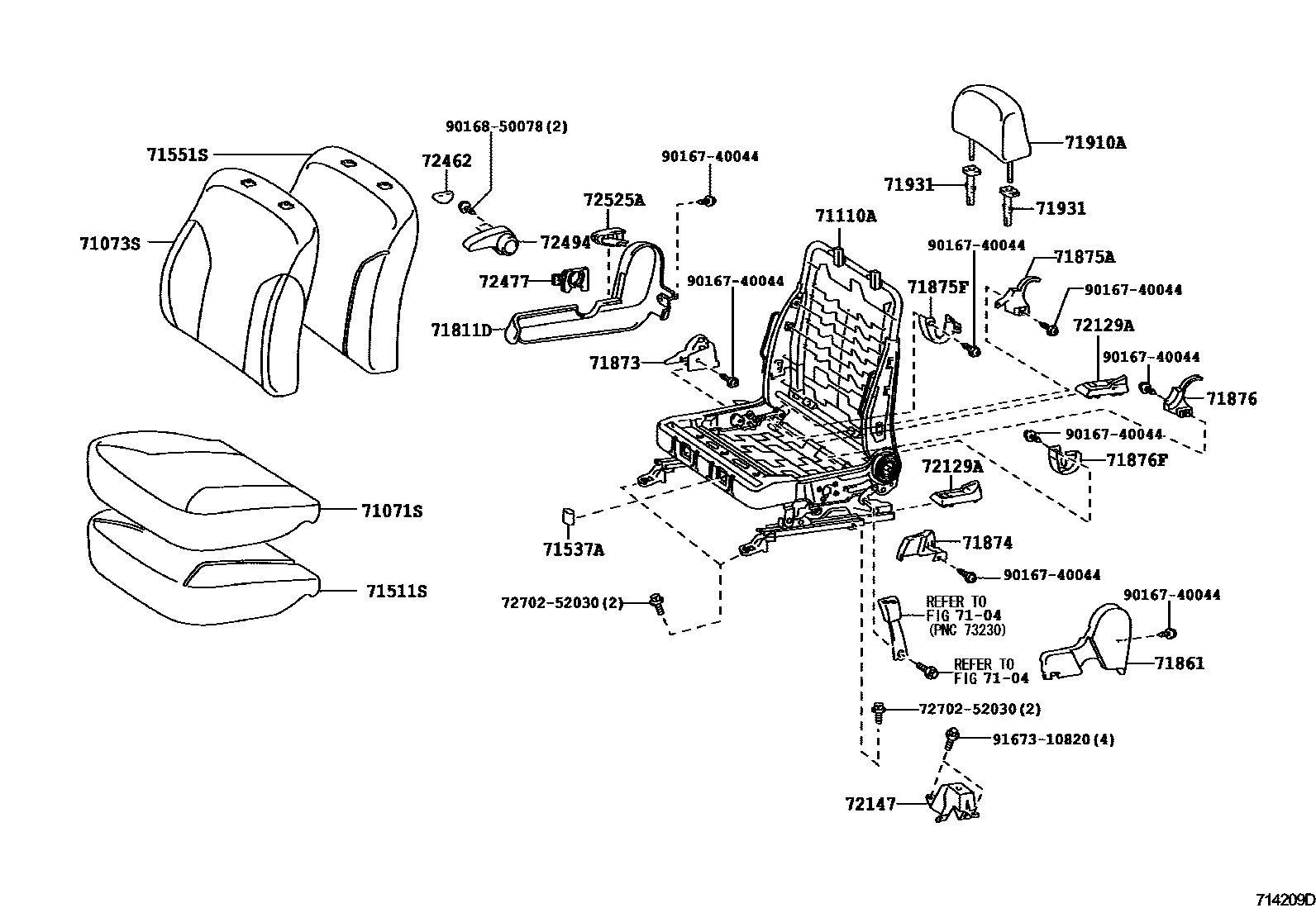

Parts diagram
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-0D360-C1supersedes 71071-0D640-B0i200601-200701
BLACK,TRIM1#; SINGAPORE SPEC,BLACK,TRIM1#
main71071-0D380-C1i200601-200701
BLACK,TRIM1#
main71071-0D400-C0i200611-200910
BLACK,TRIM1#
main71071-0D410-B0i201309-201409
E LETHER(TAIWAN)&SEAT COVER MATERIAL-2-TONE LEATHER,IVORY,TRIM20; E LETHER(TAIWAN)&SEAT COVER MATERIAL-LEATHER,IVORY,TRIM20; IVORY,TRIM1#,20; S LIMITED PACKAGE,IVORY,TRIM2#
main71071-0D410-B1i201309-201409
E LETHER(TAIWAN)&SEAT COVER MATERIAL-2-TONE LEATHER,GRAY,TRIM21; E LETHER(TAIWAN)&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM21; GRAY,TRIM21
main71071-0D420-B0supersedes 71071-0D410-B0i200611-200910
DK.GRAY,TRIM1#
main71071-0D430-C0i200701-200903
BLACK,TRIM1#
main71071-0D560-C0i200702-200903
BLACK,TRIM1#; SINGAPORE SPEC,BLACK,TRIM1#
main71071-0D580-C0i200702-200903
BLACK,TRIM1#
main71071-0D620-B1i200903-201307
DARK GRAY,TRIM1#
main71071-0D630-B1i200903-201307
DARK GRAY,TRIM1#
main71071-0D650-B0i200903-201202
DARK GRAY,TRIM1#
main71071-0D651-D0i201202-201307
RED,TRIM1#
main71071-0D670-B0supersedes 71071-0D410-B0i200910-201202
DK.GRAY,TRIM1#; SEAT COVER MATERIAL-FABRIC SPORT,DK.GRAY,TRIM1#,2#
main71071-0D671-B0i201202-201204
DK.GRAY,TRIM1#
main71071-0D671-D1i201204-201409
RED/BLACK,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-0D450-C1supersedes 71074-0D480-B1i200601-200701
BLACK,TRIM1#; SINGAPORE SPEC,BLACK,TRIM1#
main71073-0D470-C1i200601-200701
BLACK,TRIM1#
main71073-0D530-B0supersedes 71073-0D560-B0i200910-201202
DK.GRAY,TRIM1#; SEAT COVER MATERIAL-FABRIC SPORT,DK.GRAY,TRIM1#,2#
main71073-0D531-B0i201202-201204
DK.GRAY,TRIM1#
main71073-0D531-D1i201204-201409
RED/BLACK,TRIM1#
main71073-0D550-C0i200910-201409
BLACK,TRIM1#,2#
main71073-0D560-B0i201309-201409
E LETHER(TAIWAN)&SEAT COVER MATERIAL-2-TONE LEATHER,IVORY,TRIM20; E LETHER(TAIWAN)&SEAT COVER MATERIAL-LEATHER,IVORY,TRIM20; IVORY,TRIM1#,20; S LIMITED PACKAGE,IVORY,TRIM2#
main71073-0D560-B1i201309-201409
E LETHER(TAIWAN)&SEAT COVER MATERIAL-2-TONE LEATHER,GRAY,TRIM21; E LETHER(TAIWAN)&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM21; GRAY,TRIM21
main71073-0D570-B0supersedes 71073-0D560-B0i200611-200910
DK.GRAY,TRIM1#
main71073-0D580-C0i200701-200903
BLACK,TRIM1#
main71073-0D750-C0i200702-200903
BLACK,TRIM1#
main71073-0D800-B1i200903-201307
DARK GRAY,TRIM1#
main71073-0D820-B0i200903-201202
DARK GRAY,TRIM1#
main71073-0D821-D0i201202-201307
RED,TRIM1#
main71074-0D260-C0i200702-200903
BLACK,TRIM1#; SINGAPORE SPEC,BLACK,TRIM1#
main71074-0D480-B1i200903-201307
DARK GRAY,TRIM1#
71110AFRAME ASSY, FRONT SEAT W/ADJUSTER, RH
main71110-0D010i200601-200701
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-0D030i200601-200701
main71511-0D050i200611-200910
main71511-0D060i200701-200903
main71511-0D120i200702-200903
71537APROTECTOR, FRONT SEAT CUSHION
main71537-26010×4i200601-200701
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-0D070i200601-200701
main71551-0D090i200910
main71551-0D100i200701-200903
main71551-0D170i200702-200903
main71552-0D050i200903-201307
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-0D080-B0i200910-201409
DK.GRAY,TRIM1#,2#
main71811-0D100-B0i200903-201307
DK.GRAY,TRIM1#
main71811-0D110-B0i200903-201307
DK.GRAY,TRIM1#
main71811-52210-B0i200601-200701
DK.GRAY,TRIM1#
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-0D060-B0i200611-200910
DK.GRAY,TRIM1#
main71861-0D080-B0i200702-200903
DK.GRAY,TRIM1#
main71861-52200-B0i200601-200701
DK.GRAY,TRIM1#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-0D030i200910
main71873-0D030-B0i200611-200809
DK.GRAY,TRIM1#
main71873-0D070-B0i200701-200903
DK.GRAY,TRIM1#
main71873-52090-B0i200601-200701
DK.GRAY,TRIM1#
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-0D030i200910
main71874-0D030-B0i200611-200809
DK.GRAY,TRIM1#
main71874-0D070-B0i200702-200903
DK.GRAY,TRIM1#
main71874-52110-B0i200601-200701
DK.GRAY,TRIM1#
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71875-06070-B0i200903-201307
DK.GRAY,TRIM1#
main71875-52090-B0i200601-200701
DK.GRAY,TRIM1#
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
main71875-06370i201202
main71875-52170-B0i200601-200701
DK.GRAY,TRIM1#
main71876-06400i200910-201202
SEAT COVER MATERIAL-FABRIC SPORT
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71876-06320-B0i200611-200910
DK.GRAY,TRIM1#
main71876-52090-B0i200601-200701
DK.GRAY,TRIM1#
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
main71875-06370i200611-200903
main71876-06400i201202
main71876-52160-B0i200601-200701
DK.GRAY,TRIM1#
71910AHEADREST ASSY, FRONT SEAT
main71910-0D400-C2×2supersedes 71910-0D680-B0i200601-200903
BLACK,TRIM1#
main71910-0D430-C0×2i200702-200903
BLACK,TRIM1#
main71910-0D440-C0×2i200910-201409
BLACK,TRIM1#,2#
main71910-0D450-B1×2i201204-201309
DK.GRAY,TRIM2#; E LETHER(TAIWAN),DK.GRAY,TRIM2#
main71910-0D450-B2×2i201309-201409
E LETHER(TAIWAN)&SEAT COVER MATERIAL-2-TONE LEATHER,GRAY,TRIM21; E LETHER(TAIWAN)&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM21; GRAY,TRIM21
main71910-0D460-B0×2supersedes 71910-0D450-B0i200611-200910
DK.GRAY,TRIM1#
main71910-0D670-B1×2i200903-201307
DARK GRAY,TRIM1#
main71910-0D690-B0×2i200903-201202
DARK GRAY,TRIM1#
main71910-0D691-C1×2i201202-201307
BLACK,TRIM1#
main71910-0D710-B0×2supersedes 71910-0D450-B0i200910-201204
DK.GRAY,TRIM1#
main71910-0D711-C0×2i201204-201409
BLACK,TRIM1#
main71910-0D450×2i201202-201204
E LETHER(TAIWAN)
71931SUPPORT, FRONT SEAT HEADREST
main71930-02370-B1×2i200903-201307
W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#
main71930-47010-B2×2i200601-200701
W(LOCK),DK.GRAY,TRIM1#
main71931-02130-B1×2i200903-201307
W/O(LOCK),DK.GRAY,TRIM1#
main71931-47010-B2×2i200601-200701
W/O(LOCK),DK.GRAY,TRIM1#
72129APROTECTOR, SEAT TRACK LOWER RAIL, NO.2
main72129-52030×4i200601-200701
72147BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH
main72147-0D020i200601-200701
main72147-0D030i200903
72462COVER, VERTICAL ADJUSTER RH
main72462-0D040-B0i200702-200903
DK.GRAY,TRIM1#
main72462-58010-B0i200601-200701
DK.GRAY,TRIM1#
72477SPACER, VERTICAL ADJUSTER
main72477-58010i200601-200701
72494HANDLE, VERTICAL ADJUSTING, RH
main72494-0D040-B0i200903-201307
DK.GRAY,TRIM1#
main72494-52020-B0i200601-200701
DK.GRAY,TRIM1#
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-0D070-B0i200611-200910
DK.GRAY,TRIM1#
main72525-0D090-B0i200702-200903
DK.GRAY,TRIM1#
main72525-58030-B0i200601-200701
DK.GRAY,TRIM1#
7270252030BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-52030
9016740044
main90167-40044
9016850078
main90168-50078
9167310820
main91673-10820

27 parts on this diagram · 6 diagrams in section
