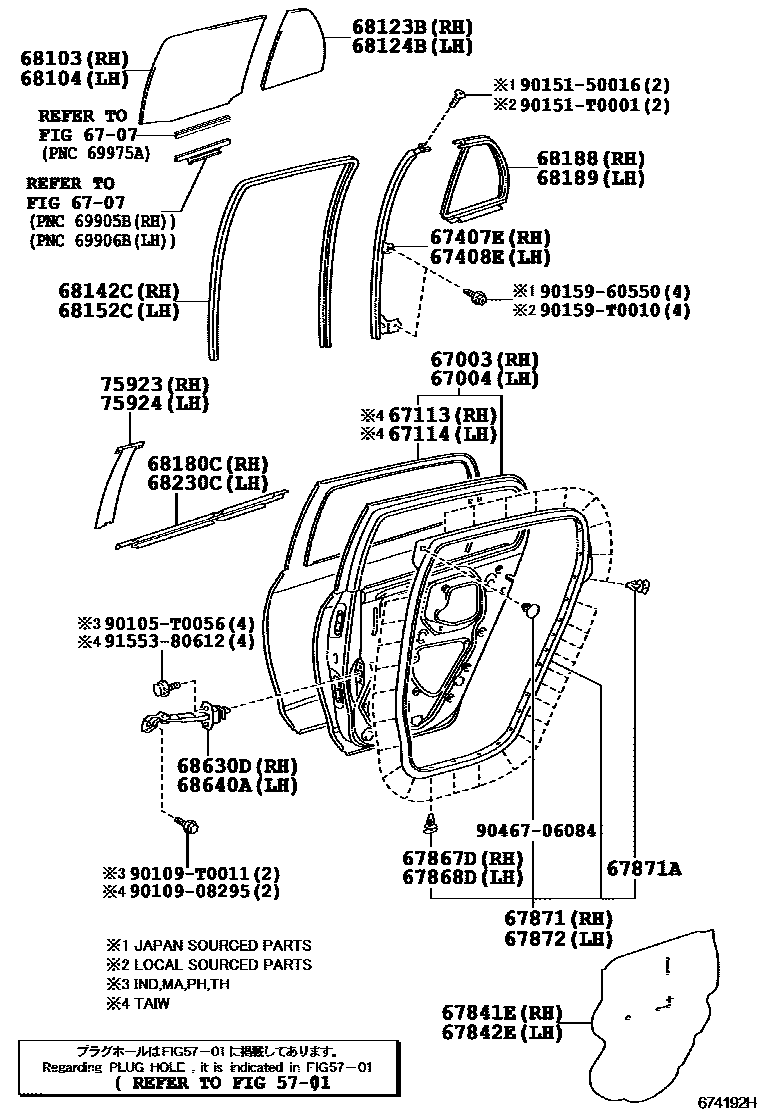

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701HOLE PLUG

→ Go to FIG 57-01

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-0D140iNCP91..IDN,MA,PH,TH200601-200903

main67003-0D150iNCP91..TAIW200611-200910

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-0D140iNCP91..IDN,MA,PH,TH200903-201307

main67004-0D150iNCP91..TAIW200611-200910

6707REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-07

67113PANEL, REAR DOOR, OUTER RH

main67113-52160iNCP91..TAIW200611-200910

67114PANEL, REAR DOOR, OUTER LH

main67114-52160iNCP91..TAIW200910

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-0D040iNCP91..IDN,MA,PH,TH200601-200903

main67407-52110iNCP91..TAIW200611-200910

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-0D040iNCP91..IDN,MA,PH,TH200601-200903

main67408-52110iNCP91..TAIW200611-200910

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-0D060iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67841-0D060iNCP91200903

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67868-0D030×22iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-0D090×22iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

67871WEATHERSTRIP, REAR DOOR, RH

main67871-0D060iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-0D100×9iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

BLUE

main67867-0D110×9iNCP91200903

PINK

67872WEATHERSTRIP, REAR DOOR, LH

main67872-0D060iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-0D060iNCP91..IDN,MA,PH,TH200601-200803

*TEM,T=3.1,GREEN

main68113-0D061iNCP91..IDN,MA,PH,TH200804-200903

*TEM,T=3.1,GREEN

main68113-0D070iNCP91..TAIW200910

*TEM,T=3.1,GREEN

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-0D060iNCP91..IDN,MA,PH,TH200601-200803

*TEM,T=3.1,GREEN

main68114-0D061iNCP91..IDN,MA,PH,TH200903-201307

*TEM,T=3.1,GREEN

main68114-0D070iNCP91..TAIW200910

*TEM,T=3.1,GREEN

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-0D060iNCP91..IDN,MA,PH,TH200601-200803

*TEM,T=3.1,GREEN

main68123-0D061iNCP91..IDN,MA,PH,TH200903-201307

*TEM,T=3.1,GREEN

main68123-0D070iNCP91..TAIW200611-200910

*TEM,T=3.1,GREEN

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-0D060iNCP91..IDN,MA,PH,TH200601-200803

*TEM,T=3.1,GREEN

main68124-0D061iNCP91..IDN,MA,PH,TH200804-200903

*TEM,T=3.1,GREEN

main68124-0D070iNCP91..TAIW200611-200910

*TEM,T=3.1,GREEN

68142CRUN, REAR DOOR GLASS, RH

main68142-0D060iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

68152CRUN, REAR DOOR GLASS, LH

main68152-0D060iNCP91200903

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-0D060iNCP91200903

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-0D060iNCP91200903

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-0D060iNCP91200903

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-0D060iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

68630DCHECK ASSY, REAR DOOR, RH

main68630-0D070iNCP91..IDN,MA,PH,TH200601-200903

main68630-0D071iNCP91..IDN,MA,PH,TH201212-201307

main68630-0D080iNCP91..TAIW200910-201207

main68630-0D081iNCP91..TAIW201207

68640ACHECK ASSY, REAR DOOR, LH

main68630-0D071iNCP91..IDN,MA,PH,TH201212-201307

main68630-0D080iNCP91..TAIW200910-201207

main68630-0D081iNCP91..TAIW201207

main68640-0D060iNCP91..IDN,MA,PH,TH200903-201212

75923TAPE, BLACK OUT, NO.2 RH

main75923-0D020iNCP91200903

75924TAPE, BLACK OUT, NO.2 LH

main75924-0D020iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

90105T0056

main90105-T0056

9010908295

main90109-08295

90109T0011

main90109-T0011

9015150016

main90151-50016

90151T0001

main90151-T0001

9015960550

main90159-60550

90159T0010

main90159-T0010

9046706084

main90467-06084

9155380612

main91553-80612

38 parts on this diagram · 2 diagrams in section
