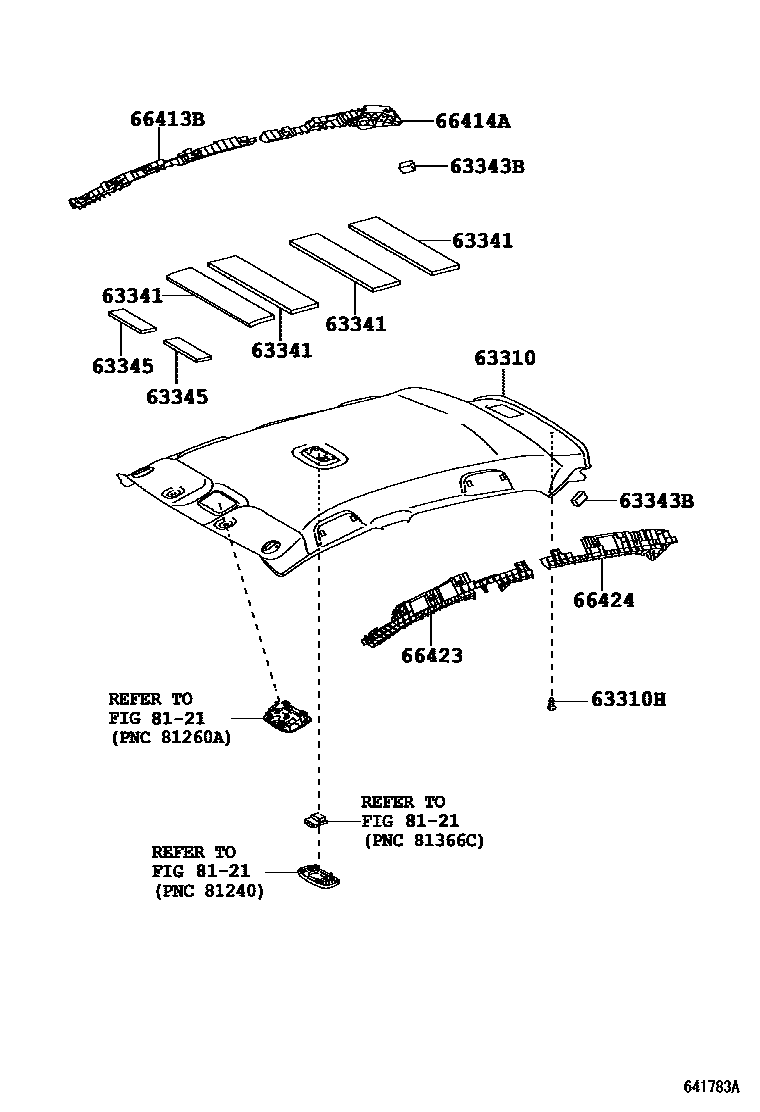

ROOF HEADLINING & SILENCER PAD

63310HEADLINING ASSY, ROOF

main63310-0D260-B0iNCP91..RHD..(E,G,J)200903-201307

GRAY,TRIM1#

main63310-0D260-B1iNCP91..RHD..S200903-201307

DK.GRAY,TRIM1#

main63310-0D300-B0iNCP91..(E,G)..TAIW; NCP91..S..TAIW200910-201409

GRAY,TRIM1#,2#; GRAY,TRIM2#

main63310-0D300-B1iNCP91..S..TAIW200611-200910

DK.GRAY,TRIM1#

63310HCLIP(FOR ROOF HEADLINING)

main90467-05164-B6×2iNCP91..(E,G)..TAIW; NCP91..S..TAIW200910-201409

GRAY,TRIM1#,2#; GRAY,TRIM2#

main90467-05164-C0×2iNCP91..RHD..S200903-201207

BLACK,TRIM1#

main90467-T0004-B1×2iNCP91..(E,G,J)..(IDN,MA,PH,TH)201208-201307

GRAY,TRIM1#

main90467-T0004-C1×2iNCP91..RHD..S201208-201307

BLACK,TRIM1#

63341PAD, ROOF SILENCER, NO.1

main63341-0D040×4iNCP91..TAIW200601-200910

63343BPAD, ROOF SILENCER, REAR

main63343-0D040×2iNCP91..TAIW200601-200910

63345PAD, ROOF SILENCER, NO.5

main63345-0D020×2iNCP91..TAIW200910

main63345-52030×2iNCP91..IDN,MA,PH,TH200601-200903

66413BSPACER, SIDE RAIL, FRONT RH

main66413-0D110iNCP91..IDN,MA,PH,TH200601-200903

main66413-0D120iNCP91..TAIW200910

66414ASPACER, SIDE RAIL, REAR RH

main66414-0D110iNCP91..IDN,MA,PH,TH200601-200903

main66414-0D120iNCP91..TAIW200611-200910

66423SPACER, SIDE RAIL, FRONT LH

main66423-0D100iNCP91..IDN,MA,PH,TH200903-201307

main66423-0D110iNCP91..TAIW200611-200910

66424SPACER, SIDE RAIL, REAR LH

main66424-0D110iNCP91..IDN,MA,PH,TH200601-200903

main66424-0D120iNCP91..TAIW200611-200910

8121INTERIOR LAMP

→ Go to FIG 81-21

10 parts on this diagram · 1 diagram in section
