INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111CBOARD, COWL SIDE TRIM, RH

main62111-0D070-B0iNCP91..IDN,MA,PH,TH200903-201307

DK.GRAY,TRIM1#

62112BOARD, COWL SIDE TRIM, LH

main62112-0D090-B0iNCP91..RHD200903-201307

DK.GRAY,TRIM1#

main62112-0D110-B0iNCP91..TAIW200910-201409

DK.GRAY,TRIM1#,2#

main62112-52170-B0iNCP91..PH200903-201307

DK.GRAY,TRIM1#

62211GARNISH, FRONT PILLAR, RH

main62211-0D080-B0supersedes 62211-0D090-B1iNCP91..(E,J)..TH;NCP91..(E,G,J)..(IDN,MA,PH); NCP91..G..TH200903-201307

GRAY,TRIM1#; SINGAPORE SPEC,GRAY,TRIM1#

main62211-0D080-B1iNCP91..S..TAIW200611-200910

DK.GRAY,TRIM1#

main62211-0D090-B0iNCP91..RHD..S200903-201307

DK.GRAY,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62212-0D080-B0supersedes 62212-0D090-B1iNCP91..(E,G)..TAIW; NCP91..S..TAIW200910-201409

GRAY,TRIM1#,2#; GRAY,TRIM2#

main62212-0D080-B1iNCP91..S..TAIW200611-200910

DK.GRAY,TRIM1#

main62212-0D090-B0iNCP91..RHD..S200903-201307

DK.GRAY,TRIM1#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-0D100iNCP91..RHD..S201205-201307

*298

main62311-0D100-B0iNCP91..S200903-201205

DK.GRAY,TRIM1#

main62311-0D100-B1iNCP91..TAIW201205-201409

GRAY,TRIM2#,*298

main62311-0D320iNCP91..IDN,MA,PH,TH201205-201307

*299

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-0D100iNCP91..RHD..S201205-201307

*298

main62312-0D100-B0iNCP91..S..TAIW201205-201409

DK.GRAY,TRIM1#,*298

main62312-0D100-B1iNCP91..TAIW201205-201409

GRAY,TRIM2#,*298

main62312-0D280iNCP91..IDN,MA,PH,TH201205-201307

*299

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-0D020iNCP91..RHD..S201205-201307

*298

main62331-0D020-B0iNCP91..S..TAIW201205-201409

DK.GRAY,TRIM1#,*298

main62331-0D020-B1iNCP91..(E,G,J)..(IDN,MA,PH,TH)201205-201307

GRAY,TRIM1#,*298

main62331-0D210iNCP91..IDN,MA,PH,TH201205-201307

*299

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-0D020iNCP91..RHD..S201205-201307

*298

main62332-0D020-B0iNCP91..ATM..S200601-200910

DK.GRAY,TRIM1#

main62332-0D020-B1iNCP91..(E,G)..TAIW200910-201205

GRAY,TRIM1#,2#

main62332-0D190iNCP91..IDN,MA,PH,TH201205-201307

*299

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-0D080-B0iNCP91..S200903-201409

DK.GRAY,TRIM1#

main62411-0D080-B1iNCP91..(E,G)..TAIW; NCP91..S..TAIW200910-201409

GRAY,TRIM1#,2#; GRAY,TRIM2#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-0D080-B0iNCP91..S200903-201409

DK.GRAY,TRIM1#

main62412-0D080-B1iNCP91..E,G,J200601-200910

GRAY,TRIM1#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0D090-B0iNCP91..IDN,MA,PH,TH200601-200903

DK.GRAY,TRIM1#

main62413-0D100-B0iNCP91..TAIW200611-200910

DK.GRAY,TRIM1#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0D090-B0iNCP91..IDN,MA,PH,TH200601-200903

DK.GRAY,TRIM1#

main62414-0D100-B0iNCP91..TAIW200910-201409

DK.GRAY,TRIM1#,2#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-0D150-B0iNCP91..E..TAIW200910-201409

GRAY,TRIM1#,2#

main62471-0D160-B0iNCP91..S200903-201409

DK.GRAY,TRIM1#

main62471-0D160-B1iNCP91..(E,G,J)..(IDN,MA,PH,TH)200903-201307

GRAY,TRIM1#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-0D180-B0iNCP91..RHD..S200903-201307

DK.GRAY,TRIM1#

main62472-0D180-B1iNCP91..(E,G,J)..(IDN,MA,PH,TH)200601-200903

GRAY,TRIM1#

main62472-0D220-B0iNCP91..S..TAIW200611-200910

DK.GRAY,TRIM1#

main62472-0D220-B1iNCP91..G..TAIW; NCP91..S..TAIW200910-201409

GRAY,TRIM1#,2#; GRAY,TRIM2#

main62472-0D240-B0iNCP91..E..TAIW200910-201409

GRAY,TRIM1#,2#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-0D110-B0iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

DK.GRAY,TRIM1#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-0D120-B0iNCP91..TAIW200910-201409

DK.GRAY,TRIM1#,2#

67917APLATE, REAR DOOR SCUFF, RH

main67917-0D070-B0iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

DK.GRAY,TRIM1#

67918APLATE, REAR DOOR SCUFF, LH

main67918-0D070-B0iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

DK.GRAY,TRIM1#

67924ACLAMP, DOOR SCUFF PLATE, NO.2

main67924-52140×2iNCP91..TAIW200601-200910

9046710161

main90467-10161

9046710167

main90467-10167

90467T0021

main90467-T0021

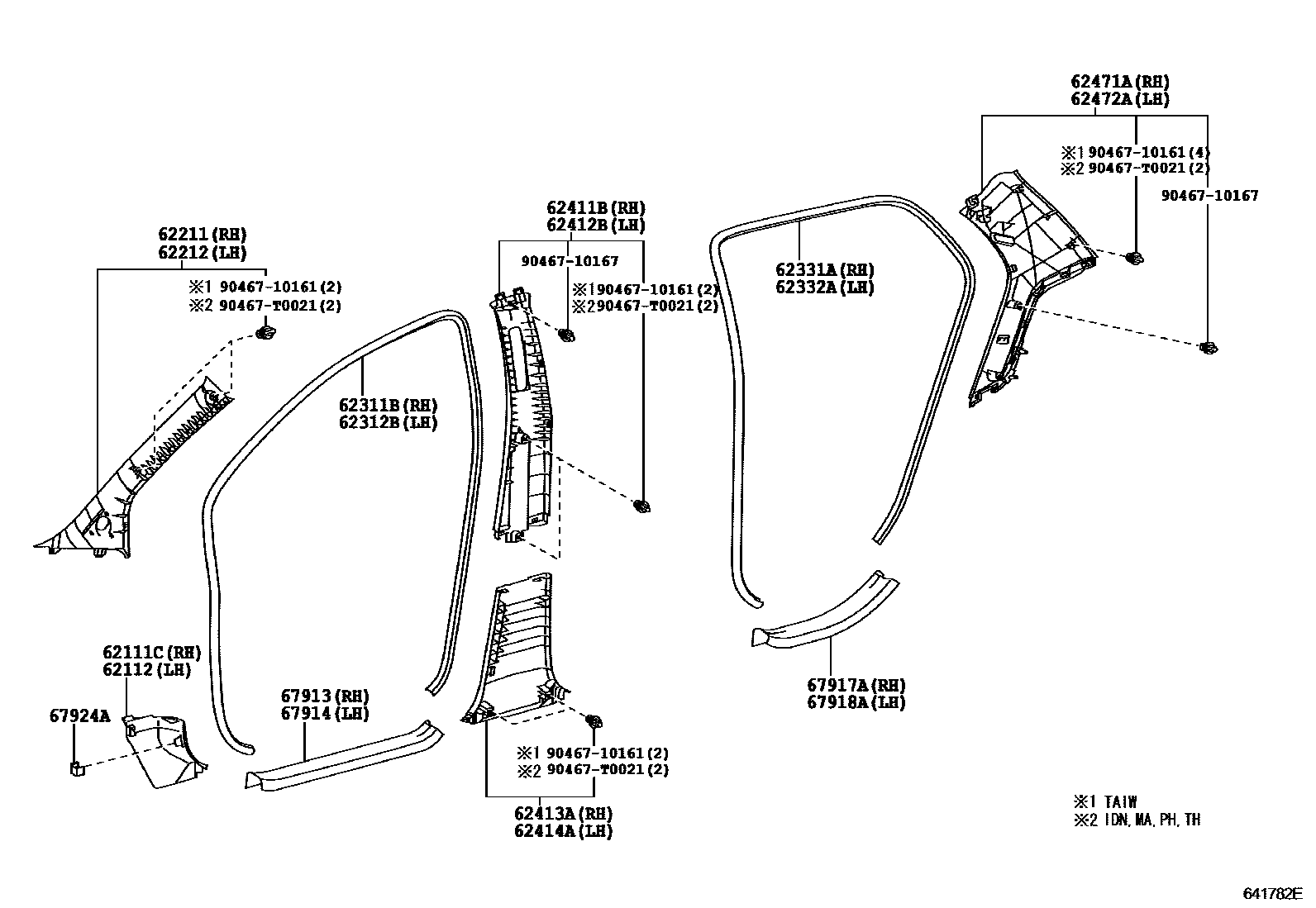

22 parts on this diagram · 1 diagram in section
