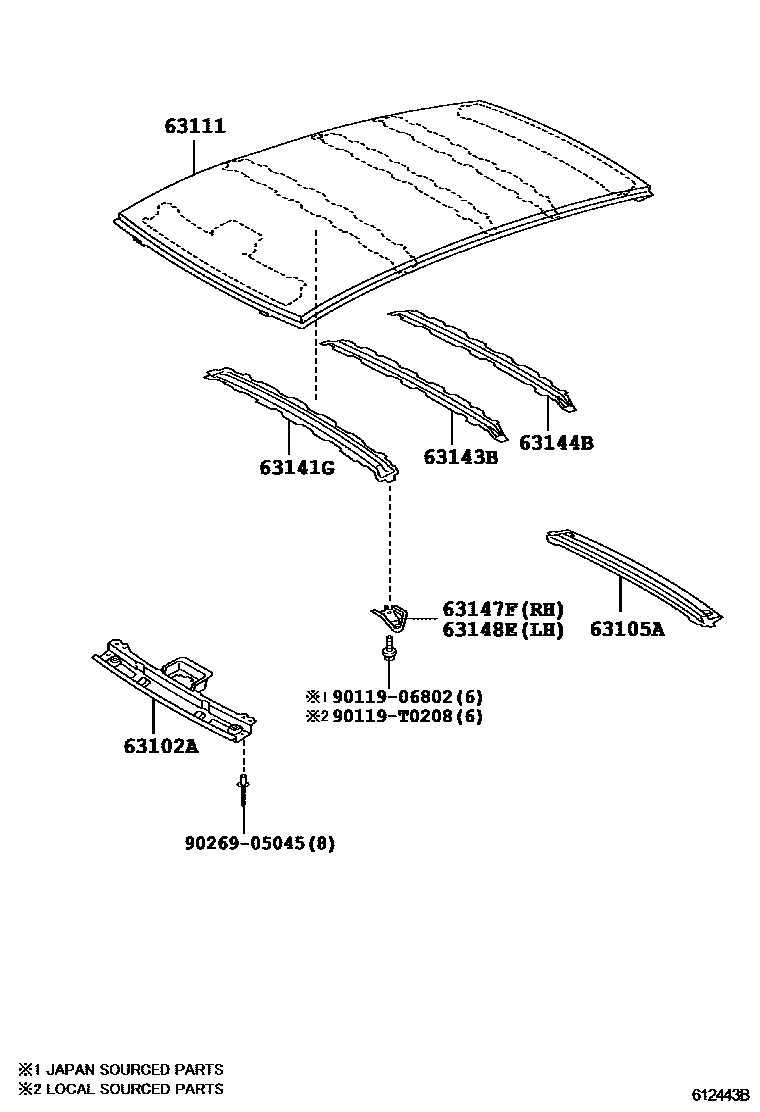

Toyota YARIS (ASIA)113 — ROOF PANEL & BACK WINDOW GLASS

63102APANEL SUB-ASSY, WINDSHIELD HEADER

63105AFRAME SUB-ASSY, BACK DOOR OPENING

63111PANEL, ROOF

63111-52230

63141GREINFORCEMENT, ROOF PANEL, NO.1

63143BREINFORCEMENT, ROOF PANEL, NO.3

63144BREINFORCEMENT, ROOF PANEL, NO.4

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

9011906802

90119-06802

90119T0208

90119-T0208

9026905045

90269-05045

11 parts on this diagram · 1 diagram in section

ROOF PANEL & BACK WINDOW GLASS for Toyota YARIS (ASIA)113

This section contains 11 genuine Toyota parts for the ROOF PANEL & BACK WINDOW GLASS system of the Toyota YARIS (ASIA)113. Key components include: PANEL SUB-ASSY, WINDSHIELD HEADER, FRAME SUB-ASSY, BACK DOOR OPENING, PANEL, ROOF, REINFORCEMENT, ROOF PANEL, NO.1, REINFORCEMENT, ROOF PANEL, NO.3.
