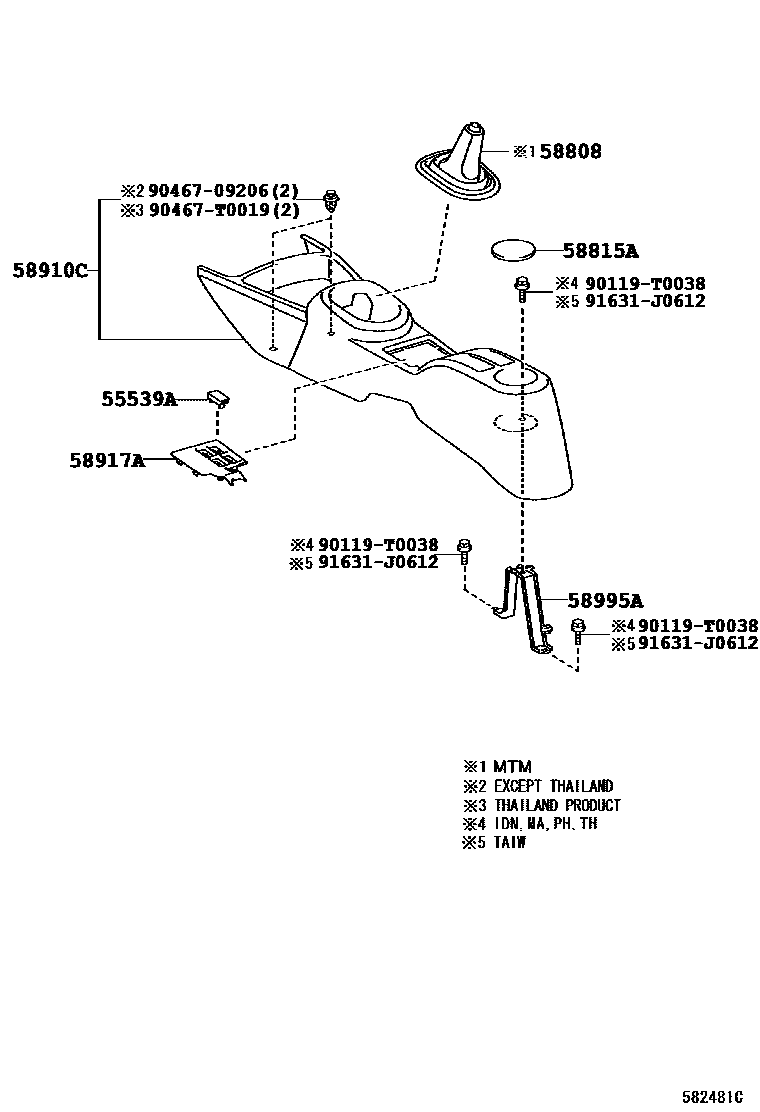

CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-0D090-B0iNCP91..IDN,MA,PH,TH200601-201307

DK.GRAY,TRIM1#

main55539-0D090-B0iNCP91..(G,S)..TH200903-201307

SINGAPORE SPEC,DK.GRAY,TRIM1#

main55539-0D090-B0iNCP91..(E,G)..TAIW200910-201409

DK.GRAY,TRIM1#,2#

main55539-0D090-B0iNCP91..(E,G)..TAIW201204-201409

DK.GRAY,TRIM2#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-52060-B1iNCP91..MTM200601-201307

DK.GRAY,TRIM1#

58815ACARPET, CONSOLE BOX

main58815-0D080iNCP91..IDN,MA,PH,TH200601-200910

58910CBOX ASSY, CONSOLE, REAR

main58910-0D020-B0iNCP91..TAIW200910-201409

DK.GRAY,TRIM1#,2#

main58910-0D020-B0iNCP91..IDN,MA,PH,TH200601-201307

DK.GRAY,TRIM1#

58917ACOVER, CONSOLE BOX, REAR

main58917-0D070-B0iNCP91..IDN,MA,PH,TH200601-201307

DK.GRAY,TRIM1#

main58917-0D070-B0iNCP91..TAIW200910-201409

DK.GRAY,TRIM1#,2#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-0D040iNCP91..IDN,MA,PH,TH200601-201307

main58995-0D050iNCP91..TAIW200701-200910

90119T0038

main90119-T0038

9046709206

main90467-09206

90467T0019

main90467-T0019

91631J0612

main91631-J0612

10 parts on this diagram · 1 diagram in section
