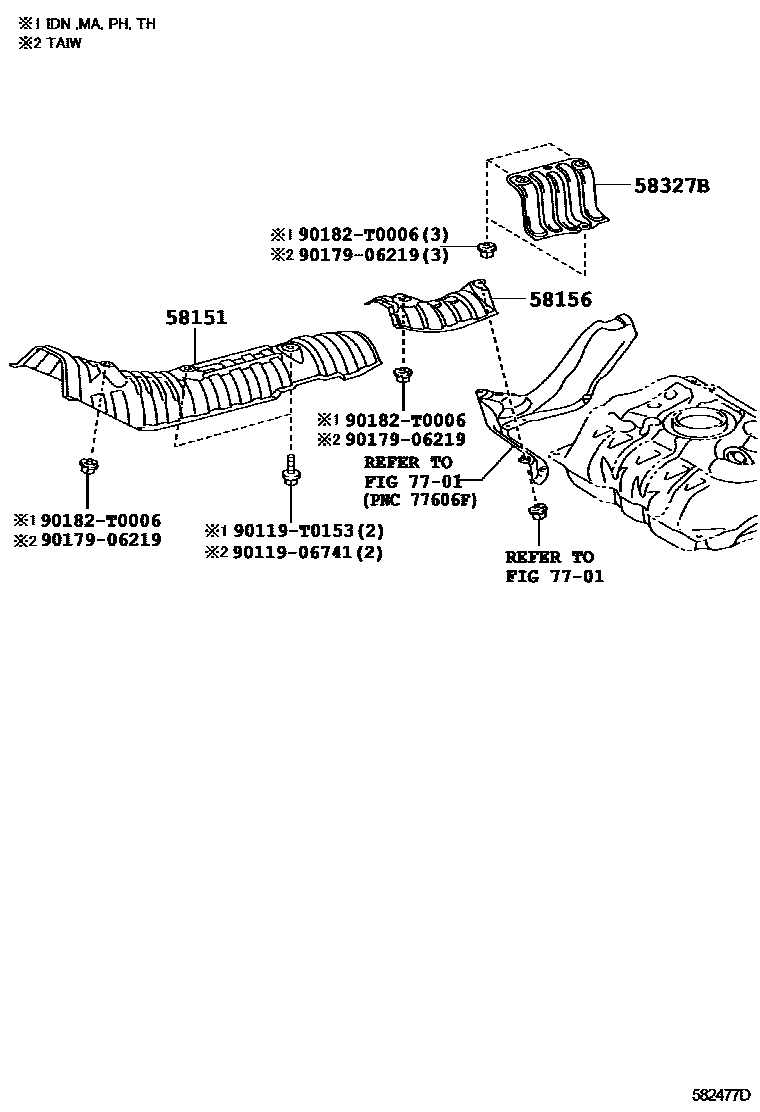

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-0D030iNCP91..IDN,MA,PH,TH200903-200912

main58151-0D031iNCP91..IDN,MA,PH,TH201001-201307

main58151-0D050iNCP91..TAIW200910-200911

main58151-0D051iNCP91..TAIW200911-201208

main58151-52062iNCP91..TAIW201209

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-52010iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0D060iNCP91..IDN,MA,PH,TH200601-200903

main58327-52110iNCP91..TAIW200611-200910

main58327-52111iNCP91..TAIW201002

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011906741

main90119-06741

90119T0153

main90119-T0153

9017906219

main90179-06219

90182T0006

main90182-T0006

8 parts on this diagram · 1 diagram in section
