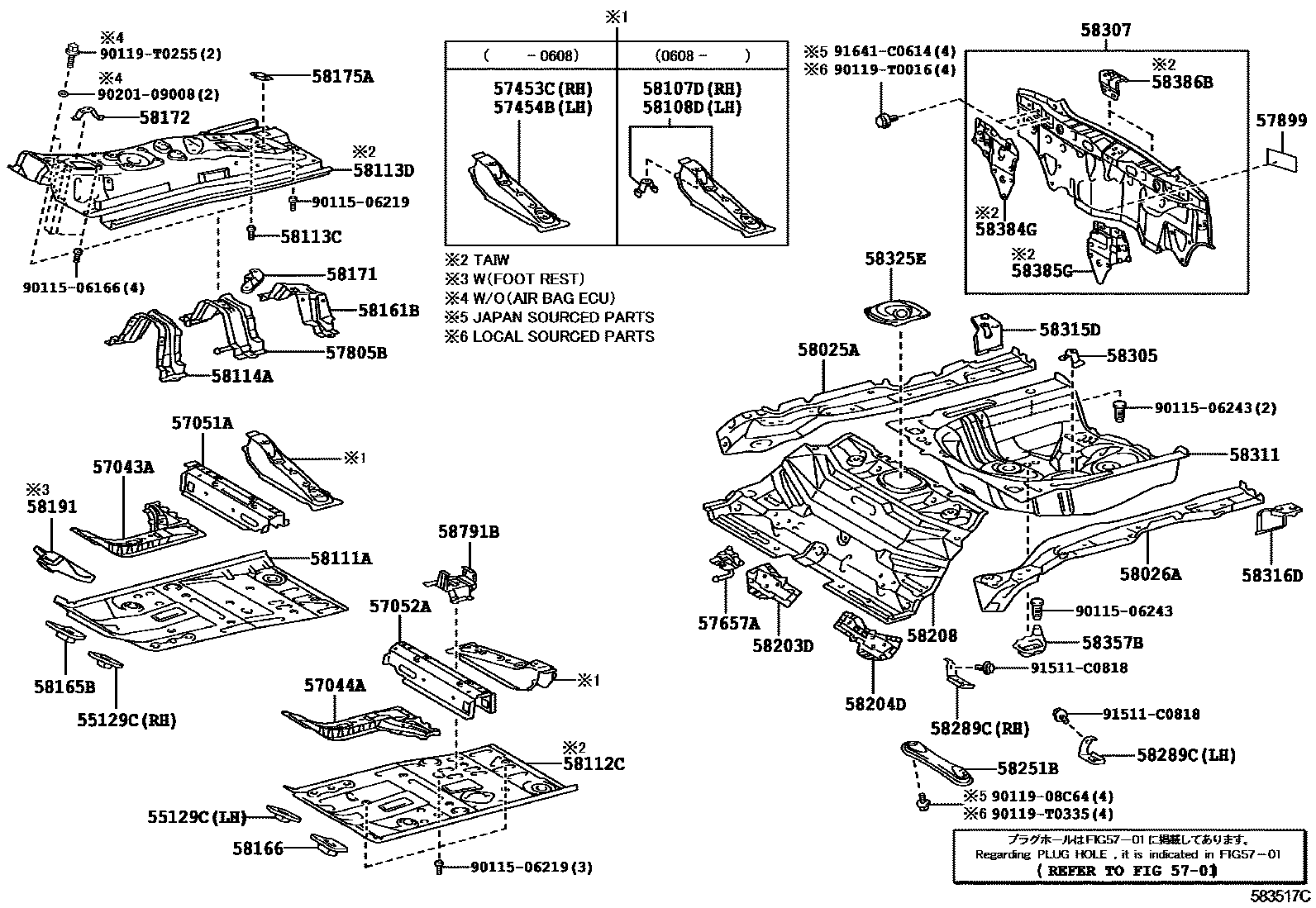

FLOOR PAN & LOWER BACK PANEL

55129CCOVER, DASH PANEL HOLE

main55129-0D110iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

RH

main55139-0D030iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

LH

5701HOLE PLUG

→ Go to FIG 57-01

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-0D020iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-0D050iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-0D020iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-0D020iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

57453CMEMBER, FRONT FLOOR CROSS SIDE, RH

main57453-0D020iNCP91200601-200608

57454BMEMBER, FRONT FLOOR CROSS SIDE, LH

main57454-0D020iNCP91200601-200608

57657ABRACKET, EXHAUST PIPE MOUNTING, NO.2

main51904-0D020iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-0D070iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

57899SEAL, REAR FLOOR, REAR

main57899-0D010iNCP91..IDN,MA,PH,TH200605-200903

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58025-0D010iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58026-0D010iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

58107DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH

main58107-0D010iNCP91200903

58108DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH

main58108-0D010iNCP91..ATM;NCP91..MTM..(E,J)200608-200910

58111APAN, FRONT FLOOR, RH

main58111-52160iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

58112CPAN, FRONT FLOOR, LH

main58112-52901iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

58113CBOLT, WELD(FOR FRONT FLOOR PANEL, CENTER)

main90115-06243×2iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

58113DPANEL, FRONT FLOOR SIDE, NO.1 RH

main58113-52910iNCP91..TAIW200611-200910

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-0D060iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-0D060iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

58165BCOVER, FRONT FLOOR, RH

main58165-0D010iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

58166COVER, FRONT FLOOR, LH

main58166-0D010iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-0D040iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

58172BRACKET, COMPUTER MOUNTING, NO.3

main58172-0D020iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58175-0D010iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

58191FOOTREST, FRONT FLOOR

main58191-0D040iNCP91..RHD200601-200903

58203DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER RH

main58203-0D010iNCP91200903

58204DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH

main58204-0D010iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

58208PAN, CENTER FLOOR

main58211-52180iNCP91..(G,S)..(MA,TH)200903-201202

main58211-52190iNCP91..E,J200903

58251BBRACE, FLOOR PANEL, FRONT

main58251-0D040×2iNCP91..IDN,MA,PH,TH200903-201307

main58251-52020×2iNCP91..TAIW200910

58289CBRACKET, FLOOR BRAKE HOSE, REAR

main58289-0D050iNCP91..IDN,MA,PH,TH200601-200903

RH

main58289-52030iNCP91..TAIW200611-200910

RH

main58289-52080iNCP91..TAIW201109

RH

main58299-0D050iNCP91..IDN,MA,PH,TH200601-200903

LH

main58299-52060iNCP91..TAIW200611-200910

LH

main58299-52100iNCP91..TAIW201109

LH

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-0D041iNCP91..IDN,MA,PH,TH200601-200903

main58351-52070iNCP91..TAIW200611-200910

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0D090iNCP91200903-201409

58311PAN, REAR FLOOR

main58311-52110iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-0D050iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-0D050iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-0D040iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

58357BBRACKET, ACTUATOR COVER, NO.3 RH

main58357-0D020iNCP91..IDN,MA,PH,TH200903-201301

main58357-0D060iNCP91..IDN,MA,PH,TH201302-201307

58384GGUSSET, LOWER BACK, UPPER RH

main58384-0D030iNCP91..TAIW200611-200910

58385GGUSSET, LOWER BACK, UPPER LH

main58385-0D060iNCP91..TAIW200910-201409

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-0D020×2iNCP91..TAIW200611-200910

58791BCARRIER, JACK

main58791-0D070iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

9011506166

main90115-06166

9011506219

main90115-06219

9011506243

main90115-06243

9011908C64

main90119-08C64

90119T0016

main90119-T0016

90119T0255

main90119-T0255

90119T0335

main90119-T0335

9020109008

main90201-09008

91511C0818

main91511-C0818

91641C0614

main91641-C0614

53 parts on this diagram · 1 diagram in section
