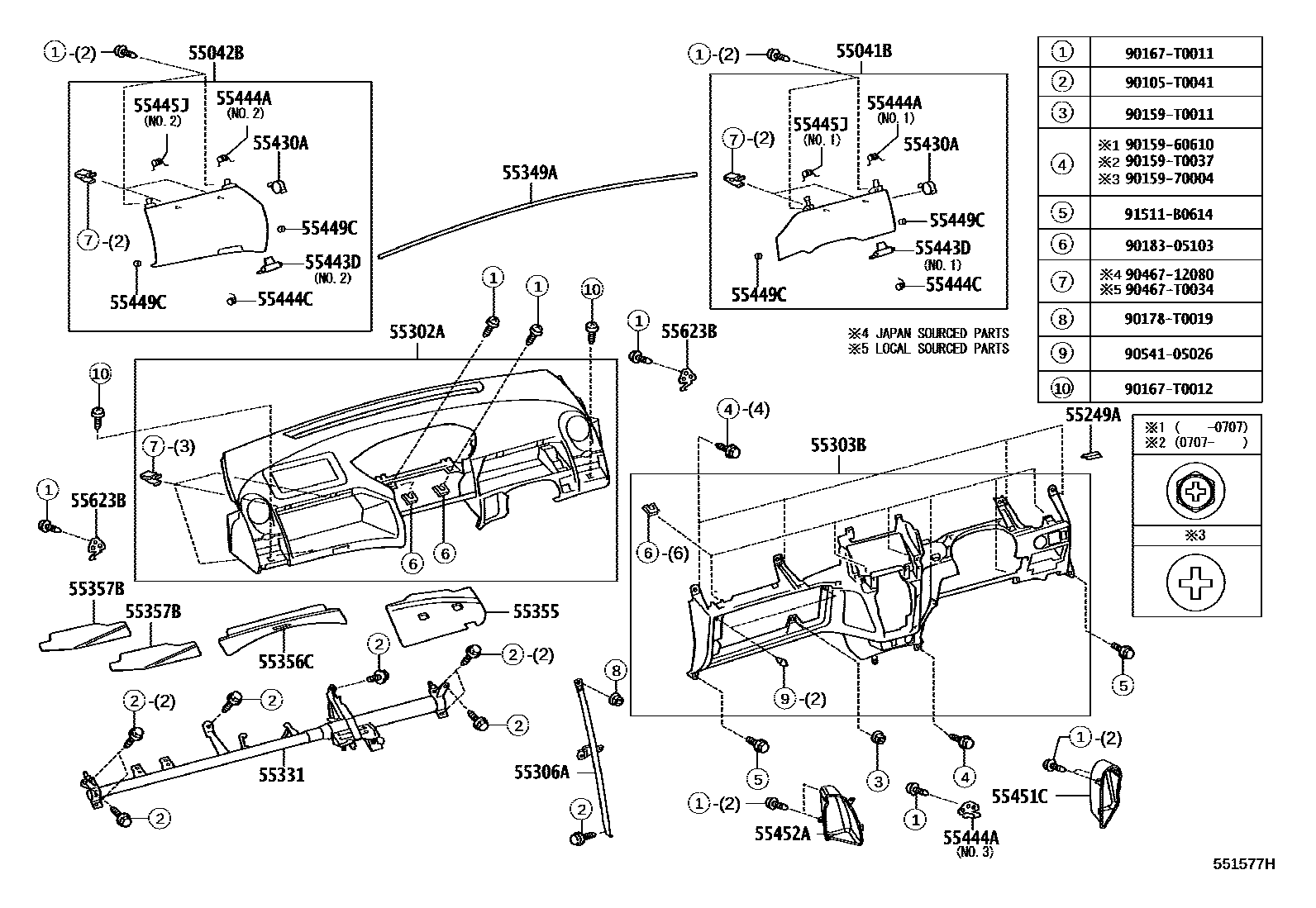

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1CENTER 0005 1PASSENGER SIDE 0006 1 0007 1DRIVER SIDE 0008 1CENTER 0009 1PASSENGER SIDE

55041BDOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1

main55041-0D030-B0iNCP91..RHD200601-201307

DK.GRAY,TRIM1#

main55041-0D040-B0iNCP91..TAIW200910-201409

DK.GRAY,TRIM1#,2#

main55041-0D040-B0iNCP91..TAIW200611-200910

DK.GRAY,TRIM1#

main55041-52010-B0iNCP91..PH200701-201307

DK.GRAY,TRIM1#

55042BDOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2

main55042-0D030-B0iNCP91..RHD200601-201307

DK.GRAY,TRIM1#

main55042-0D040-B0iNCP91..TAIW200611-200910

DK.GRAY,TRIM1#

main55042-0D040-B0iNCP91..TAIW200910-201409

DK.GRAY,TRIM1#,2#

main55042-52010-B0iNCP91..PH200701-201307

DK.GRAY,TRIM1#

55249ASEAL, FRONT PANEL

main55249-0D020iNCP91..S..TH200903-201307

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-0D040-B0iNCP91..RHD..(E,G,S)200601-201307

DK.GRAY,TRIM1#

main55302-0D060-B0iNCP91..E..TAIW200910-201409

DK.GRAY,TRIM1#,2#

main55302-0D060-B0iNCP91..E..TAIW200701-200910

DK.GRAY,TRIM1#

main55302-0D120-B0iNCP91..(G,S)..TAIW200611-200910

DK.GRAY,TRIM1#

main55302-0D120-B0iNCP91..(G,S)..TAIW200910-201409

DK.GRAY,TRIM1#,2#

main55302-0D140-B0iNCP91..J200712-201209

DK.GRAY,TRIM1#

main55302-52010-B0iNCP91..PH200701-201102

DK.GRAY,TRIM1#

sub55302-52170

main55302-52170-B0iNCP91..PH201103-201307

DK.GRAY,TRIM1#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-0D080-B0iNCP91..RHD200601-201307

DK.GRAY,TRIM1#

main55303-0D090-B0iNCP91..TAIW200910-201409

DK.GRAY,TRIM1#,2#

main55303-0D090-B0iNCP91..TAIW200611-200910

DK.GRAY,TRIM1#

main55303-52110-B0iNCP91..PH200701-201307

DK.GRAY,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0D130iNCP91..RHD200601-201307

main55306-0D140iNCP91..TAIW200611-200910

main55306-52160iNCP91..PH200701-201307

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-0D230iNCP91..J200601-201307

main55330-0D240iNCP91..TAIW200611-200910

main55330-0D330iNCP91..J200712-201209

main55330-52490iNCP91..PH200701-201307

55349ACUSHION, INSTRUMENT PANEL

main55349-0D070iNCP91..IDN,MA,PH,TH200601-201307

main55349-52060iNCP91..(G,S)..TAIW200611-200910

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-0D050iNCP91..RHD..(G,S)200601-201205

main55355-0D051iNCP91..RHD..(E,G,S)201206-201307

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-0D060iNCP91..RHD..(G,S)200601-201205

main55356-0D061iNCP91..RHD..(E,G,S)201206-201307

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-0D080iNCP91..G,S200601-200910

main55357-0D110iNCP91..RHD..(G,S)200609-201205

sub55357-0D111

main55357-0D111iNCP91..RHD..(E,G,S)201206-201307

55430ADAMPER ASSY, INSTRUMENT CLUSTER FINISH PANEL

main55430-52020iNCP91..IDN,MA,PH,TH200601-200910

55443DKNOB, INSTRUMENT PANEL BOX DOOR

main55443-0D070-B0iNCP91..RHD200601-201307

DK.GRAY,TRIM1#,NO.1

main55443-0D080-B0iNCP91..RHD200601-201307

DK.GRAY,TRIM1#,NO.2

main55443-0D090-B0iNCP91..TAIW200611-200910

DK.GRAY,TRIM1#,NO.1

main55443-0D090-B0iNCP91..TAIW200910-201409

DK.GRAY,TRIM1#,2#,NO.1

main55443-0D100-B0iNCP91..TAIW200611-200910

DK.GRAY,TRIM1#,NO.2

main55443-0D100-B0iNCP91..TAIW200910-201409

DK.GRAY,TRIM1#,2#,NO.2

main55443-52050-B0iNCP91..PH200701-201307

DK.GRAY,TRIM1#,NO.1

main55443-52070-B0iNCP91..PH200701-201307

DK.GRAY,TRIM1#,NO.2

55444ASPRING, INSTRUMENT PANEL BOX

main55444-0D190iNCP91..TAIW200611-200910

NO.1

main55444-0D200iNCP91..TAIW200611-200910

NO.2

main55444-52230iNCP91..IDN,MA,PH,TH200601-201307

NO.1

main55444-52250iNCP91..IDN,MA,TAIW,TH200601-200910

NO.3

main55444-52270iNCP91..IDN,MA,PH,TH200601-201307

NO.2

55444CSPRING, INSTRUMENT PANEL BOX

main55478-52020iNCP91200601-200910

55445JSPRING, INSTRUMENT PANEL BOX

main55445-0D090iNCP91..TAIW200611-200910

NO.1

main55445-0D100iNCP91..TAIW200611-200910

NO.2

main55445-52160iNCP91..IDN,MA,PH,TH200601-201307

NO.1

main55445-52180iNCP91..IDN,MA,PH,TH200601-201307

NO.2

55449CCUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2

main55449-28020iNCP91..IDN,MA,PH,TH200601-200910

55451CBOX, INSTRUMENT PANEL, NO.1

main55451-0D070-B0iNCP91..RHD200601-201307

DK.GRAY,TRIM1#

main55451-0D080-B0iNCP91..TAIW200910-201409

DK.GRAY,TRIM1#,2#

main55451-0D080-B0iNCP91..TAIW200611-200910

DK.GRAY,TRIM1#

55452ABOX, INSTRUMENT PANEL, NO.2

main55452-0D060-B0iNCP91..RHD200601-201307

DK.GRAY,TRIM1#

main55452-0D070-B0iNCP91..TAIW200910-201409

DK.GRAY,TRIM1#,2#

main55452-0D070-B0iNCP91..TAIW200611-200910

DK.GRAY,TRIM1#

55623BSPRING, INSTRUMENT PANEL CUP HOLDER

main55623-52020iNCP91..(G,S)..TAIW200601-200910

90105T0041

main90105-T0041

9015960610

main90159-60610

9015970004

main90159-70004

90159T0011

main90159-T0011

90159T0037

main90159-T0037

90167T0011

main90167-T0011

90167T0012

main90167-T0012

90178T0019

main90178-T0019

9018305103

main90183-05103

9046712080

main90467-12080

90467T0034

main90467-T0034

9054105026

main90541-05026

91511B0614

main91511-B0614

33 parts on this diagram · 9 diagrams in section
