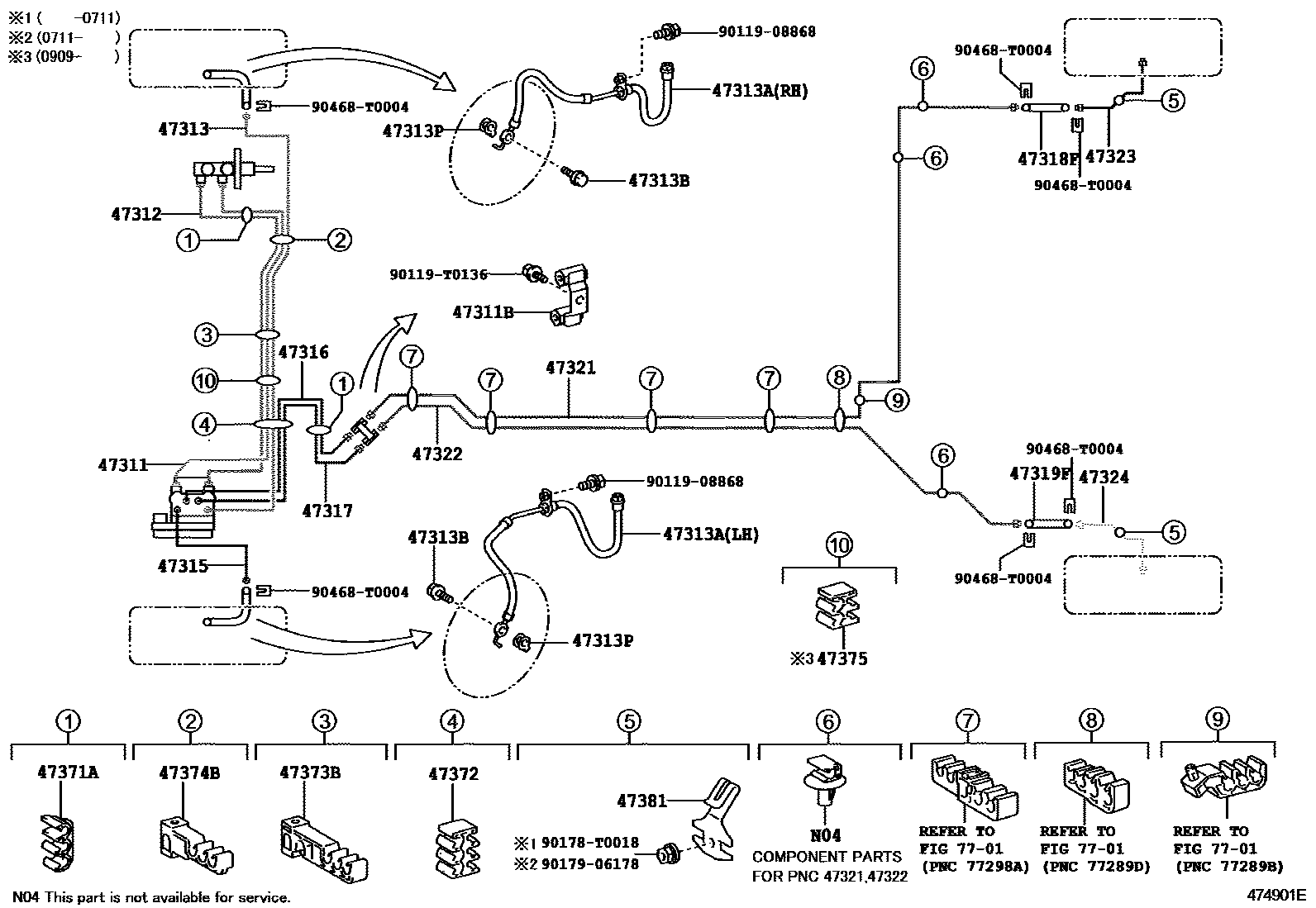

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1W(ABS) 0004 1W(ABS) 0005 1W(ABS) 0006 1W/O(ABS) 0007 1 0008 1 0009 1 0010 1W(ABS) 0012 1

47311TUBE, FRONT BRAKE, NO.1

main47311-0D210iNCP91..RHD200601-200701

main47311-0D220supersedes 47311-0D230iNCP91..(G,S)..TAIW; NCP91..E..TAIW200611-200910

ABS(ANTI-LOCK BRK SYSTM)-WITH(WITHOUT BRAKE ASSIST)

main47311-0D240iNCP91..PH200701-200903

main47311-0D250iNCP91..RHD..(E,G,S)200701-200903

main47311-0D360iNCP91..J200903-201307

main47311-0D370iNCP91..RHD..(E,G,S)200909-201307

main47311-0D380iNCP91..TAIW200910

main47311-0D410iNCP91..PH200909-201307

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10260iNCP91200903

47312TUBE, FRONT BRAKE, NO.2

main47312-0D180iNCP91..RHD200601-200701

main47312-0D190supersedes 47312-0D200iNCP91..(G,S)..TAIW; NCP91..E..TAIW200611-200910

ABS(ANTI-LOCK BRK SYSTM)-WITH(WITHOUT BRAKE ASSIST)

main47312-0D210iNCP91..PH200701-200903

main47312-0D220iNCP91..RHD..(E,G,S)200903-200909

main47312-0D300iNCP91..J200903-201307

main47312-0D310iNCP91..RHD..(E,G,S)200909-201307

main47312-0D320iNCP91..TAIW200910

main47312-0D350iNCP91..PH200909-201307

47313TUBE, FRONT BRAKE, NO.3

main47313-0D100iNCP91..RHD..(E,G,S)200601-200903

main47313-0D110supersedes 47313-0D120iNCP91..(G,S)..TAIW; NCP91..E..TAIW200611-200910

ABS(ANTI-LOCK BRK SYSTM)-WITH(WITHOUT BRAKE ASSIST)

main47313-0D130iNCP91..PH200903-200909

main47313-0D210iNCP91..J200712-200903

main47313-0D240iNCP91..RHD..(E,G,S)200909-201307

main47313-0D250iNCP91..TAIW200910

main47313-0D280iNCP91..PH200909-201307

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02E07iNCP91..TAIW200611-200910

RH

main90947-02E08iNCP91..TAIW200910

LH

main90947-T2034iNCP91..IDN,MA,PH,TH200601-200903

RH

main90947-T2035iNCP91..IDN,MA,PH,TH200601-200903

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iNCP91200601-200806

main47389-50021×2iNCP91..ATM;NCP91..MTM..(E,J)200807-200910

47315TUBE, FRONT BRAKE, NO.5

main47315-0D160iNCP91..RHD..(E,G,S)200601-200903

main47315-0D170supersedes 47315-0D180iNCP91..(G,S)..TAIW; NCP91..E..TAIW200611-200910

ABS(ANTI-LOCK BRK SYSTM)-WITH(WITHOUT BRAKE ASSIST)

main47315-0D190iNCP91..PH200701-200903

main47315-0D270iNCP91..J200712-200903

main47315-0D280iNCP91..RHD..(E,G,S)200909-201307

main47315-0D290iNCP91..TAIW200910

main47315-0D320iNCP91..PH200909-201307

47316TUBE, FRONT BRAKE, NO.6

main47316-0D110iNCP91..RHD..(E,G,S)200601-200903

main47316-0D120supersedes 47316-0D130iNCP91..(G,S)..TAIW; NCP91..E..TAIW200611-200910

ABS(ANTI-LOCK BRK SYSTM)-WITH(WITHOUT BRAKE ASSIST)

main47316-0D140iNCP91..PH200903-200909

main47316-0D200iNCP91..J200712-200903

main47316-0D210iNCP91..RHD..(E,G,S)200909-201307

main47316-0D220iNCP91..TAIW200910

main47316-0D240iNCP91..PH200909-201307

47317TUBE, FRONT BRAKE, NO.7

main47317-0D110iNCP91..RHD..(E,G,S)200601-200903

main47317-0D120supersedes 47317-0D130iNCP91..(G,S)..TAIW; NCP91..E..TAIW200611-200910

ABS(ANTI-LOCK BRK SYSTM)-WITH(WITHOUT BRAKE ASSIST)

main47317-0D140iNCP91..PH200701-200903

main47317-0D200iNCP91..J200712-200903

main47317-0D210iNCP91..RHD..(E,G,S)200909-201307

main47317-0D220iNCP91..TAIW200910

main47317-0D240iNCP91..PH200909-201307

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02E09iNCP91..TAIW200910

main90947-T2031iNCP91..IDN,MA,PH,TH200903-201307

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02E10iNCP91..TAIW200611-200910

main90947-T2032iNCP91..IDN,MA,PH,TH200601-200903

47321TUBE, REAR BRAKE, NO.1

main47321-0D140iNCP91..IDN,MA,PH,TH200601-200903

main47321-0D160iNCP91..TAIW200910-201409

47322TUBE, REAR BRAKE, NO.2

main47322-0D140iNCP91..IDN,MA,PH,TH200903-201307

main47322-0D160iNCP91..TAIW200611-200910

47323TUBE, REAR BRAKE, NO.3

main47323-0D070iNCP91..(E,G,J)..(IDN,MA,PH,TH)200903-201307

main47323-0D080iNCP91..RHD..S200903-201307

main47323-0D090supersedes 47323-0D100iNCP91..(E,G)..TAIW200611-200910

47324TUBE, REAR BRAKE, NO.4

main47324-0D070iNCP91..(E,G,J)..(IDN,MA,PH,TH)200601-200903

main47324-0D080iNCP91..RHD..S200903-201307

main47324-0D090supersedes 47324-0D100iNCP91..(E,G)..TAIW; NCP91..S..TAIW200910

S LIMITED PACKAGE

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00868iNCP91..LHD200909

47372CLAMP, BRAKE TUBE, NO.2

main90949-01969iNCP91..MTM..E;NCP91..(G,S)..TAIW;NCP91..ATM..(E,G,S)..(IDN,MA,PH,TH)200601-200910

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01C82×2iNCP91..E..TAIW; NCP91..PH;NCP91..(G,S)..TAIW200611-200910

ABS(ANTI-LOCK BRK SYSTM)-WITH(WITHOUT BRAKE ASSIST)

main90949-01D27iNCP91..RHD200601-200903

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D02iNCP91..RHD200601-200903

47375CLAMP, BRAKE TUBE, NO.5

main90464-00857iNCP91..RHD..(E,G,S)200909-201307

main90464-00883iNCP91..E..TAIW; NCP91..J;NCP91..E..TAIW; NCP91..PH;NCP91..(G,S)..TAIW200611-200910

ABS(ANTI-LOCK BRK SYSTM)-WITH(WITHOUT BRAKE ASSIST)

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-52020×2iNCP91200903
