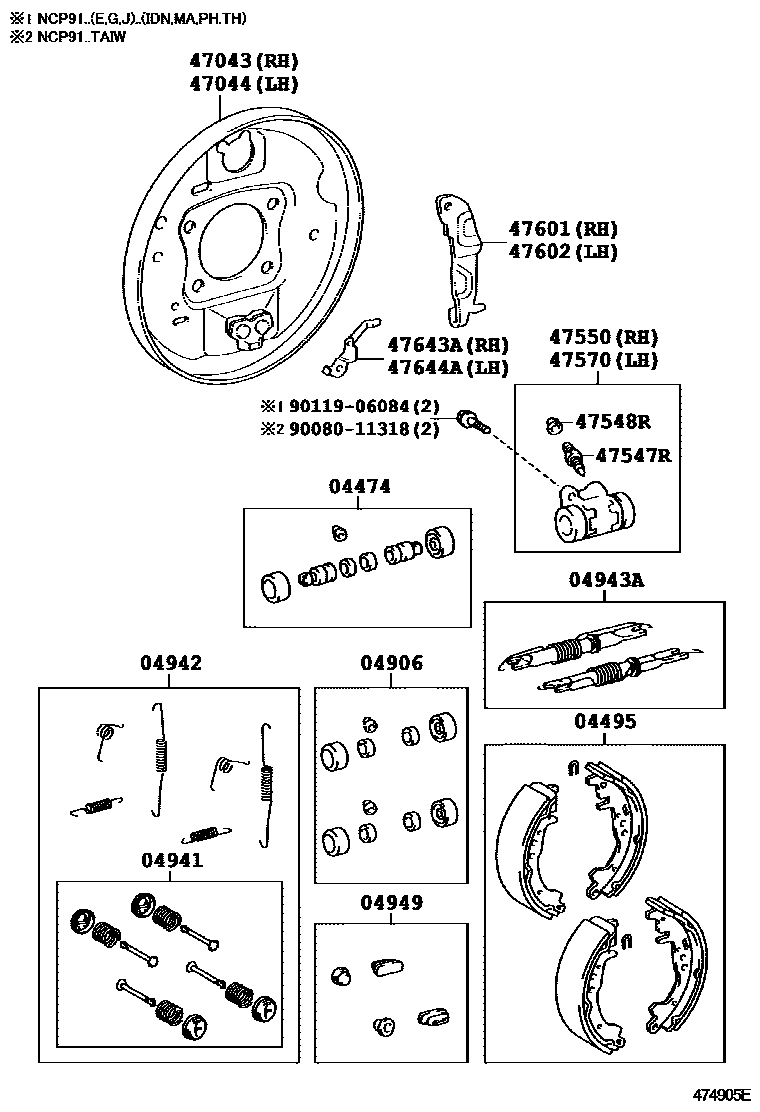

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-52020×2iNCP91..RHD..(E,G)200601-200701

04495SHOE KIT, REAR BRAKE

main04495-0D050iNCP91..(E,G)..TAIW200611-200910

MARK NBK LN521

main04495-0D060iNCP91..(E,G,J)..(IDN,MA,PH,TH)200701-200903

MARK NSA LN521

main04495-52100iNCP91..RHD..(E,G)200601-200701

MARK NBK LN521

sub04495-52140

04906CUP KIT, REAR WHEEL CYLINDER

main04906-10021iNCP91..S..TAIW200910

S LIMITED PACKAGE

main04906-42020iNCP91..RHD..(E,G)200601-200701

sub04906-20030

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-0D050iNCP91..S..TAIW200910

S LIMITED PACKAGE

main04941-0D060iNCP91..(E,G,J)..(IDN,MA,PH,TH)200701-200903

main04941-46010iNCP91..RHD..(E,G)200601-200701

04942SPRING KIT, REAR BRAKE

main04942-0D060iNCP91..S..TAIW200910

S LIMITED PACKAGE

main04942-0D070iNCP91..(E,G,J)..(IDN,MA,PH,TH)200903-201307

main04942-52050iNCP91..RHD..(E,G)200601-200701

04943ASTRUT KIT, REAR BRAKE

main04943-0D030iNCP91..S..TAIW200910

S LIMITED PACKAGE

main04943-0D040iNCP91..(E,G,J)..(IDN,MA,PH,TH)200701-200903

main04943-12010iNCP91..RHD..(E,G)200601-200701

04949PLUG KIT, REAR BRAKE

main04949-0D010iNCP91..(E,G,J)..(IDN,MA,PH,TH)200903-201307

main04949-0D030iNCP91..(E,G)..TAIW200611-200910

main04949-12010iNCP91..RHD..(E,G)200601-200701

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-0D050iNCP91..S..TAIW200910

S LIMITED PACKAGE

main47043-0D060iNCP91..(E,G,J)..(IDN,MA,PH,TH)200701-200903

main47043-52100iNCP91..RHD..(E,G)200601-200701

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-0D050iNCP91..S..TAIW200910

S LIMITED PACKAGE

main47044-0D060iNCP91..(E,G,J)..(IDN,MA,PH,TH)200701-200903

main47044-52100iNCP91..RHD..(E,G)200601-200701

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iNCP91..E,G,J200903

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iNCP91..E,G,J200903

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-0D030iNCP91..(E,G,J)..(IDN,MA,PH,TH)200903-201307

main47550-0D050iNCP91..S..TAIW200910

S LIMITED PACKAGE

main47550-20211iNCP91..RHD..(E,G)200601-200701

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-0D020iNCP91..(E,G,J)..(IDN,MA,PH,TH)200903-201307

main47570-0D030iNCP91..(E,G)..TAIW200611-200910

main47570-20101iNCP91..RHD..(E,G)200601-200701

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-0D050iNCP91..S..TAIW200910

S LIMITED PACKAGE

main47601-0D060iNCP91..(E,G,J)..(IDN,MA,PH,TH)200701-200903

main47601-52100iNCP91..RHD..(E,G)200601-200701

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-0D050iNCP91..S..TAIW200910

S LIMITED PACKAGE

main47602-0D060iNCP91..(E,G,J)..(IDN,MA,PH,TH)200701-200903

main47602-52100iNCP91..RHD..(E,G)200601-200701

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-0D050iNCP91..(E,G)..TAIW200611-200910

main47643-0D060iNCP91..(E,G,J)..(IDN,MA,PH,TH)200903-201307

main47643-47010iNCP91..RHD..(E,G)200601-200701

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-0D050iNCP91..S..TAIW200910

S LIMITED PACKAGE

main47644-0D060iNCP91..(E,G,J)..(IDN,MA,PH,TH)200701-200903

main47644-47010iNCP91..RHD..(E,G)200601-200701

9008011318

main90080-11318

9011906084

main90119-06084

19 parts on this diagram · 1 diagram in section
