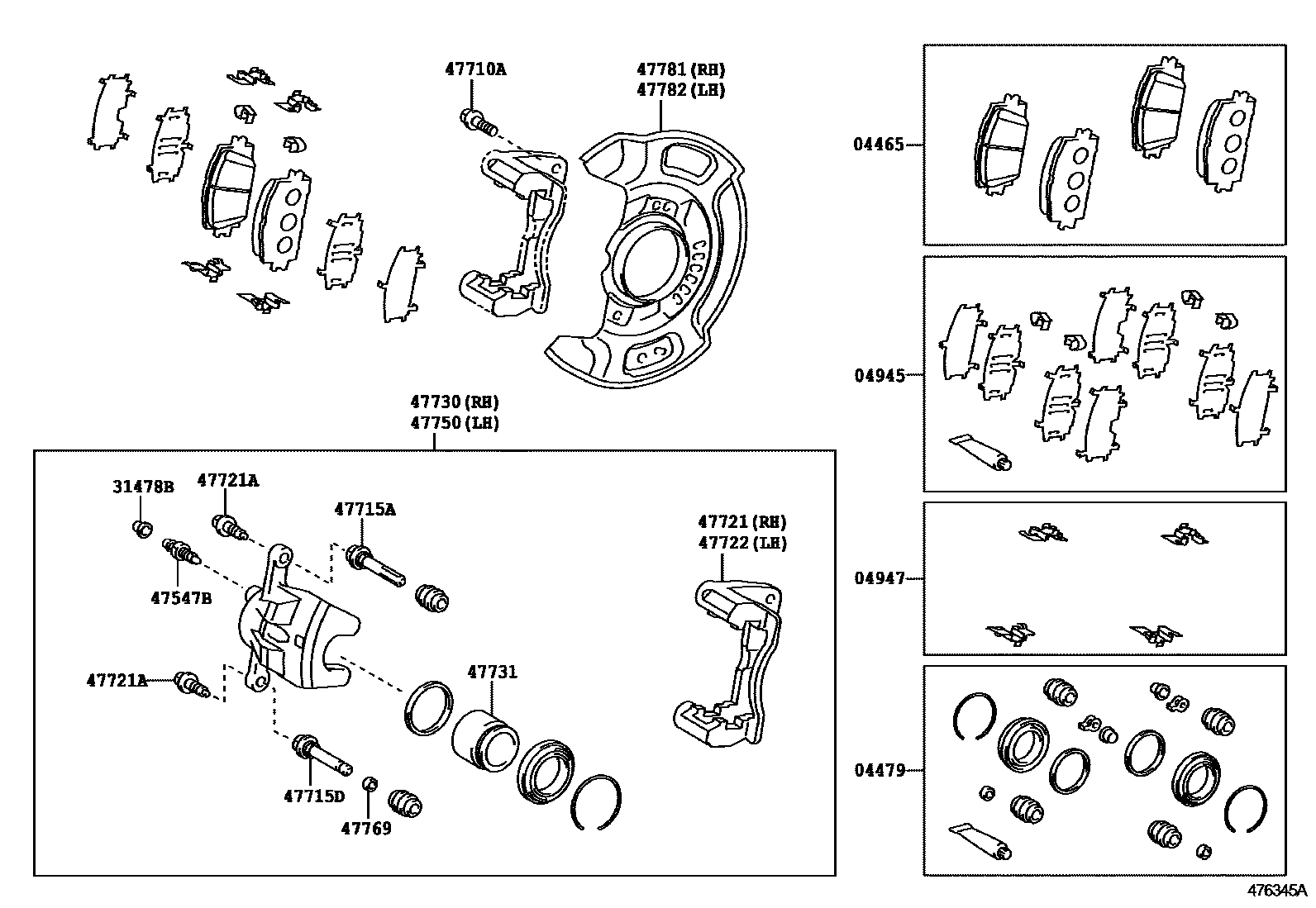

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-0D140iNCP91..(E,G,J)..(IDN,MA,PH,TH)201203-201307

MARK AK PA563H

main04465-52240iNCP91..S200601-200910

MARK ADVICS PV565H

main04465-52260iNCP91..E,G,J200601-201203

MARK AK PA563H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0D060iNCP91..(E,G)..TAIW200611-200807

sub04478-0D120

main04478-0D070iNCP91..RHD..S200701-200807

sub04478-0D140

main04478-0D080iNCP91..(E,G,J)..(IDN,MA,PH,TH)200701-200807

sub04478-0D130

main04478-0D120iNCP91..(E,G)..TAIW200910

S LIMITED PACKAGE

main04478-0D120iNCP91..(E,G)..TAIW200807-200910

main04478-0D130iNCP91..(E,G,J)..(IDN,MA,PH,TH)200807-201307

sub04478-0D131

main04478-0D140iNCP91..RHD..S200807-201307

sub04478-0D141

main04478-52070iNCP91..RHD..(E,G)200601-200701

main04478-52100iNCP91..S..TAIW200601-200807

main04478-52200iNCP91..S..TAIW200807-200910

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0D030iNCP91..S..TAIW200910

S LIMITED PACKAGE

main04945-0D030iNCP91..(E,G)..TAIW200611-200910

main04945-0D040iNCP91..RHD..S200701-201307

main04945-0D050iNCP91..(E,G,J)..(IDN,MA,PH,TH)200701-201307

main04945-52120iNCP91..S..TAIW200601-200910

main04945-52130iNCP91..RHD..(E,G)200601-200701

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0D030iNCP91..IDN,MA,PH,TH200701-201307

main04947-42050iNCP91..TAIW200601-200910

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0D040iNCP91..IDN,MA,PH,TH200701-201307

main31478-30010iNCP91..TAIW200601-200910

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-0D030iNCP91..IDN,MA,PH,TH201104-201307

main47547-20010iNCP91..ATM;NCP91..MTM..(E,J)200601-201104

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12352iNCP91..ATM;NCP91..MTM..(E,J)200601-201409

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-06250iNCP91..(E,G)..TAIW200910-201409

S LIMITED PACKAGE

main47715-06250iNCP91..(E,G)..TAIW200611-200910

main47715-52190iNCP91..S..TAIW;NCP91..IDN,MA,PH,TH200601-200910

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-06080iNCP91..(E,G)..TAIW200910-201003

S LIMITED PACKAGE

main47715-06080iNCP91..(E,G)..TAIW200611-200910

main47715-06250iNCP91..S..TAIW201004

S LIMITED PACKAGE

main47715-12A10iNCP91..S..TAIW200611-201409

main47715-22070iNCP91..IDN,MA,PH,TH200601-201104

main47715-33340iNCP91..IDN,MA,PH,TH201104-201307

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-0D080iNCP91..(E,G)..TAIW200611-200910

main47721-0D080iNCP91..(E,G)..TAIW200910

S LIMITED PACKAGE

main47721-0D100iNCP91..(E,G,J)..(IDN,MA,PH,TH)200701-201307

main47721-0D110iNCP91..RHD..S200701-201307

main47721-52191iNCP91..RHD..(E,G)200601-200701

main47721-52211iNCP91..S..TAIW200601-200910

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA603iNCP91..IDN,MA,PH,TH200701-201307

*8-1.00PX23-15

main90080-10247iNCP91..S..TAIW200611-200910

*8-1.00PX23-15

main90080-10247iNCP91..(E,G)..TAIW200910

*8-1.00PX23-15,S LIMITED PACKAGE

main90105-08164iNCP91..S..TAIW200601-200910

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-0D080iNCP91..(E,G)..TAIW200910

S LIMITED PACKAGE

main47722-0D080iNCP91..(E,G)..TAIW200611-200910

main47722-0D100iNCP91..(E,G,J)..(IDN,MA,PH,TH)200701-201307

main47722-0D110iNCP91..RHD..S200701-201307

main47722-52191iNCP91..RHD..(E,G)200601-200701

main47722-52211iNCP91..S..TAIW200601-200910

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0D080iNCP91..(E,G)..TAIW200611-200910

main47730-0D080iNCP91..(E,G)..TAIW200910

S LIMITED PACKAGE

main47730-0D100iNCP91..(E,G,J)..(IDN,MA,PH,TH)200701-201307

main47730-0D110iNCP91..RHD..S200701-201307

main47730-52191iNCP91..RHD..(E,G)200601-200701

main47730-52211iNCP91..S..TAIW200601-200910

47731PISTON, FRONT DISC BRAKE

main47731-0D100iNCP91..(E,G,J)..(IDN,MA,PH,TH)200701-201307

main47731-0D110iNCP91..RHD..S200701-201307

main47731-52190iNCP91..(E,G)..TAIW200601-200910

main47731-52190iNCP91..(E,G)..TAIW200910

S LIMITED PACKAGE

main47731-52210iNCP91..S..TAIW200601-200910

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0D080iNCP91..S..TAIW200910

S LIMITED PACKAGE

main47750-0D080iNCP91..(E,G)..TAIW200611-200910

main47750-0D100iNCP91..(E,G,J)..(IDN,MA,PH,TH)200701-201307

main47750-0D110iNCP91..RHD..S200701-201307

main47750-52191iNCP91..RHD..(E,G)200601-200701

main47750-52211iNCP91..S..TAIW200601-200910

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-06030iNCP91..(E,G)..TAIW200910

S LIMITED PACKAGE

main47769-06030iNCP91..(E,G)..TAIW200611-200910

main47769-06040iNCP91..IDN,MA,PH,TH200701-201307

sub47769-0K220

main47769-50010iNCP91..S..TAIW200601-200910

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0D060iNCP91..TAIW200611-201409

main47781-0D070iNCP91..IDN,MA,PH,TH200701-201307

sub47781-52030

main47781-52030iNCP91..RHD200601-200701

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-0D060iNCP91..TAIW200611-201409

main47782-0D070iNCP91..IDN,MA,PH,TH200701-201307

sub47782-52030

main47782-52030iNCP91..RHD200601-200701

18 parts on this diagram · 1 diagram in section
