Toyota YARIS (ASIA)113 — STEERING WHEEL

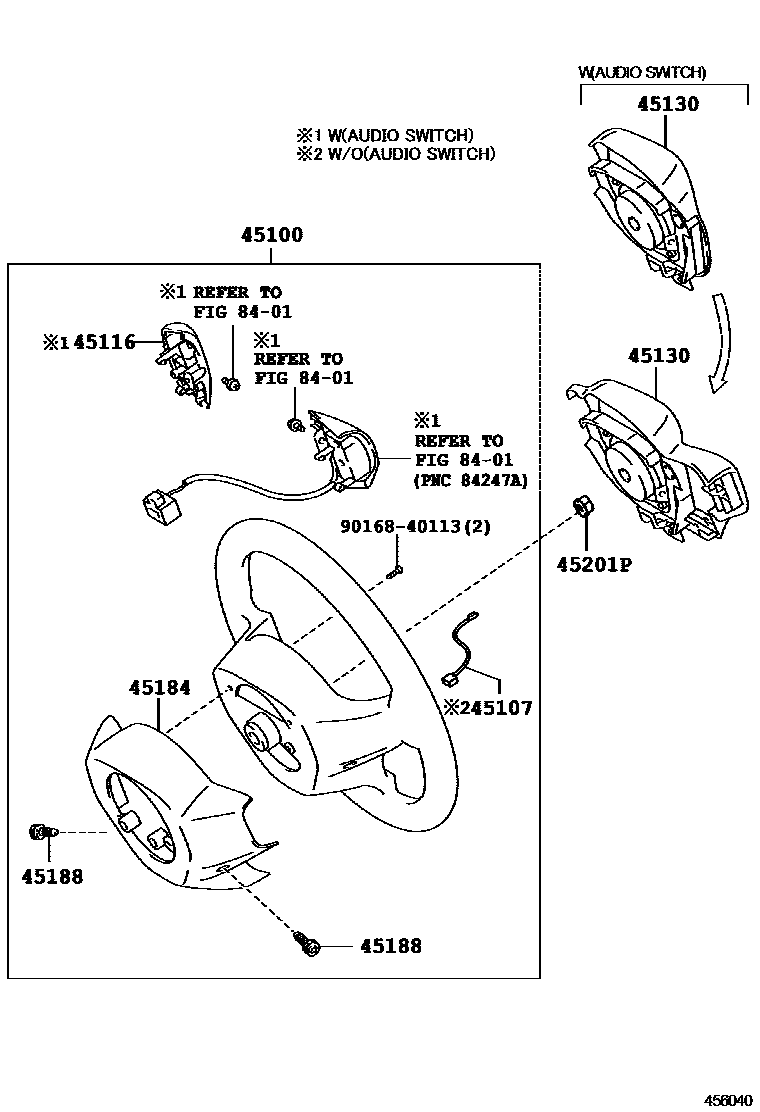

Parts diagram

45100WHEEL ASSY, STEERING

45107WIRE SUB-ASSY, HORN BUTTON

45116ORNAMENT, STEERING WHEEL, NO.1

45130BUTTON ASSY, HORN

45184COVER, STEERING WHEEL BOSS, LOWER

45188SCREW, STEERING WHEEL PAD ATTACHING

45201PNUT, STEERING WHEEL SET

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9016840113

9 parts on this diagram · 3 diagrams in section

STEERING WHEEL for Toyota YARIS (ASIA)113

This section contains 13 genuine Toyota parts for the STEERING WHEEL system of the Toyota YARIS (ASIA)113. Key components include: WHEEL ASSY, STEERING, WIRE SUB-ASSY, HORN BUTTON, ORNAMENT, STEERING WHEEL, NO.1, ORNAMENT, STEERING WHEEL, NO.2, BUTTON ASSY, HORN.
