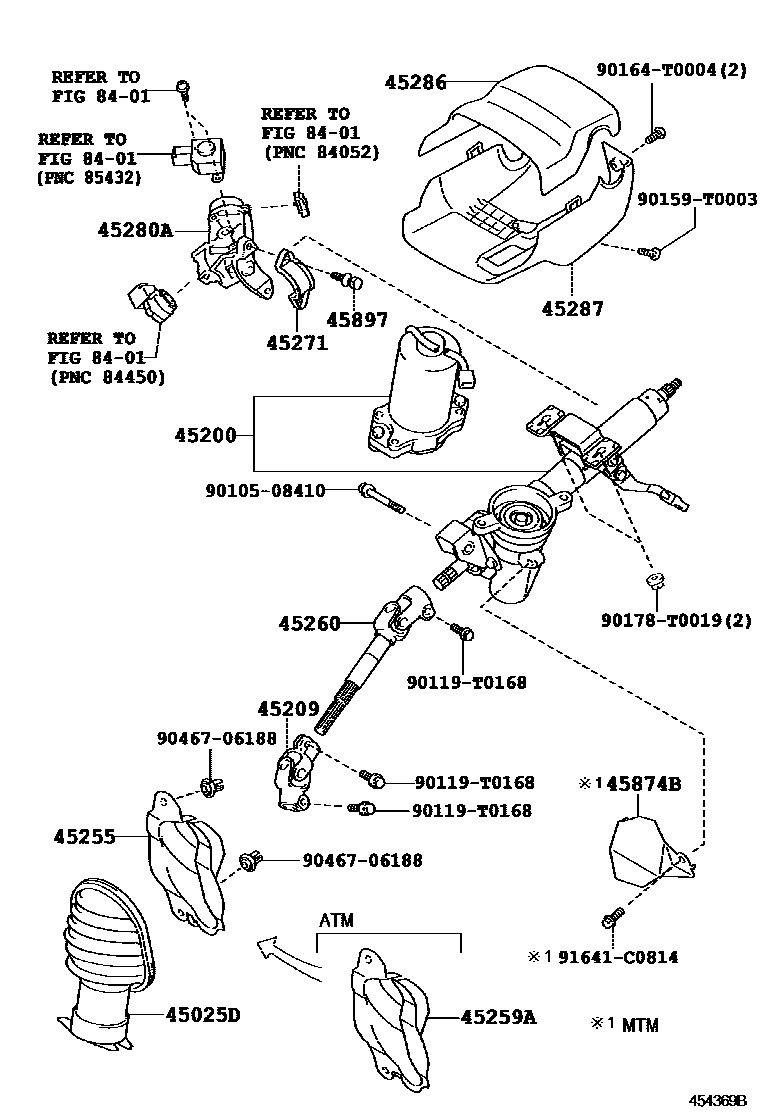

STEERING COLUMN & SHAFT

0001 1 0002 1W(SMART KEY SYSTEM) 0003 1 0004 1W(SMART KEY SYSTEM)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0D110iNCP91..IDN,MA,PH,TH200601-200903

main45025-0D130iNCP91..TAIW200910

45200POST ASSY, STEERING

main45200-0D250iNCP91..RHD200702-200903

main45200-0D251iNCP91..MTM..S;NCP91..S..(MA,TH);NCP91..RHD..(E,G,J)200903-201005

main45200-0D252iNCP91..S..MA;NCP91..MTM..S;NCP91..RHD..(E,G,J)201006-201307

main45200-0D270iNCP91..PH200703-200903

main45200-0D271iNCP91..PH200903-201005

main45200-0D272iNCP91..PH201006-201307

main45200-52260iNCP91..RHD200601-200701

main45200-52310iNCP91..TAIW200611-200712

main45200-52311supersedes 45200-52501iNCP91..(E,G)..TAIW; NCP91..S..TAIW200910

S LIMITED PACKAGE

main45200-0D260iNCP91..G..TH; NCP91..S..IDN200702-200903

G LIMITED; S LIMITED(INDONESIA)

main45200-0D261supersedes 45200-0D262iNCP91..ATM..S..IDN; NCP91..S..TH200903-201005

S LIMITED PACKAGE(THAILAND)

main45200-0D262iNCP91..S..TH201006-201202

S LIMITED PACKAGE(THAILAND)

main45200-52270supersedes 45200-0D262iNCP91..G..TH; NCP91..S..IDN200601-200701

G LIMITED; S LIMITED(INDONESIA)

main45200-52500supersedes 45200-52501iNCP91..G..TAIW; NCP91..S..TAIW200611-200712

G LIMITED; WIRELESS DOOR LOCK-SMART KEY:FRONT(D) & BACK W(PUSH START)

main45200-52501iNCP91..G..TAIW; NCP91..S..TAIW200801-200910

G LIMITED; WIRELESS DOOR LOCK-SMART KEY:FRONT(D) & BACK W(PUSH START)

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-0D030iNCP91..IDN,MA,PH,TH200601-200903

45255PLATE, STEERING COLUMN HOLE COVER

main45255-0D050iNCP91..RHD..MTM200903-201307

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-0D030iNCP91..RHD..ATM200601-200903

main45259-0D060iNCP91..TAIW200910

main45259-0D070iNCP91..PH200701-200903

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-0D080iNCP91..RHD200903-201307

main45260-0D090iNCP91..LHD200903

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030iNCP91..IDN,MA,PH,TH200601-200903

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-06070iNCP91..(E,G)..TAIW; NCP91..S..TAIW200910

S LIMITED PACKAGE

main45280-06080iNCP91..S..TH200903-201202

main45280-06100iNCP91..MTM200701-200903

main45280-22510iNCP91..RHD..ATM200601-200701

main45280-52090iNCP91..MTM200601-200701

45286COVER, STEERING COLUMN

main45286-0D080-B0iNCP91..IDN,MA,PH,TH200601-200903

DK.GRAY,TRIM1#

main45286-52929-B0iNCP91..TAIW200611-200902

DK.GRAY,TRIM1#

main45286-52934-B0iNCP91..(E,G)..TAIW; NCP91..S..TAIW200910-201409

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,2#

45287COVER, STEERING COLUMN, LWR

main45287-0D050-B0iNCP91..IDN,MA,PH,TH200903-201307

DK.GRAY,TRIM1#

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-0D030iNCP91..RHD..MTM200701-200901

main45874-52020iNCP91..MTM200601-200701

45897BOLT, STEERING LOCK SET

main45897-12020×2iNCP91..IDN,MA,PH,TH200601-200903

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508410

main90105-08410

90119T0168

main90119-T0168

90159T0003

main90159-T0003

90164T0004

main90164-T0004

90178T0019

main90178-T0019

9046706188

main90467-06188

91641C0814

main91641-C0814

20 parts on this diagram · 4 diagrams in section
