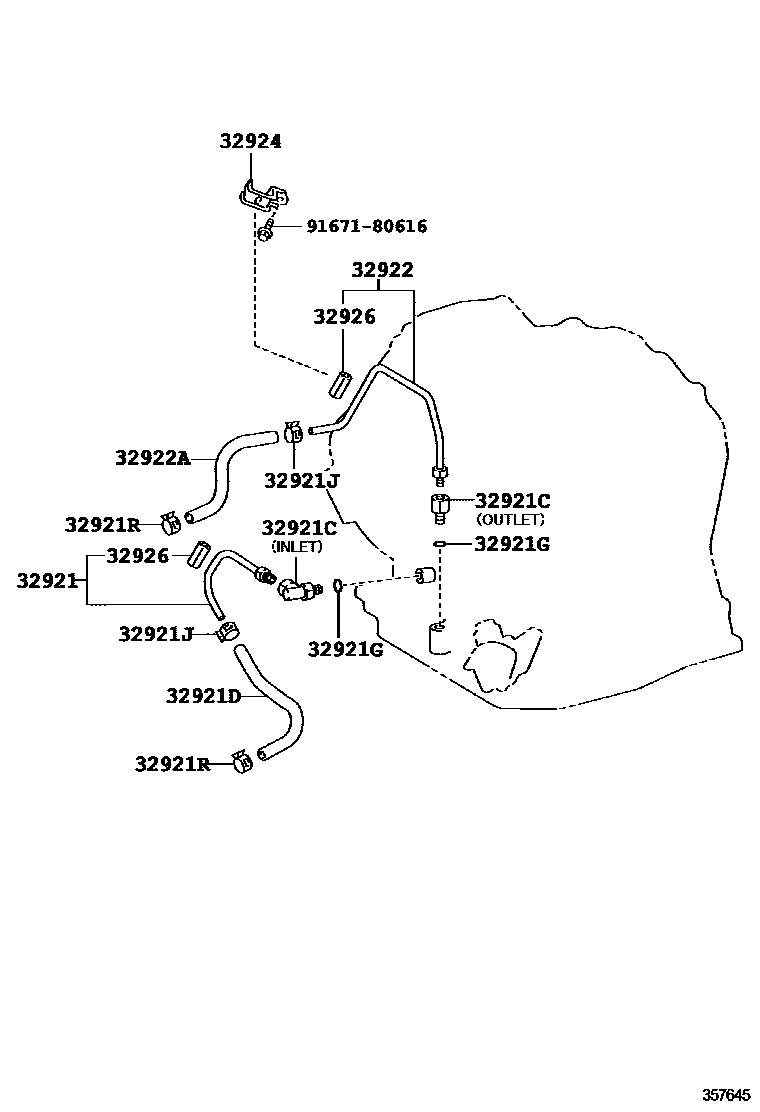

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-0D020iNCP91..TAIW200910

main32921-0D030iNCP91..ATM..(IDN,MA,PH,TH)200601-200903

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iNCP91..ATM200903

OUTLET

main90407-14003iNCP91..ATM200903

INLET

32921DHOSE(FOR OIL COOLER INLET)

main90080-44132iNCP91..ATM..(IDN,MA,PH,TH)200903-201307

main90445-15046iNCP91..TAIW200910

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10018×2iNCP91201307

main90301-10189×2iNCP91..ATM200601-200910

32921JCLIP(FOR OIL COOLER HOSE)

main90466-T0009×2iNCP91..ATM..(IDN,MA,PH,TH)200904-201004

main96135-51300×2iNCP91..TAIW200903-201003

main96137-41501×2iNCP91..ATM..(IDN,MA,PH,TH)201005

32921RCLIP, NO.2(FOR OIL COOLER HOSE)

main90466-T0009×2iNCP91..ATM..(IDN,MA,PH,TH)200904-201307

main96135-51300×2iNCP91..ATM..(IDN,MA,PH,TH)200903-200904

main96137-41501×2iNCP91..TAIW201004

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-0D020iNCP91..TAIW200611-200910

main32922-0D030iNCP91..ATM..(IDN,MA,PH,TH)200903-201307

32922AHOSE(FOR OIL COOLER OUTLET)

main90080-44133iNCP91..ATM..(IDN,MA,PH,TH)200601-200903

main90445-15044iNCP91..TAIW200611-200910

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-52010iNCP91..ATM200601-200910

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-10010×2iNCP91..ATM200601-200910

L=30,ID=8

9167180616

main91671-80616

11 parts on this diagram · 1 diagram in section
