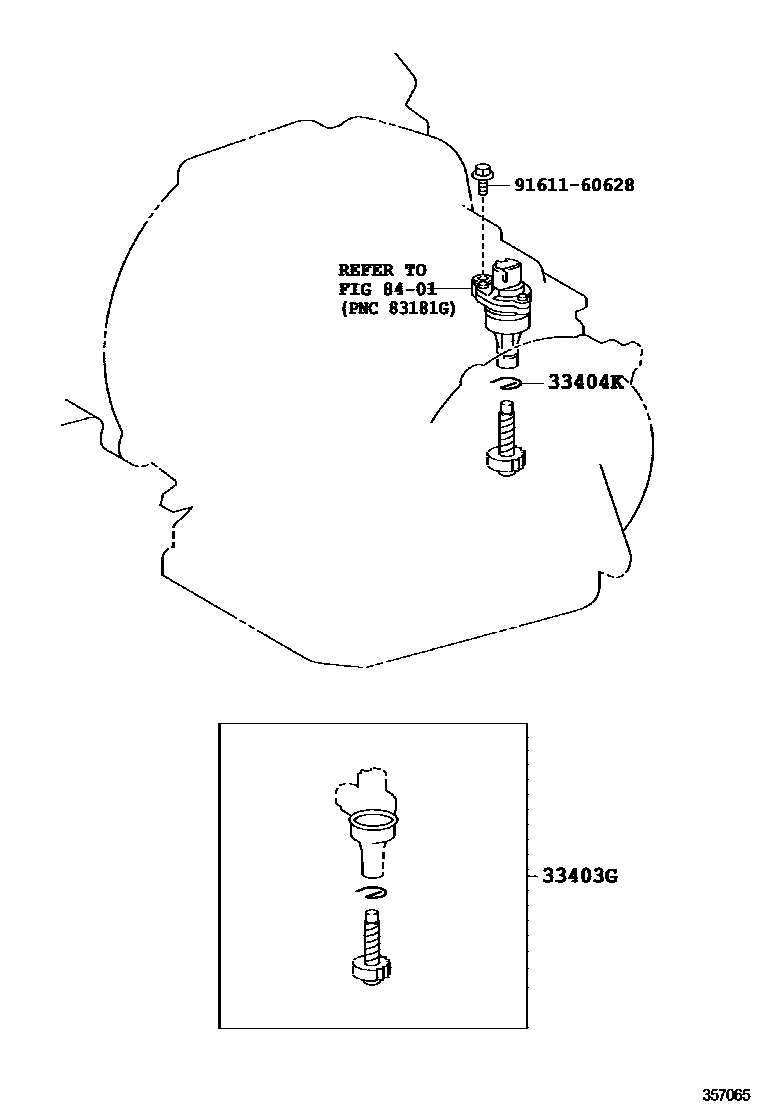

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29525iNCP91..ATM..J;NCP91..(G,S)..TAIW200611-200910

N=21,MARK 21:25

main33403-59015iNCP91..E..TAIW200611-200910

N=22,MARK 22:25

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iNCP91..TAIW;NCP91..ATM..J200611-200910

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9161160628

main91611-60628

4 parts on this diagram · 1 diagram in section
