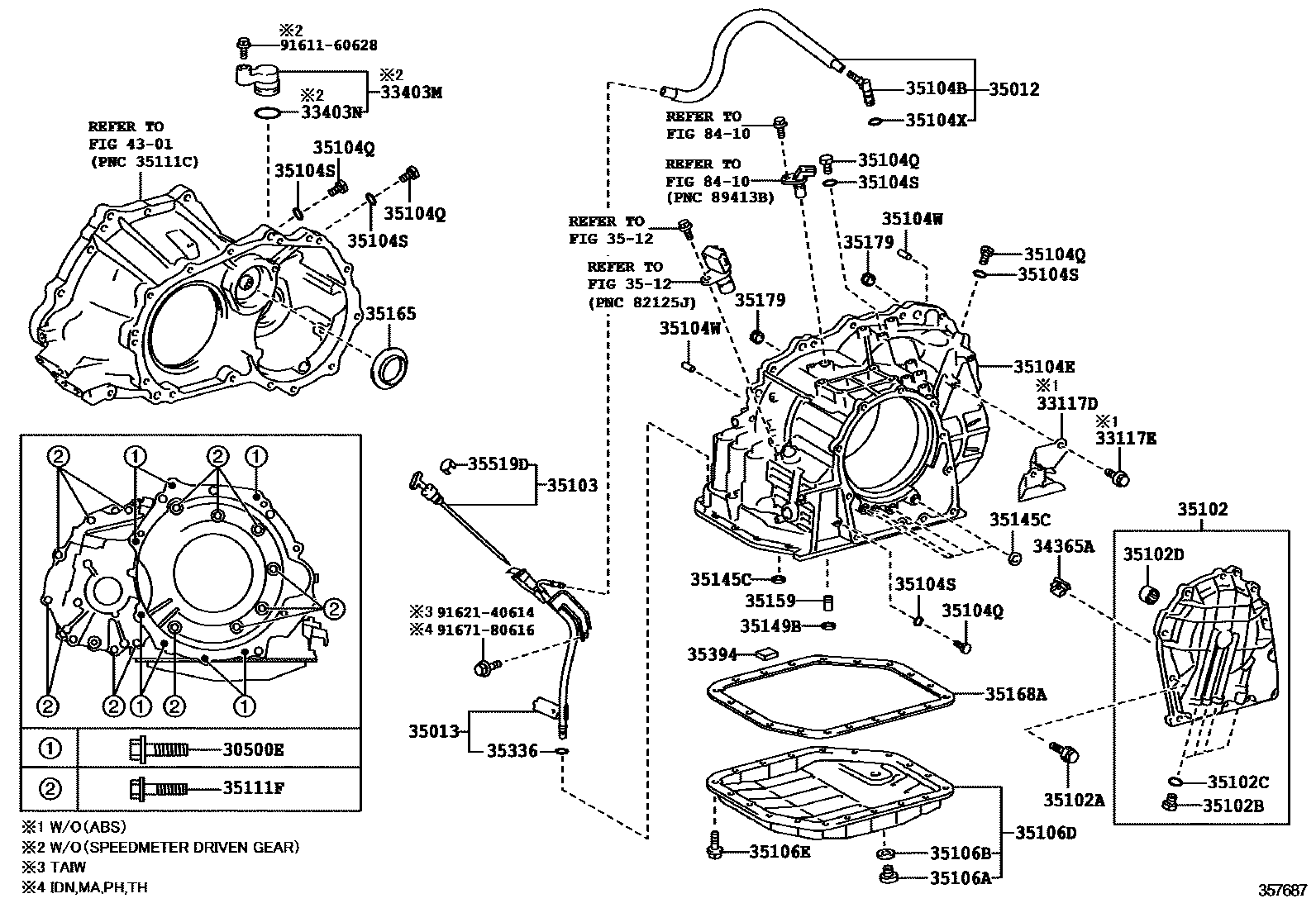

TRANSMISSION CASE & OIL PAN (ATM)

0001 1U340E 0002 1U340E

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90119-T0068×7iNCP91..ATM200601-200603

*10-1.25PX50-30

main90119-T0225×7iNCP91..ATM..(IDN,MA,PH,TH)200603-200903

*10-1.25PX45-30

main91612-61045×7iNCP91..TAIW200611-200910

*10-1.25PX45-30

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-0D020iNCP91..E..TAIW200611-200910

main33117-0D030iNCP91..ATM..J200903-201307

main33117-52030iNCP91..ATM..J200712-200903

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90119-T0070×2iNCP91..ATM..J200712-200903

main91651-B0820×2iNCP91..E..TAIW200611-200910

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-0D010iNCP91..ATM..(E,G,S)..(IDN,MA,PH,TH)200702-200903

main33403-20230iNCP91..TAIW200910

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main90301-T0044iNCP91..ATM..(E,G,S)..(IDN,MA,PH,TH)200702-200903

main96711-24018iNCP91..TAIW200910

34365ARETAINER, OUTER RACE

main34365-52012iNCP91..ATM200601-200910

35012HOSE SUB-ASSY, TRANSMISSION BREATHER

main35012-12010iNCP91..ATM200601-200910

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-0D040iNCP91..ATM..(IDN,MA,PH,TH)200601-200903

main35013-0D050iNCP91..TAIW200611-200910

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-52020iNCP91..ATM200601-200910

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08365×11iNCP91..ATM200601-200910

*8-1.25PX28-20

35102BPLUG(FOR TRANSAXLE REAR COVER)

main90341-08001×4iNCP91..ATM200601-200910

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90301-06196×4iNCP91..ATM200601-200910

35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)

main90364-14007iNCP91..ATM200601-200910

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-0D040iNCP91..ATM..(IDN,MA,PH,TH)200601-200903

main35103-0D050iNCP91..TAIW200611-200910

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03166iNCP91..ATM200601-200910

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-52031iNCP91..ATM200601-200910

main35104-52032iNCP91..ATM201003

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×5iNCP91..ATM200601-200910

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×5iNCP91..ATM200601-200910

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017×2iNCP91..ATM200601-200910

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iNCP91..ATM200601-200910

main90301-06021iNCP91201307

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18016iNCP91..ATM200601-200910

35106BGASKET, DRAIN PLUG (ATM)

main90430-18008iNCP91..ATM200601-200910

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-52020iNCP91..ATM200601-200910

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×19iNCP91..ATM200601-200910

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08071×14iNCP91..ATM200601-200910

*8-1.25PX30-25

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

35145CGASKET, TRANSAXLE CASE

main35145-21010×5iNCP91..ATM200601-200910

35149BGASKET, TRANSAXLE CASE 2ND BRAKE

main35149-21010iNCP91..ATM200601-200910

35159GASKET, BRAKE DRUM

main35159-21010iNCP91..ATM200601-200910

35165PLATE, TRANSMISSION CASE, NO.1

main35165-52030iNCP91..ATM200601-200910

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-52020iNCP91..ATM200601-200910

35179GASKET, OVERDRIVE BRAKE

main35179-32010×2iNCP91..ATM200601-200910

main90301-06008×2iNCP91..ATM201003-201307

main90301-06024×2iNCP91201307

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iNCP91..ATM200601-200910

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iNCP91..ATM200601-200910

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-41010iNCP91..ATM200601-200910

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9161160628

main91611-60628

9162140614

main91621-40614

9167180616

main91671-80616

40 parts on this diagram · 2 diagrams in section
