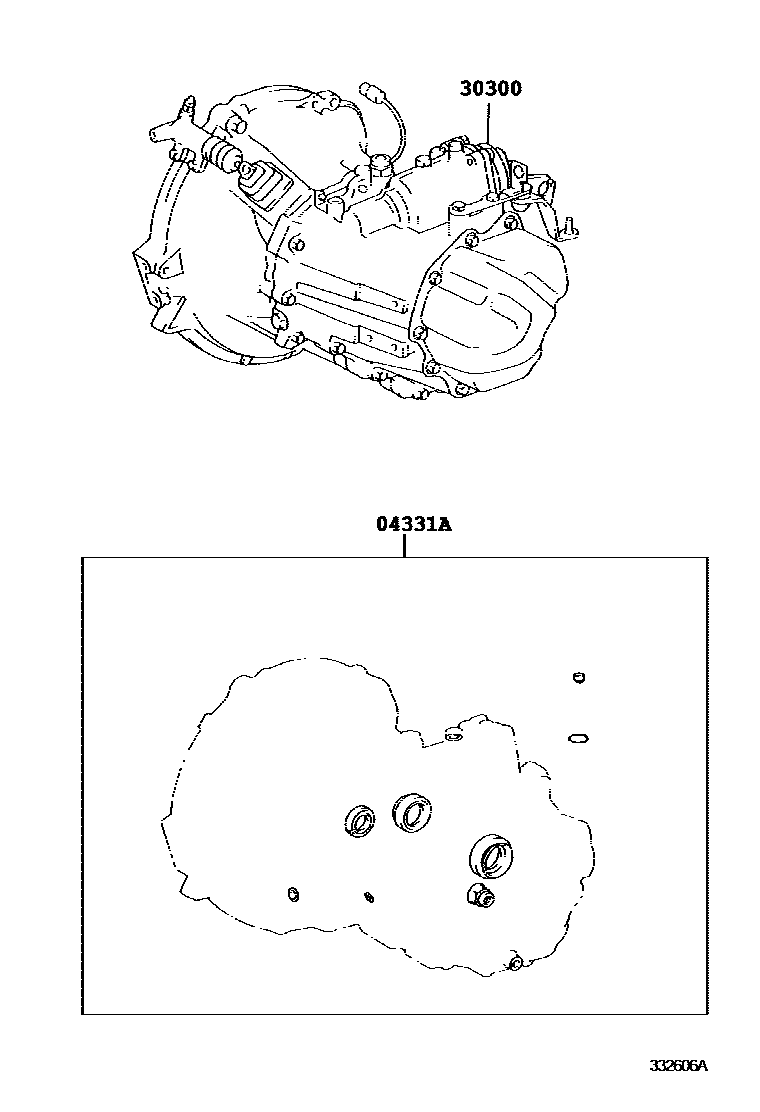

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-12690iNCP91..MTM200811-200903

main04331-12691iNCP91..MTM201010-201102

main04331-12810iNCP91..MTM201102-201307

main04331-52520iNCP91..MTM200601-200811

30300TRANSAXLE ASSY, MANUAL

main30300-52470iNCP91..MTM200601-200811

C50

main30300-52760iNCP91..MTM200811-200903

C50

sub30300-52761

2 parts on this diagram · 1 diagram in section
