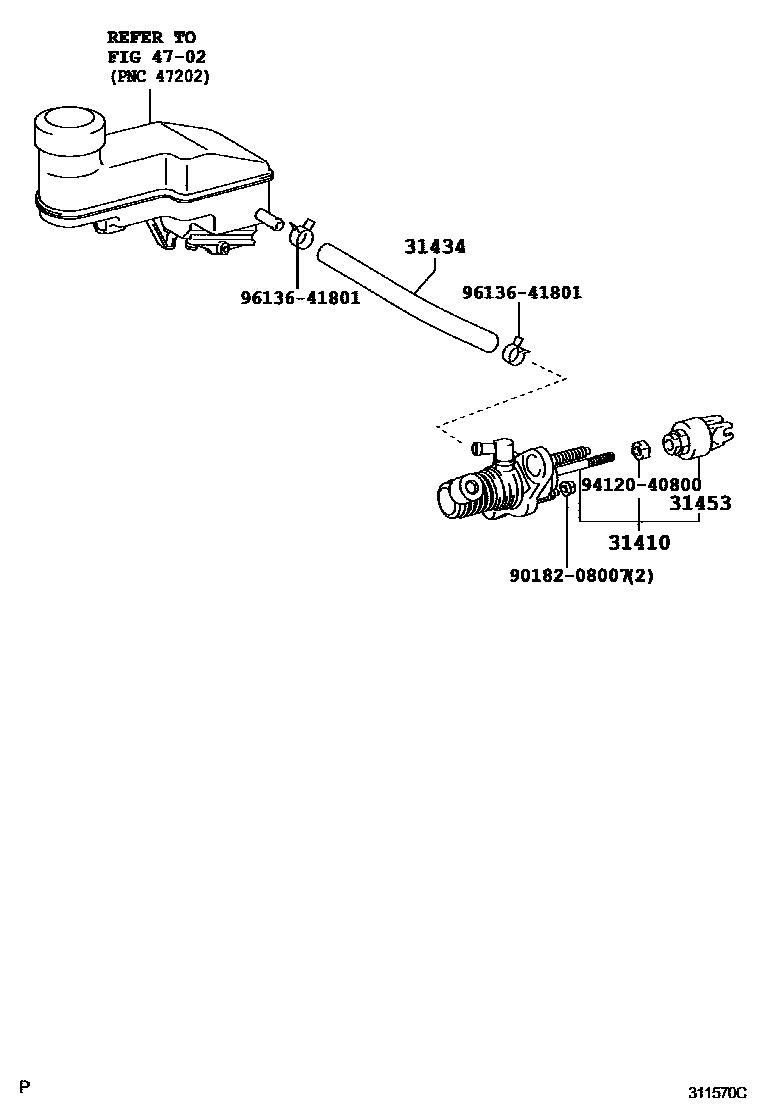

CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-0D130iNCP91..RHD..MTM200701-200903

main31420-0D150iNCP91..MTM..PH200701-200903

main31420-52060iNCP91..MTM200601-200612

31434TUBE, CLUTCH RESERVOIR

main31434-52140iNCP91..RHD..MTM200903-201307

main31434-52150iNCP91..MTM..PH200701-200903

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-0D020iNCP91..RHD..MTM200701-200903

main31404-0D030iNCP91..MTM..PH200701-200903

main31404-52010iNCP91..MTM200601-200701

4702

9018208007

main90182-08007

9412040800

main94120-40800

9613641801

main96136-41801

7 parts on this diagram · 1 diagram in section
