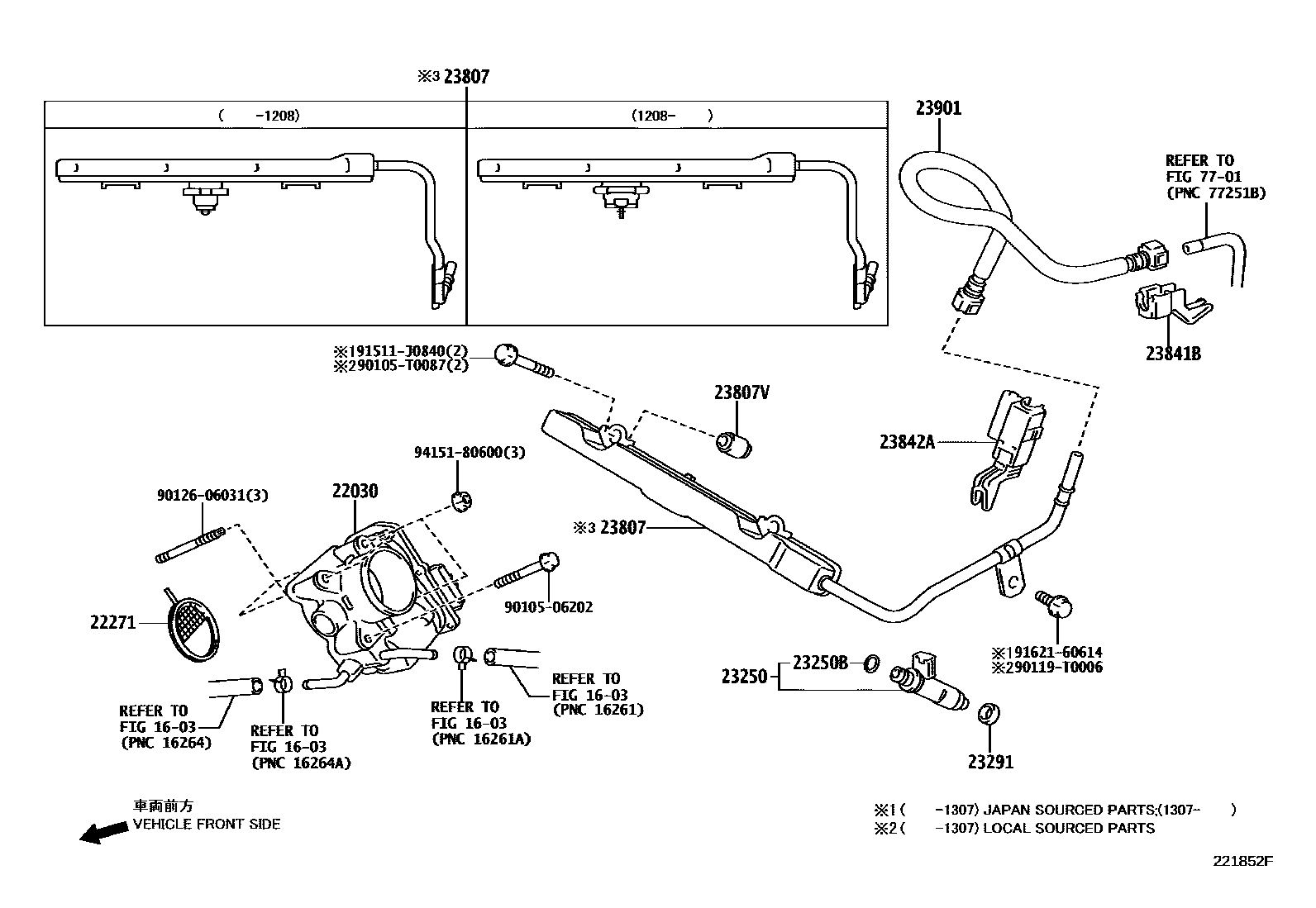

FUEL INJECTION SYSTEM

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0M010i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200703-200910

(L)

main22030-21030i1NZFE..NCP91200601-200703

22271GASKET, THROTTLE BODY

main22271-21060i1NZFE..NCP91200903

23250INJECTOR ASSY, FUEL

main23209-0M010×4i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

(L)

main23209-21040×4i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

(J)

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024×4i1NZFE..NCP91200601-200607

main90301-07037×4i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200607-200910

23291INSULATOR, INJECTOR VIBRATION

main23291-0H020×4i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200703-200910

(L)

main23291-41010×4i1NZFE..NCP91200601-200703

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-21050i1NZFE..NCP91200601-200612

main23807-21051i1NZFE..NCP91..IDN,MA,PH,TH200612-200711

main23807-21070i1NZFE..NCP91..IDN,MA,PH200903-200911

main23807-21090i1NZFE..NCP91201209

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-21010×2i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i1NZFE..NCP91..RHD..MTM..E;1NZFE..NCP91..RHD..ATM..(E,G,S)200701-200910

main23841-28010i1NZFE..NCP91..RHD200601-200612

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-21040i1NZFE..NCP91..TAIW200906-200910

main23841-37090i1NZFE..NCP91201302

main23842-21010i1NZFE..NCP91..IDN,MA,PH,TH200903-200906

23901TUBE SUB-ASSY, FUEL

main23901-0M010i1NZFE..NCP91..IDN,MA,PH,TH200701-200903

(L)

main23901-21110i1NZFE..NCP91..RHD200601-200701

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9010506202

main90105-06202

90105T0087

main90105-T0087

90119T0006

main90119-T0006

9012606031

main90126-06031

91511J0840

main91511-J0840

9162160614

main91621-60614

9415180600

main94151-80600

19 parts on this diagram · 1 diagram in section
