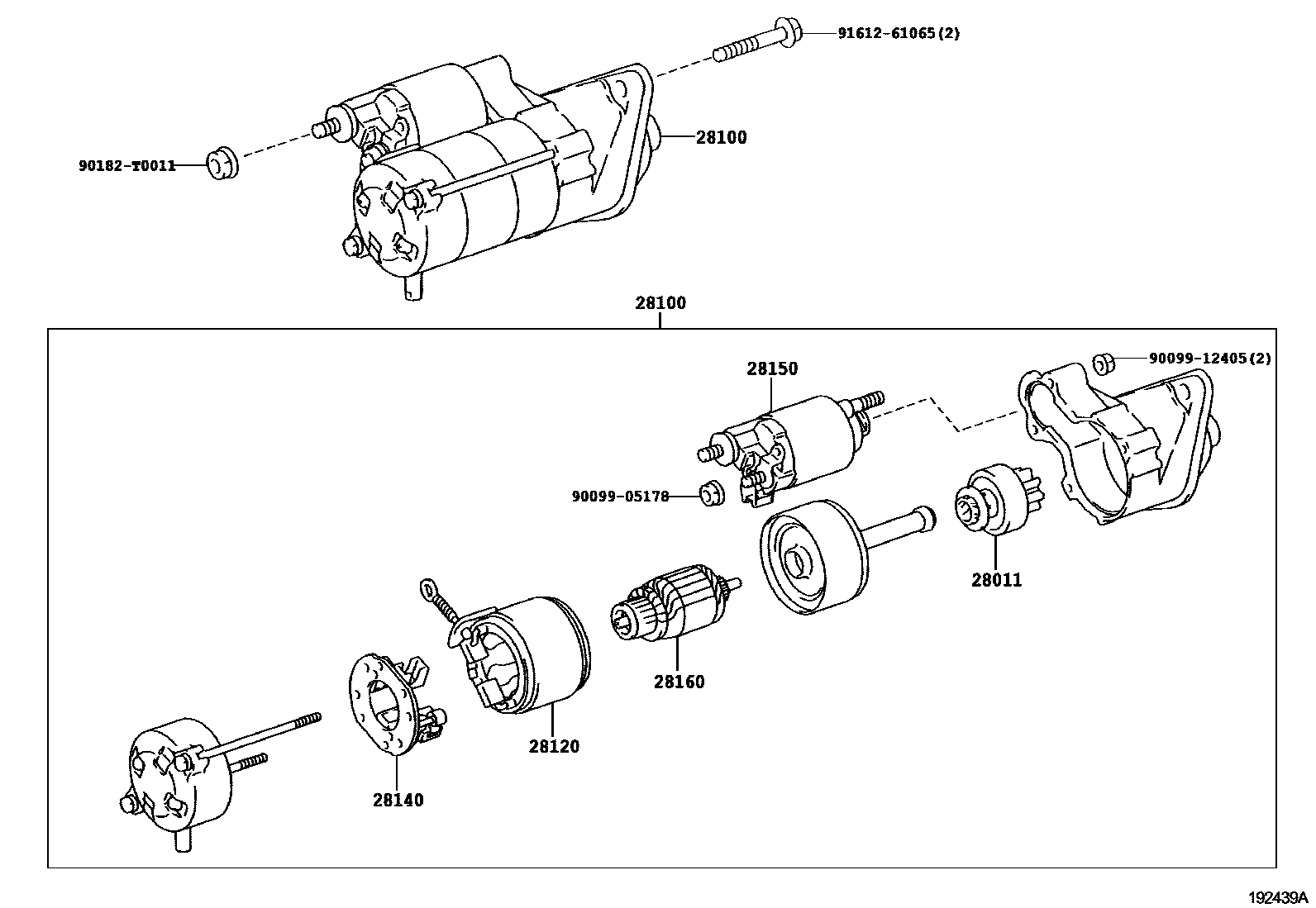

STARTER

0001 112V 0.8KW 0002 112V 0.8KW 0003 112V 0.8KW 0004 112V 0.8KW

28011CLUTCH SUB-ASSY, STARTER

main28011-0T070i1NZFE..NCP91..IDN,MA,PH,TH201203-201307

main28011-0T080i1NZFE..NCP91..TAIW201112

main28011-70020i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

28100STARTER ASSY

main28100-0M040i1NZFE..NCP91..TAIW200611-200905

12V 0.8KW

main28100-0M041i1NZFE..NCP91..TAIW200906-200910

12V 0.8KW

sub28100-21022

main28100-0M050i1NZFE..NCP91..IDN,MA,PH,TH200601-200903

12V 0.8KW

main28100-0M051i1NZFE..NCP91..IDN,MA,PH,TH201002-201307

12V 0.8KW

28120YOKE ASSY, STARTER

main28120-0D040i1NZFE..NCP91..IDN,MA,PH,TH201002-201307

main28120-47120i1NZFE..NCP91..TAIW200906-200910

main28120-70020i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200906

28140HOLDER ASSY, STARTER BRUSH

main28140-0T070i1NZFE..NCP91..IDN,MA,PH,TH201203-201307

main28140-0T080i1NZFE..NCP91..TAIW201112

main28140-70020i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

28150SWITCH ASSY, MAGNET STARTER

main28150-0M050i1NZFE..NCP91..IDN,MA,PH,TH201203-201307

main28150-16160i1NZFE..NCP91..IDN,MA,PH,TH200601-200707

main28150-21020i1NZFE..NCP91..TAIW200903

28160ARMATURE ASSY, STARTER

main28160-0T100i1NZFE..NCP91..IDN,MA,PH,TH201203-201307

main28160-70021i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

9009905178

main90099-05178

9009912405

main90099-12405

90182T0011

main90182-T0011

9161261065

main91612-61065

10 parts on this diagram · 4 diagrams in section
