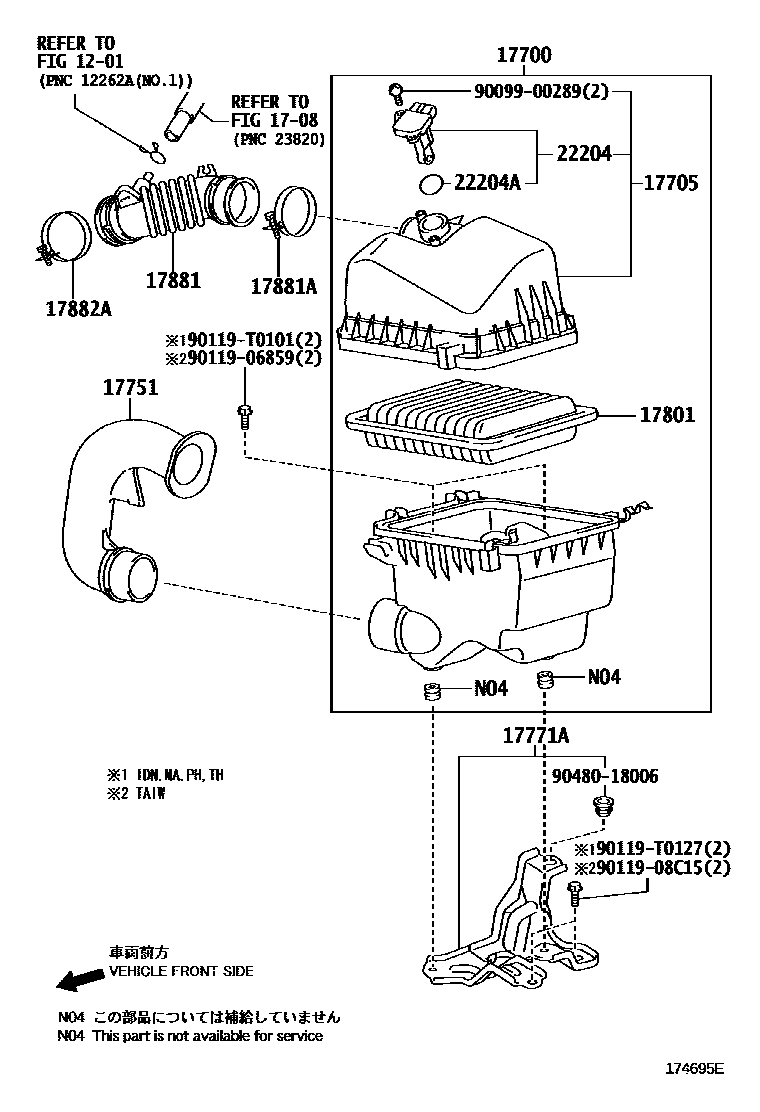

AIR CLEANER

1201VENTILATION HOSE

→ Go to FIG 12-01

1708VACUUM PIPING

→ Go to FIG 17-08

17700CLEANER ASSY, AIR

main17700-0M030i1NZFE..NCP91..IDN,MA,PH,TH200601-200903

main17700-0M040i1NZFE..NCP91..TAIW200611-200910

17705CAP SUB-ASSY, AIR CLEANER

main17705-0M030i1NZFE..NCP91..IDN,MA,PH,TH200903-201307

main17705-0M040i1NZFE..NCP91..TAIW200910

17751INLET, AIR CLEANER, NO.1

main17751-0M020i1NZFE..NCP91..IDN,MA,PH,TH200601-200903

main17751-0M030i1NZFE..NCP91..TAIW200611-200910

17771ABRACKET, AIR CLEANER

main17771-21050i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0M020i1NZFE..NCP91200903

17881HOSE, AIR CLEANER, NO.1

main17880-0M031i1NZFE..NCP91..IDN,MA,PH,TH200601-200903

main17880-0M050i1NZFE..NCP91..TAIW200611-200910

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10690i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10690i1NZFE..NCP91200903

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0C020i1NZFE..NCP91200903

(L)

main22204-22010i1NZFE..NCP91200903

(J)

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i1NZFE..NCP91..IDN,MA,PH,TH200601-200903

9009900289

main90099-00289

9011906859

main90119-06859

9011908C15

main90119-08C15

90119T0101

main90119-T0101

90119T0127

main90119-T0127

9048018006

main90480-18006

18 parts on this diagram · 1 diagram in section
