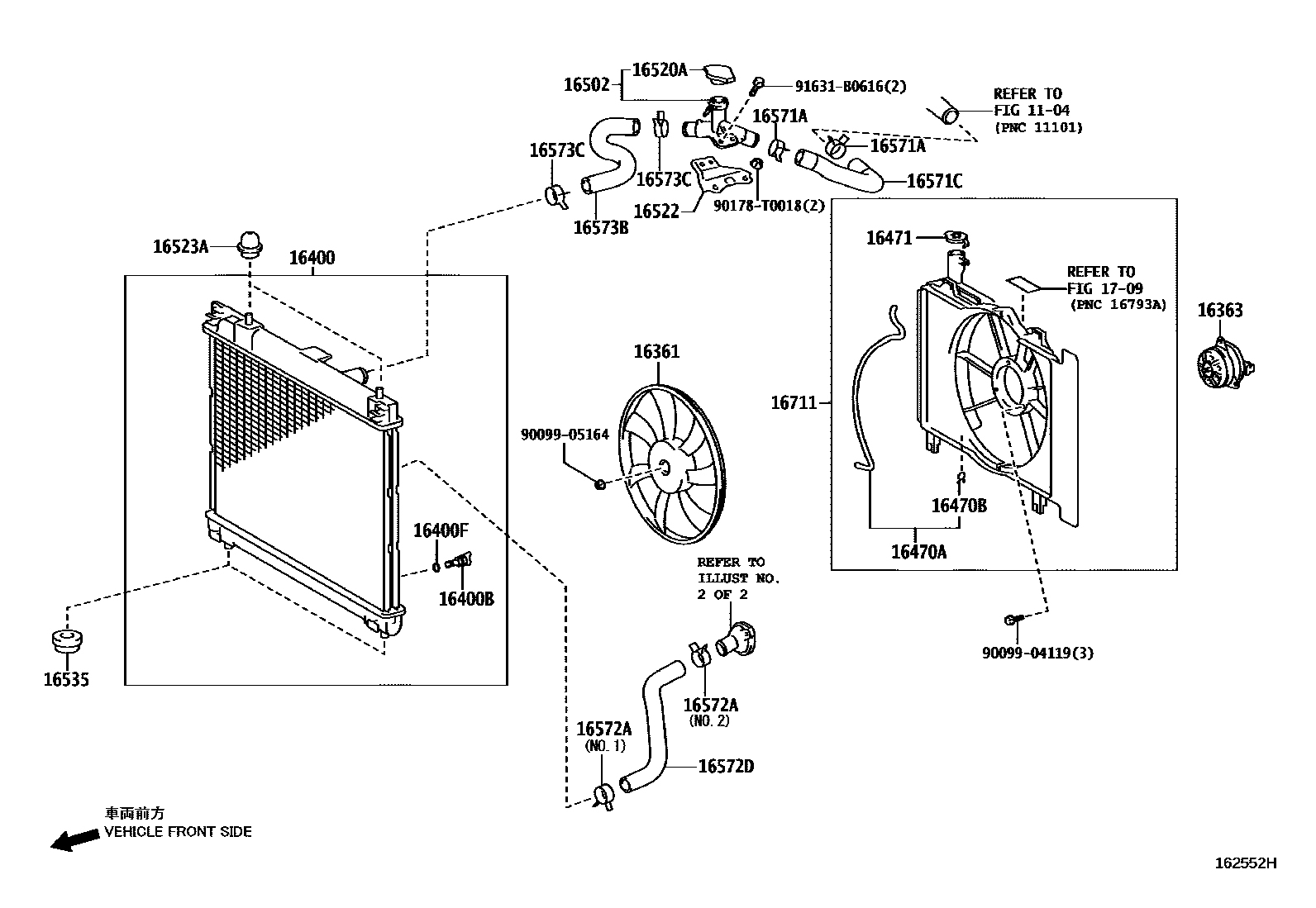

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

1104

16361FAN

main16361-0M050i1NZFE..NCP91..IDN,MA,PH,TH200601-201307

main16361-0M060i1NZFE..NCP91..TAIW200611-200910

16363MOTOR, COOLING FAN

main16363-0M020i1NZFE..NCP91..IDN,MA,PH,TH200601-200910

16400RADIATOR ASSY

main16400-0M060i1NZFE..NCP91..MTM200601-201307

main16400-0M070i1NZFE..NCP91..ATM..(IDN,MA,PH,TH)200601-201307

main16400-0M080i1NZFE..NCP91..TAIW200611-200910

16400BPLUG, RADIATOR DRAIN COCK

main16417-0C180i1NZFE..NCP91..IDN,MA,PH,TH200601-201307

sub16417-21280

main16417-21280i1NZFE..NCP91..TAIW200611-200910

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16378-0M050i1NZFE..NCP91..IDN,MA,PH,TH200601-201307

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

16471CAP SUB-ASSY, RESERVE TANK

main16471-23030i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

16502FILLER SUB-ASSY, WATER

main16502-21060i1NZFE..NCP91..TAIW200908-201203

sub16502-21080

main16502-21070i1NZFE..NCP91..IDN,MA,PH,TH200601-201307

main16502-21080i1NZFE..NCP91..TAIW201204

main16502-21100i1NZFE..NCP91..TAIW200611-200908

sub16502-21060

16520ACAP SUB-ASSY, WATER FILLER

main16401-0H060i1NZFE..NCP91..IDN,MA,PH,TH200601-201307

sub16401-0M010

main16401-28280i1NZFE..NCP91..TAIW200611-200903

sub16401-31480

main16401-31480i1NZFE..NCP91..TAIW200904-201204

main16401-31520i1NZFE..NCP91..TAIW201204

sub16401-36020

16522BRACKET, WATER FILLER

main16522-21010i1NZFE..NCP91200601-200910

16523ACUSHION, RADIATOR SUPPORT

main16523-0M040i1NZFE..NCP91..TAIW200611-200910

main16523-0M050i1NZFE..NCP91..IDN,MA,PH,TH200702-201307

main16523-21030i1NZFE..NCP91..IDN,MA,PH,TH200601-200702

16535SUPPORT, RADIATOR, LOWER

main90480-22025i1NZFE..NCP91..IDN,MA,PH,TH200601-201307

main90480-22025i1NZFE..NCP91..TAIW200910

(J)

main90480-T0008i1NZFE..NCP91..TAIW200611-200910

main90480-T0008i1NZFE..NCP91..TAIW200910

(L)

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-33006i1NZFE..NCP91..IDN,MA,PH,TH200601-201307

main90467-33006i1NZFE..NCP91..TAIW200910-201403

NO.1

main90467-33006i1NZFE..NCP91..TAIW200910

NO.2

main96136-43901i1NZFE..NCP91201404

NO.1

16571CHOSE, RADIATOR, NO.1

main16571-0M050i1NZFE..NCP91..TAIW200611-200910

main16571-21120i1NZFE..NCP91..IDN,MA,PH,TH200601-201307

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-33006i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

NO.2

main90467-34004i1NZFE..NCP91200601-200910

NO.1

16572DHOSE, RADIATOR, NO.2

main16572-0M040i1NZFE..NCP91..IDN,MA,PH,TH200903-201307

main16572-0M040i1NZFE..NCP91..IDN,MA,PH,TH200601-200903

(L)

main16572-0M050i1NZFE..NCP91..TAIW200611-200910

main16572-21090i1NZFE..NCP91..IDN,MA,PH,TH200601-200903

(J)

16573BHOSE, RADIATOR, NO.3

main16573-0M010i1NZFE..NCP91..IDN,MA,PH,TH200601-200903

(L)

main16573-0M010i1NZFE..NCP91..IDN,MA,PH,TH200903-201307

main16573-0M020i1NZFE..NCP91..TAIW200611-200910

main16573-21060i1NZFE..NCP91..IDN,MA,PH,TH200601-200903

(J)

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main90467-33006i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

16711SHROUD, FAN

main16711-0M030i1NZFE..NCP91..IDN,MA,PH,TH200601-201307

main16711-0M040i1NZFE..NCP91..TAIW200611-200910

1709

9009904119

main90099-04119

9009905164

main90099-05164

90178T0018

main90178-T0018

91631B0616

main91631-B0616

26 parts on this diagram · 3 diagrams in section
