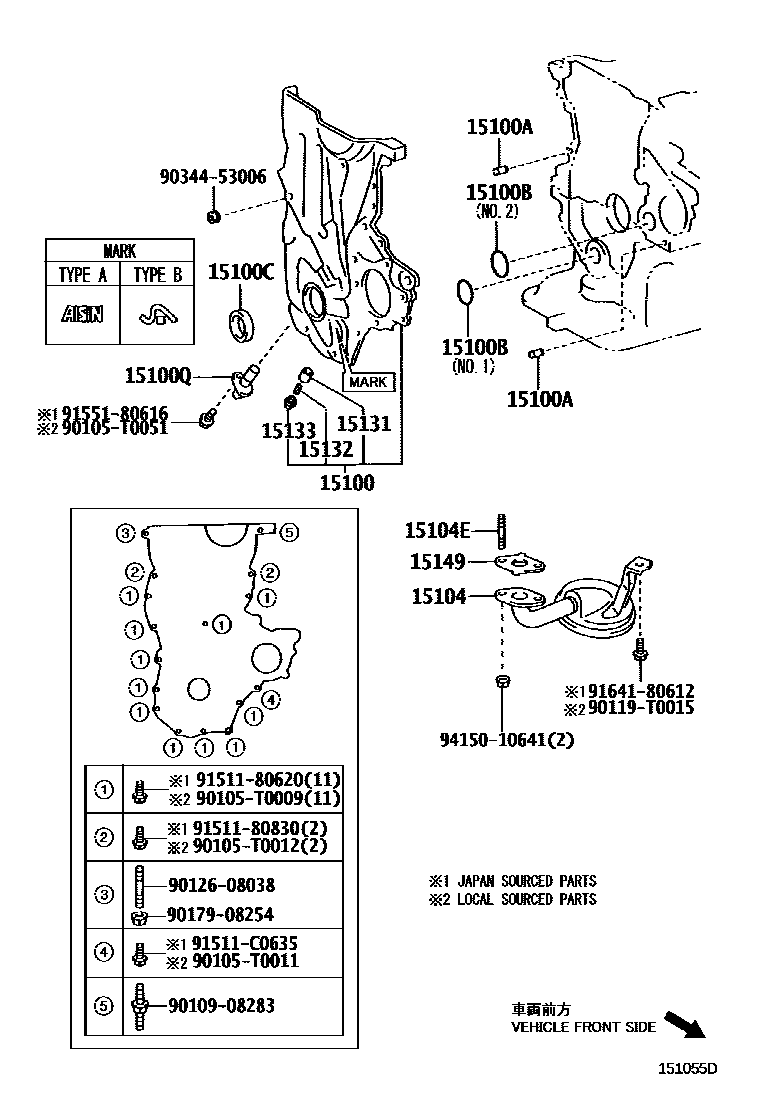

ENGINE OIL PUMP

0001 1 0002 1

15100PUMP ASSY, OIL

main15100-0M010i1NZFE..NCP91..IDN,MA,PH,TH200601-201205

(L)

sub15100-21042

main15100-0M011i1NZFE..NCP91..IDN,MA,PH,TH201205-201307

(L)

main15100-0M020i1NZFE..NCP91..TAIW200910-201205

main15100-0M020i1NZFE..NCP91..TAIW200611-200910

(L)

main15100-0M021i1NZFE..NCP91..TAIW201205

(L)

main15100-21040i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

(J)

sub15100-21042

main15100-21042i1NZFE..NCP91..IDN,MA,PH,TH201112-201205

(J)

main15100-21043i1NZFE..NCP91201205

(J)

15100APIN, RING(FOR OIL PUMP SET)

main90253-08003i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

15100BRING, O(FOR OIL PUMP)

main90301-31012i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200703-200910

NO.1,(J)

sub12151-21010

main90301-31012i1NZFE..NCP91200601-200703

NO.1

sub12151-21010

main90301-42006i1NZFE..NCP91200703-200910

NO.2,(J)

sub11497-21010

main90301-42006i1NZFE..NCP91200601-200703

NO.2

sub11497-21010

main90301-T0040i1NZFE..NCP91200703-201307

NO.2,(L)

main90301-T0042i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200703-201307

NO.1,(L)

15100CSEAL(FOR OIL PUMP)

main90080-31088i1NZFE..NCP91..IDN,MA,PH,TH200903-201211

sub90311-T0055

main90080-31088i1NZFE..NCP91..IDN,MA,PH,TH200601-200903

(L)

sub90311-T0055

main90311-25021i1NZFE..NCP91..IDN,MA,PH,TH200601-200903

(J)

sub90311-25032

main90311-25021i1NZFE..NCP91..TAIW200611-201205

sub90311-25032

main90311-25032i1NZFE..NCP91..TAIW201205

main90311-T0055i1NZFE..NCP91..IDN,MA,PH,TH201211-201307

15100QSENSOR, CRANK POSITION

main90919-05045i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-201106

sub90919-05081

main90919-05081i1NZFE..NCP91201106-201306

sub90919-05087

main90919-05087i1NZFE..NCP91201306

15104STRAINER SUB-ASSY, OIL

main15104-0M020i1NZFE..NCP91..TAIW200910

main15104-0M020i1NZFE..NCP91..TAIW200611-200910

(L)

main15104-0M030i1NZFE..NCP91..IDN,MA,PH,TH200710-201307

(L)

main15104-21021i1NZFE..NCP91..TAIW200611-200612

(J)

sub15104-21022

main15104-21021i1NZFE..NCP91..RHD200601-200612

sub15104-21022

main15104-21022i1NZFE..NCP91..IDN,MA,PH,TH200612-200710

main15104-21022i1NZFE..NCP91..J;1NZFE..NCP91..TAIW200612-201307

(J)

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-06021i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

15131VALVE, OIL PUMP RELIEF

main15131-21020i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

15132SPRING, OIL PUMP RELIEF VALVE

main15132-0M010i1NZFE..NCP91..IDN,MA,PH,TH200601-201307

TYPE B:REFER ILLUST.

main15132-0M020i1NZFE..NCP91..TAIW200910-201205

main15132-0M020i1NZFE..NCP91..TAIW200611-200910

TYPE B:REFER ILLUST.

main15132-21020i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-201307

TYPE A:REFER ILLUST.

main15132-21020i1NZFE..NCP91..TAIW201205

15133PLUG, OIL PUMP RELIEF VALVE

main15133-0M020i1NZFE..NCP91..TAIW200611-200910

TYPE B:REFER ILLUST.

main15133-0M020i1NZFE..NCP91..TAIW200910-201205

main15133-21020i1NZFE..NCP91..IDN,MA,PH,TH200601-201307

TYPE B:REFER ILLUST.

main15133-21030i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

TYPE A:REFER ILLUST.

15149GASKET, OIL STRAINER FLANGE

main16258-0M010i1NZFE..NCP91..IDN,MA,PH,TH201211-201307

(L)

main16258-21030i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-201211

main16258-21030i1NZFE..NCP91..IDN,MA,PH,TH201211-201307

(J)

90105T0009

main90105-T0009

90105T0011

main90105-T0011

90105T0012

main90105-T0012

90105T0051

main90105-T0051

9010908283

main90109-08283

90119T0015

main90119-T0015

9012608038

main90126-08038

9017908254

main90179-08254

9034453006

main90344-53006

9151180620

main91511-80620

9151180830

main91511-80830

91511C0635

main91511-C0635

9155180616

main91551-80616

9164180612

main91641-80612

9415010641

main94150-10641
