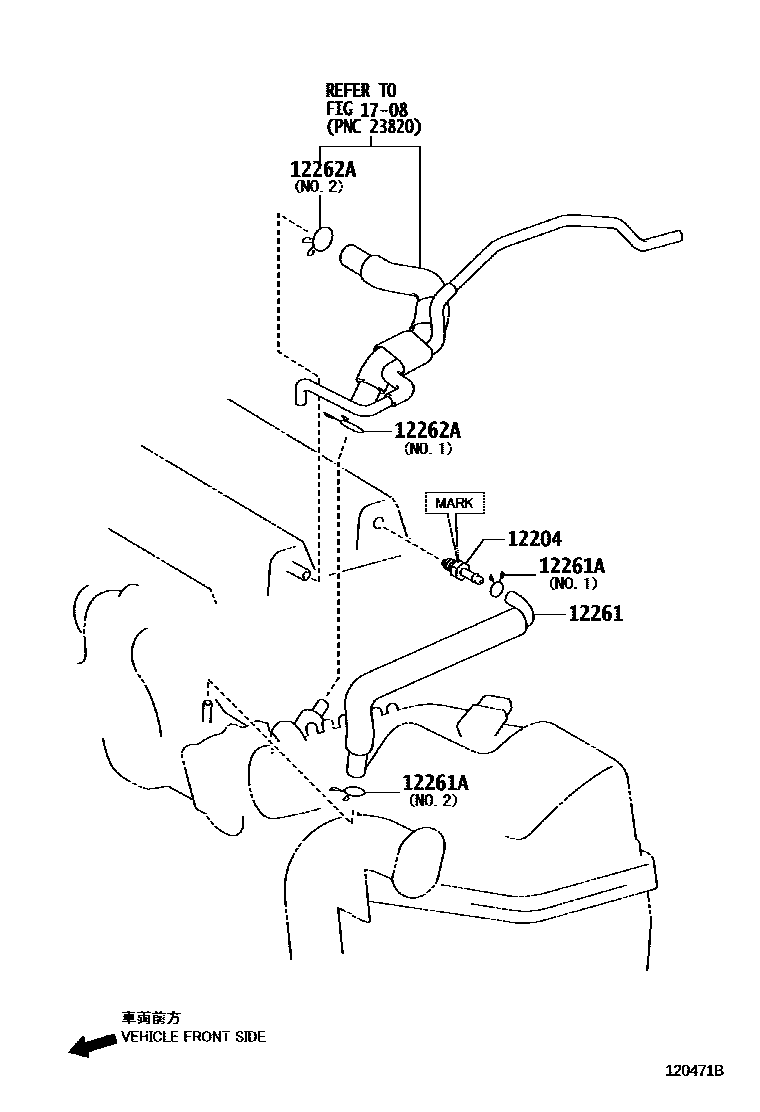

VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-21011i1NZFE..NCP91200601-200902

MARK 12204-21011

main12204-21012i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200902-200910

MARK 12204-21012

main12204-21013i1NZFE..NCP91201305

MARK 12204-21013

12261HOSE, VENTILATION

main12261-0M010i1NZFE..NCP91200903

(L)

main12261-21030i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

(J)

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-15120i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

NO.1

main90467-24038i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

NO.2

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90466-T0027i1NZFE..NCP91..IDN,MA,PH,TH200703-200903

NO.1

main90467-21004i1NZFE..NCP91..TAIW200910-201409

NO.1

main90467-21152i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

NO.2

1708VACUUM PIPING

→ Go to FIG 17-08

5 parts on this diagram · 1 diagram in section
