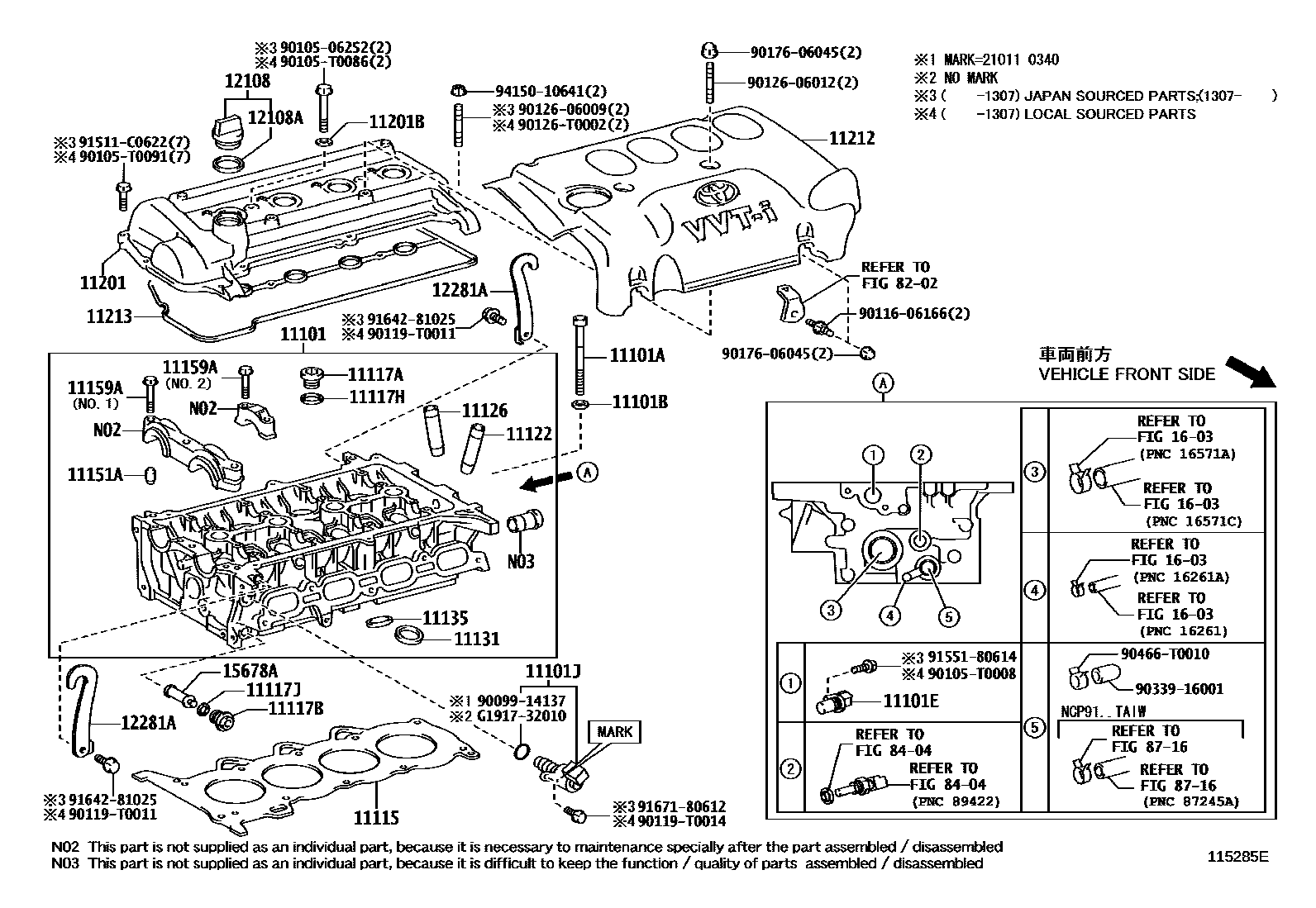

CYLINDER HEAD

11101HEAD SUB-ASSY, CYLINDER

main11101-21033i1NZFE..NCP91200601-200903

main11101-21034i1NZFE..NCP91201112

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02126×10i1NZFE..NCP91200601-200704

main90910-02170×10i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200704-200910

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-09024×10i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

11101ESENSOR, CAM POSITION

main90919-05024i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-21011i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

11115GASKET, CYLINDER HEAD

main11115-21050i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

main11115-21080i1NZFE..NCP91201112-201205

main11115-21090i1NZFE..NCP91201205

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90341-20002i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

11117BPLUG, W/HEAD TAPER SCREW, NO.2

main90341-14013i1NZFE..NCP91200601-200703

main90341-T0012i1NZFE..NCP91200903-201307

(L)

11117HGASKET(FOR WATER HOLE)

main90430-20004i1NZFE..NCP91200903

11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-14009i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

11122BUSH, INTAKE VALVE GUIDE

main11122-21010×8i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

STD

main11123-21010×8i1NZFE..NCP91200903

O/S 0.05

11126BUSH, EXHAUST VALVE GUIDE

main11122-21010×8i1NZFE..NCP91200903

STD

main11123-21010×8i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

O/S 0.05

11131SEAT, INTAKE VALVE

main11131-21020×8i1NZFE..NCP91200903

STD

main11132-21020×8i1NZFE..NCP91200903

O/S 0.03

11135SEAT, EXHAUST VALVE

main11135-21020×8i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

STD

main11136-21040×8i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

O/S 0.03

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90250-06001×2i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

L=14,OD=6

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90109-06080×16i1NZFE..NCP91200903

NO.2

main90119-08A29×3i1NZFE..NCP91200903

NO.1

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-0M010i1NZFE..NCP91..IDN,MA,PH,TH200601-200903

(L)

main11201-0M011i1NZFE..NCP91..IDN,MA,PH,TH201209-201307

(L)

main11201-0M020i1NZFE..NCP91..TAIW200611-200910

(L)

main11201-0M021i1NZFE..NCP91..TAIW201209

main11201-21050i1NZFE..NCP91..IDN,MA,PH,TH200903-201212

(J)

main11201-21051i1NZFE..NCP91..IDN,MA,PH,TH201212-201307

(J)

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-05008×2i1NZFE..NCP91201403

main90210-06013×2i1NZFE..NCP91200903-201402

11212COVER, CYLINDER HEAD, NO.2

main11212-0M012i1NZFE..NCP91..IDN,MA,PH,TH200903-201307

main11212-0M023i1NZFE..NCP91..TAIW200611-200910

11213GASKET, CYLINDER HEAD COVER

main11213-0M010i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

(L)

main11213-21011i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

(J)

12108CAP SUB-ASSY, OIL FILLER

main12180-0H020i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

(L)

main12180-21010i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

(J)

12108AGASKET(FOR OIL FILLER CAP)

main90080-43027i1NZFE..NCP91..TAIW200910

main90430-37140i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

(J)

12281AHANGER, ENGINE, NO.1

main12281-0M020×2i1NZFE..NCP91201209

(L)

main12281-21010×2i1NZFE..NCP91200903

(J)

15678AFILTER, OIL CONTROL VALVE

main15678-0C010i1NZFE..NCP91200903-201307

(L)

main15678-21010i1NZFE..NCP91200601-200703

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8202WIRING & CLAMP

→ Go to FIG 82-02

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9009914137

main90099-14137

9010506252

main90105-06252

90105T0008

main90105-T0008

90105T0086

main90105-T0086

90105T0091

main90105-T0091

9011606166

main90116-06166

90119T0011

main90119-T0011

90119T0014

main90119-T0014

9012606009

main90126-06009

9012606012

main90126-06012

90126T0002

main90126-T0002

9017606045

main90176-06045

9033916001

main90339-16001

90466T0010

main90466-T0010

91511C0622

main91511-C0622

9155180614

main91551-80614

9164281025

main91642-81025

9167180612

main91671-80612

9415010641

main94150-10641

G191732010

mainG1917-32010

48 parts on this diagram · 1 diagram in section
