ENGINE OVERHAUL GASKET KIT

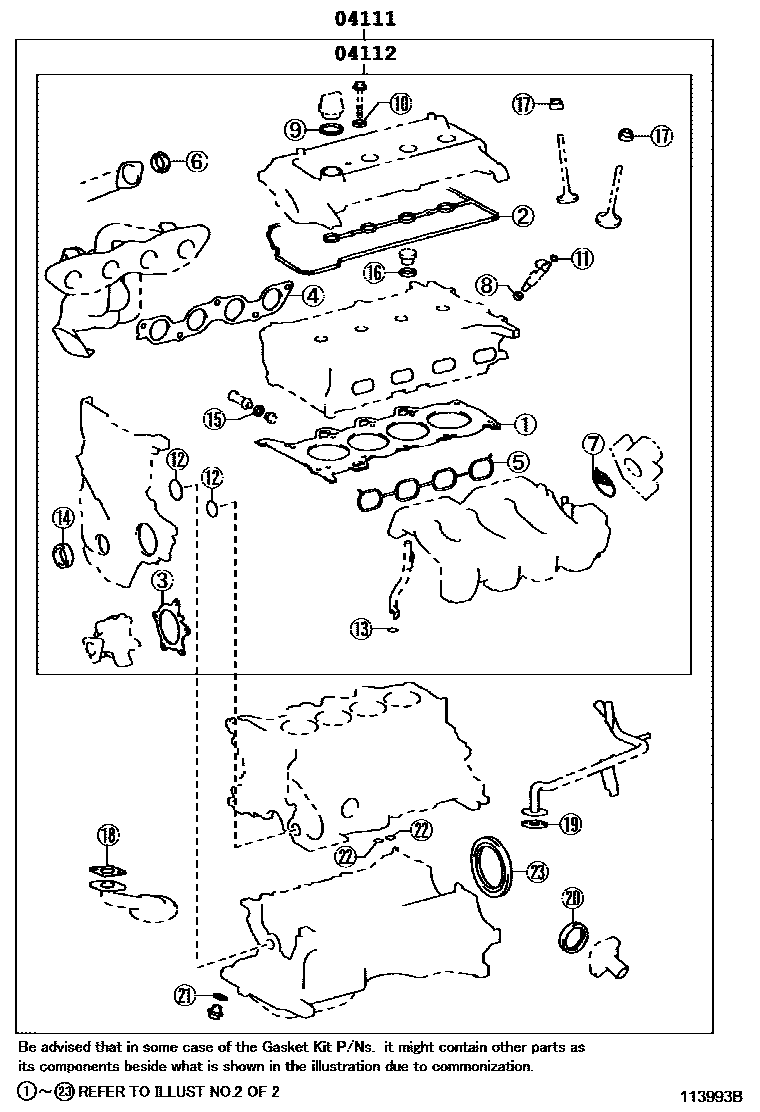

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-0M100i200601-200612

main04111-0M108i200612-200903

main04111-0M109i201211-201307

main04111-0M110i200611-200612

main04111-0M111i200612-200901

main04111-0M112i200901-200910

main04111-0M113i201011-201112

main04111-0M114i201112-201201

main04111-0M115i201201-201202

main04111-0M116i201202-201205

main04111-0M117i201205-201207

main04111-0M118i201207-201311

main04111-0M119i201311-201403

main04111-0M150i201403-201409

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0M090i200601-200612

main04112-0M096i200903-201211

main04112-0M097i201211-201307

main04112-0M100i200611-200612

main04112-0M101i200910-201011

main04112-0M102i201011-201112

main04112-0M103i201112-201201

main04112-0M104i201201-201205

main04112-0M105i201205-201207

main04112-0M106i201207-201311

main04112-0M107i201311-201403

main04112-0M108i201403-201409

2 parts on this diagram · 2 diagrams in section
