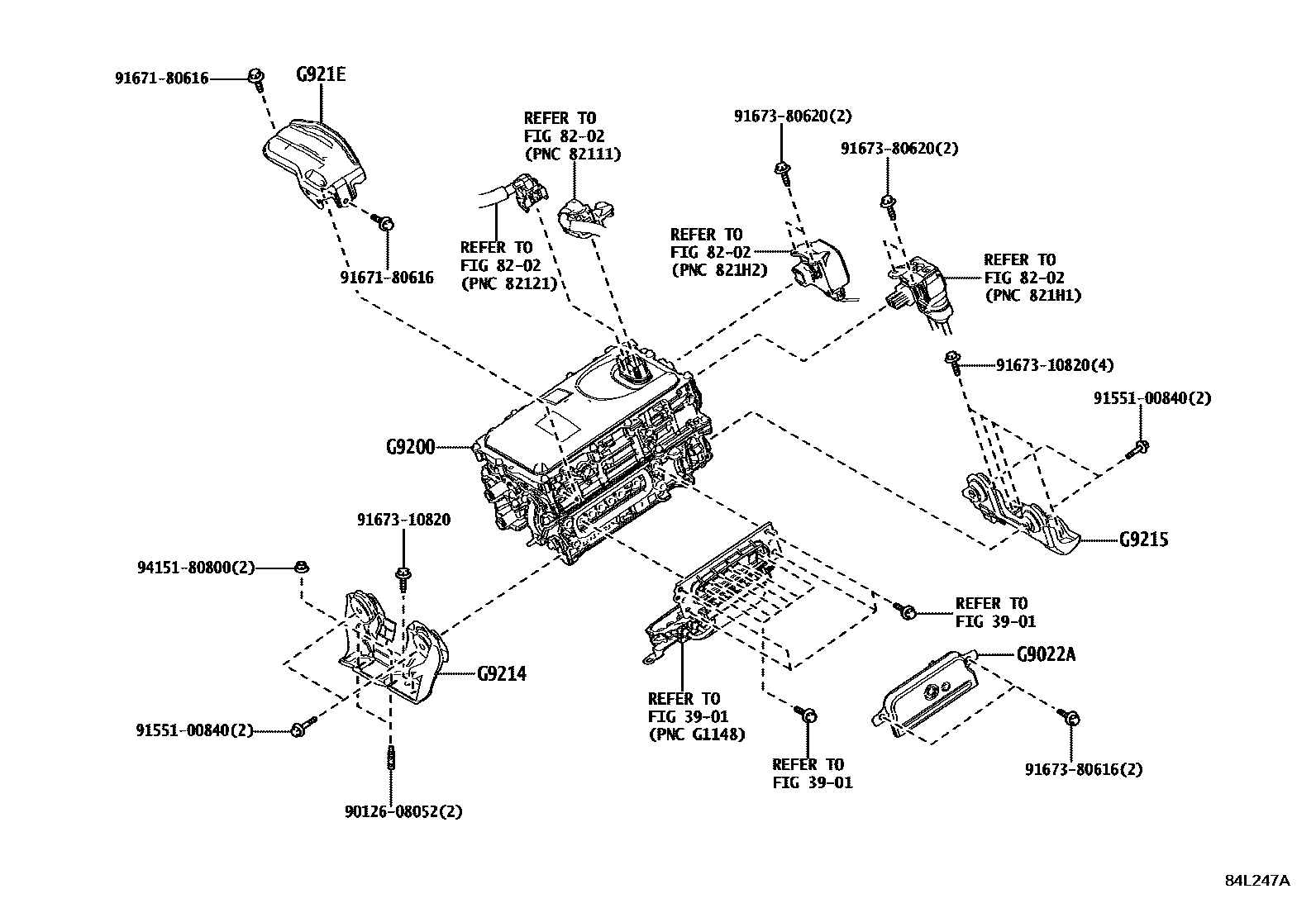

HEV INVERTER

0001 1INVERTER ASSY 0002 1KIT PARTS

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

G9022ACOVER SUB-ASSY, INVERTER, UPPER

mainG902247050iMXPH10202005-202401

G9200INVERTER ASSY, W/CONVERTER

mainG9200K9010iMXPH10202005-202104

mainG9200K9011iMXPH10202104-202401

mainG92A052190iMXPH10202401

G9214BRACKET, INVERTER, NO.1

mainG9214K0010iMXPH10202005-202401

G9215BRACKET, INVERTER, NO.2

mainG9215K0010iMXPH10202005-202401

G921EPROTECTOR, INVERTER

mainG921EK0010iMXPH10202005-202401

9012608052

main90126-08052

9155100840

main91551-00840

9167180616

main91671-80616

9167310820

main91673-10820

9167380616

main91673-80616

9167380620

main91673-80620

9415180800

main94151-80800

14 parts on this diagram · 2 diagrams in section
