Toyota 113320 — CLEARANCE & BACK SONAR

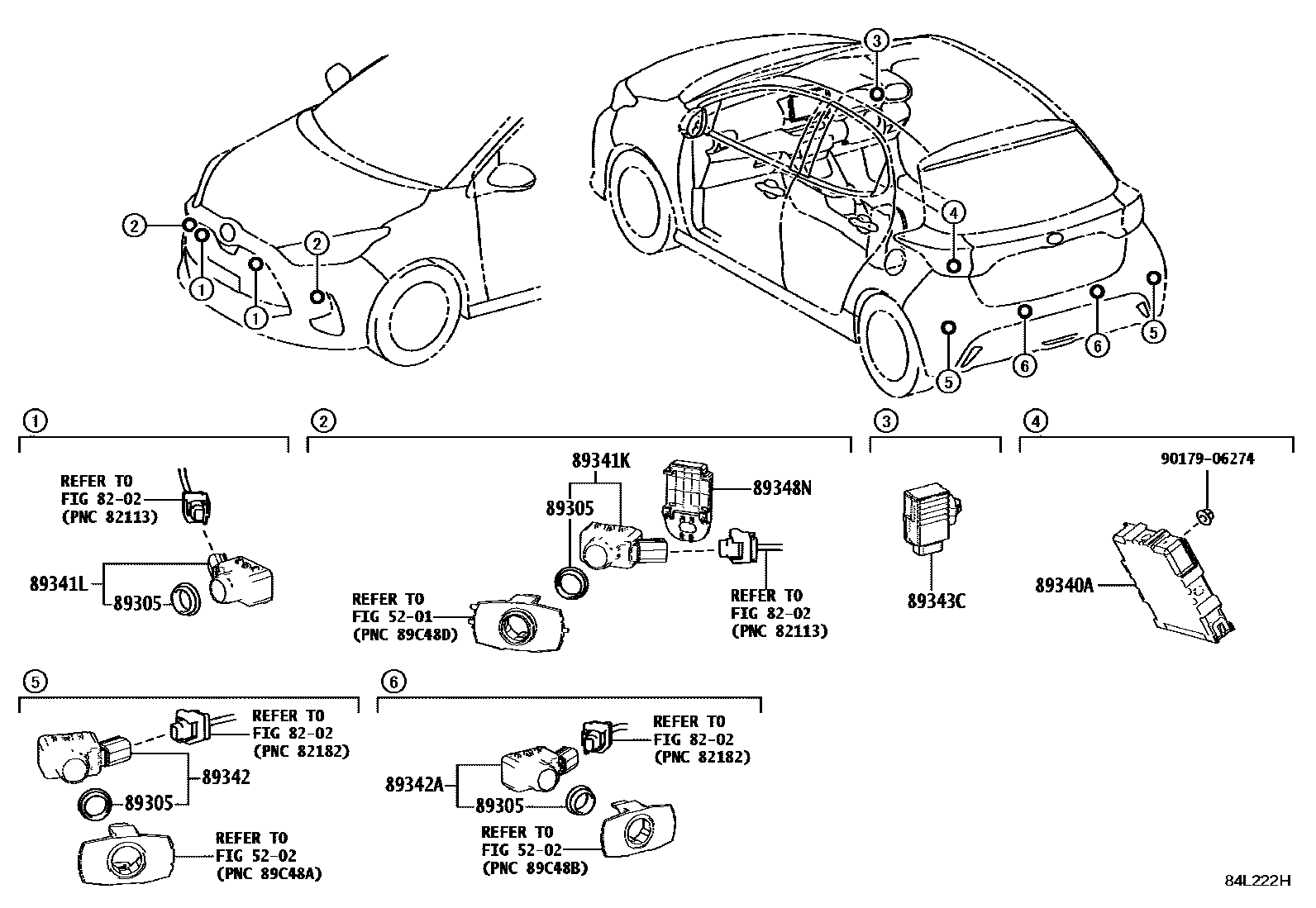

Parts diagram

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

8202WIRING & CLAMP

→ Go to FIG 82-02

89305CUSHION SET, ULTRASONIC SENSOR

89340ACOMPUTER ASSY, CLEARANCE WARNING

89341KSENSOR, ULTRASONIC, FRONT CORNER

89341LSENSOR, ULTRASONIC, FRONT CENTER

89342SENSOR, ULTRASONIC, REAR CORNER

89342ASENSOR, ULTRASONIC, REAR CENTER

89343CBUZZER, CLEARANCE WARNING, NO.1

89348NCLIP, ULTRASONIC SENSOR, NO.1

9017906274

12 parts on this diagram · 1 diagram in section

CLEARANCE & BACK SONAR for Toyota 113320

This section contains 12 genuine Toyota parts for the CLEARANCE & BACK SONAR system of the Toyota 113320. Key components include: FRONT BUMPER & BUMPER STAY, REAR BUMPER & BUMPER STAY, WIRING & CLAMP, CUSHION SET, ULTRASONIC SENSOR, COMPUTER ASSY, CLEARANCE WARNING.
