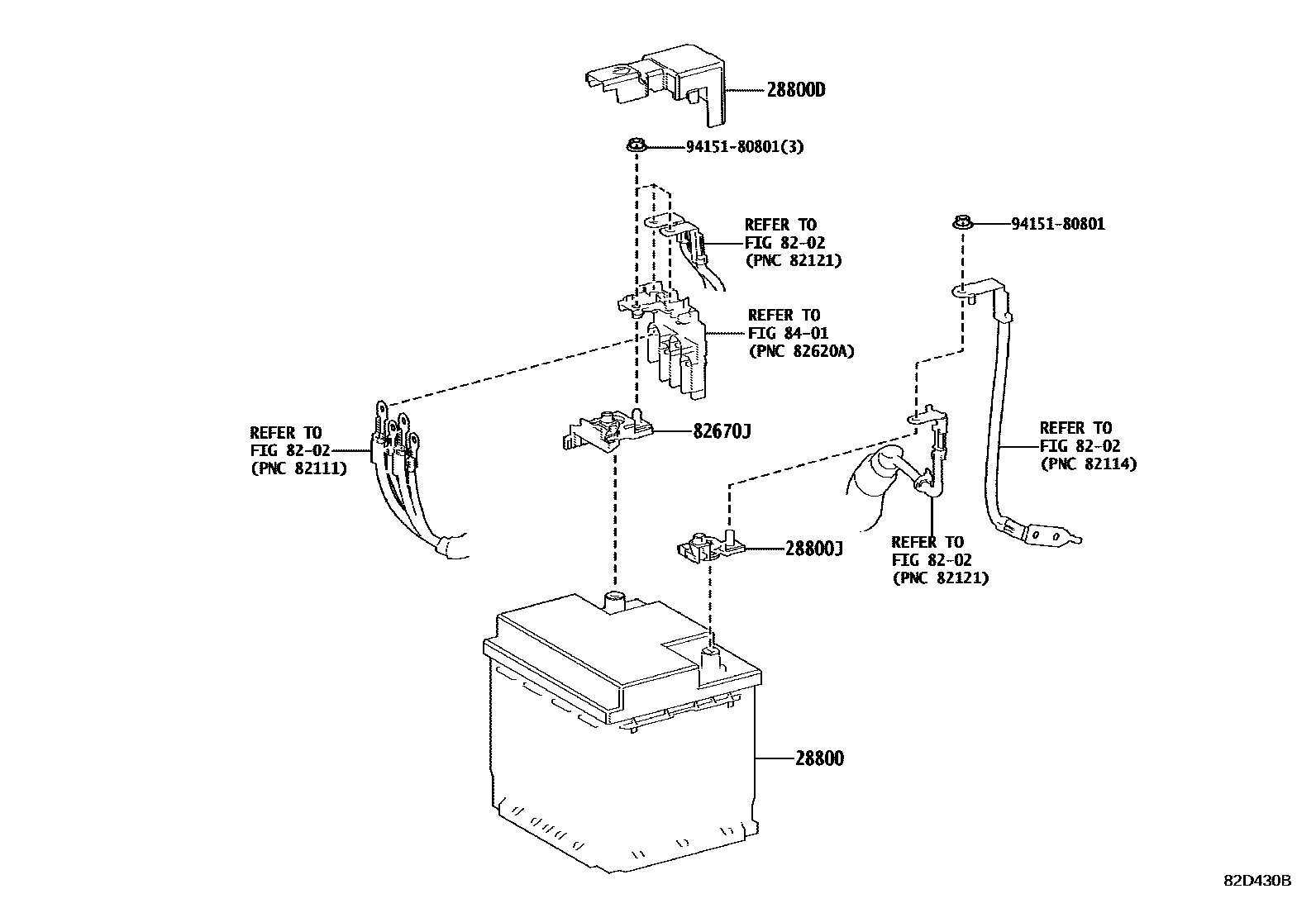

BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 1/3 0004 1HV BATTERY 2/3 0005 1HV BATTERY 3/3

28800BATTERY

main28800-37130iM15AFKS..MXPA10202005-202302

LN1

main28800-37131iM15AFKS..MXPA10202401-202501

LN1

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82621-52170iM15AFKS..MXPA10..6F202005-202207

28800JTERMINAL, BATTERY NEGATIVE

main90982-06061iM15AFKS..MXPA10..6F202005-202207

8202WIRING & CLAMP

→ Go to FIG 82-02

82670JBLOCK ASSY, JUNCTION

main82670-33140iMXPH10202401

main82670-K0010iMXPA10..6F202005-202207

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9415180801

main94151-80801

7 parts on this diagram · 5 diagrams in section
