FRONT SEAT & SEAT TRACK

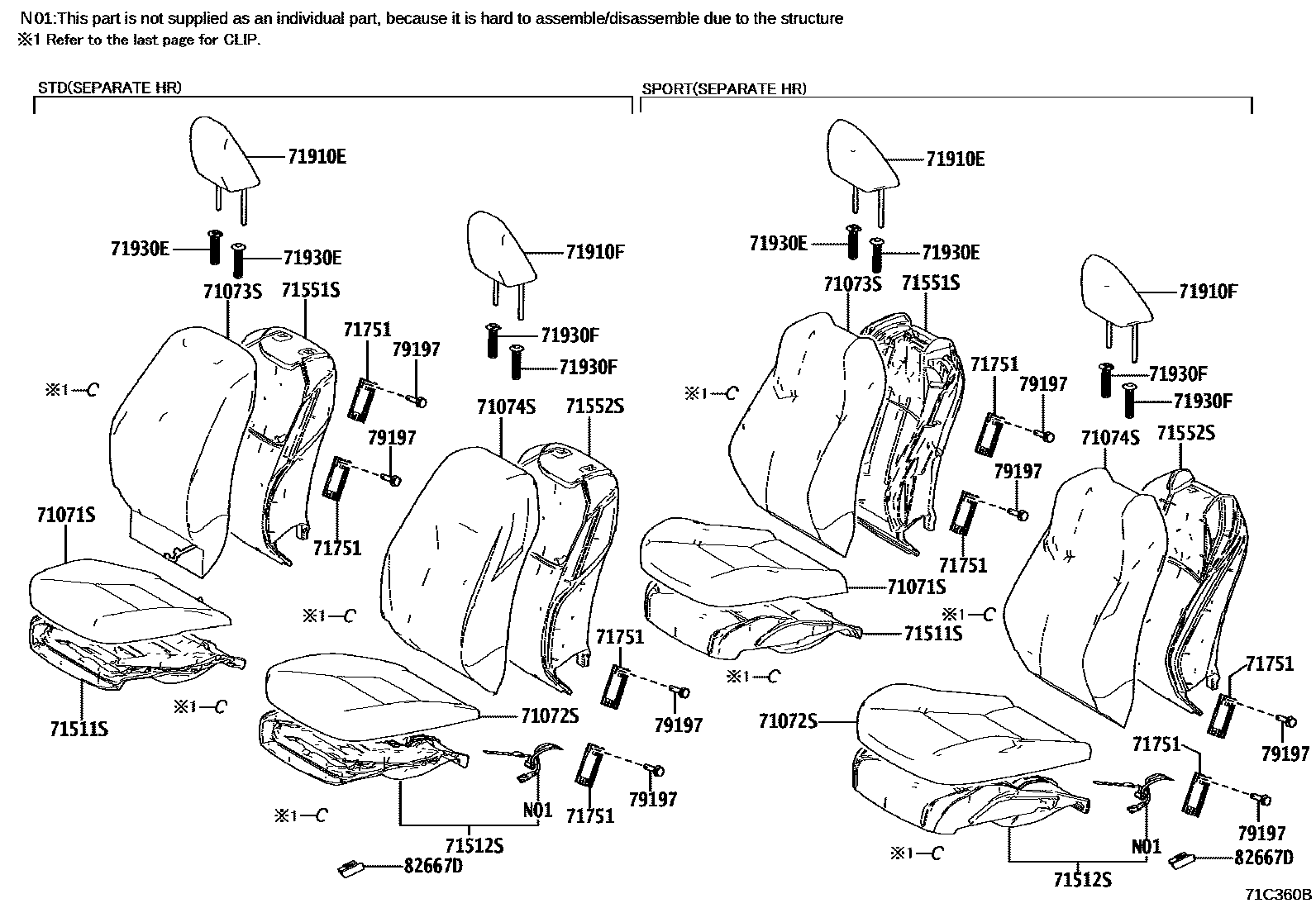

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-5CS20-B0i202401-202501
TAUPE/BLACK,TRIM2#
main71071-K0110-C0i202005-202208
BLACK,TRIM2#
main71071-K0110-E0i202005-202208
TAUPE,TRIM4#
main71071-K0111-C0i202208-202401
BLACK,TRIM2#
main71071-K0111-E0i202208-202401
TAUPE,TRIM4#
main71071-K0200-B1i202005-202208
S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST,GRAY/LT.GRAY/BLACK/DK.ROS,TRIM1#
main71071-K0201-B1i202208-202401
S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST,LT. GRAY,TRIM1#
main71071-K0201-B2i202401-202501
S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST,GRAY/BLACK/DK.ROSE,TRIM1#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-5CQ00-B0i202401-202501
TAUPE/BLACK,TRIM2#
main71072-K0110-C0i202005-202208
BLACK,TRIM2#
main71072-K0110-E0i202005-202208
TAUPE,TRIM4#
main71072-K0111-C0i202208-202401
BLACK,TRIM2#
main71072-K0111-E0i202208-202401
TAUPE,TRIM4#
main71072-K0200-B1i202005-202208
S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST,GRAY/LT.GRAY/BLACK/DK.ROS,TRIM1#
main71072-K0201-B1i202208-202401
S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST,LT. GRAY,TRIM1#
main71072-K0201-B2i202401-202501
S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST,GRAY/BLACK/DK.ROSE,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-5D390-B0i202401-202501
TAUPE/BLACK,TRIM2#
main71073-K0100-C1i202005-202207
BLACK,TRIM2#
main71073-K0100-E1i202005-202401
TAUPE,TRIM4#
main71073-K0190-B2i202005-202401
S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST,GRAY/LT.GRAY/BLACK/DK.ROS,TRIM1#
main71073-K0190-B3i202401-202501
S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST,GRAY/BLACK/DK.ROSE,TRIM1#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-5CQ30-B0i202401-202501
TAUPE/BLACK,TRIM2#
main71074-K0120-C1i202005-202207
BLACK,TRIM2#
main71074-K0120-E1i202005-202207
TAUPE,TRIM4#
main71074-K0200-B2i202005-202207
S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST,GRAY/LT.GRAY/BLACK/DK.ROS,TRIM1#
main71074-K0200-B3i202401-202501
S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST,GRAY/BLACK/DK.ROSE,TRIM1#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-K0100supersedes 71511-K0090i202005-202208
S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST
main71511-K0101supersedes 71511-K0091i202401-202501
S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71502-K0150supersedes 71502-K0141i202005-202208
S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST
main71502-K0151supersedes 71502-K0141i202208-202401
S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-K0050supersedes 71551-K0080i202005-202207
S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-K0050supersedes 71552-K0080i202005-202401
S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST
71751HANGER, SEAT COVER
main71751-47050×4i202005-202207
71910EHEADREST ASSY, FRONT SEAT, RH
main71910-52U20-C1i202401-202501
BLACK,TRIM2#
main71910-K0100-C1i202005-202401
BLACK,TRIM2#,4#
main71910-K0110-B2i202005-202207
S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST,GRAY/DK.ROSE,TRIM1#
71910FHEADREST ASSY, FRONT SEAT, LH
main71910-52U20-C1i202401-202501
BLACK,TRIM2#
main71910-K0100-C1i202005-202207
BLACK,TRIM2#,4#
main71910-K0110-B2i202005-202401
S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST,GRAY/DK.ROSE,TRIM1#
71930ESUPPORT ASSY, FRONT SEAT HEADREST, RH
main71930-47050-C5i202005-202401
W(LOCK),BLACK,TRIM2#,4#
main71931-47030-C4i202005-202207
W/O(LOCK),BLACK,TRIM2#,4#
71930FSUPPORT ASSY, FRONT SEAT HEADREST, LH
main71930-47050-C5i202401-202501
W(LOCK),BLACK,TRIM2#,4#
main71931-47030-C4i202005-202207
W/O(LOCK),BLACK,TRIM2#,4#
79197HOOK, SEATBACK COVER
main79197-47010×4i202005-202401
82667DHOLDER, CONNECTOR
main82666-47630i202005-202401

15 parts on this diagram · 5 diagrams in section
