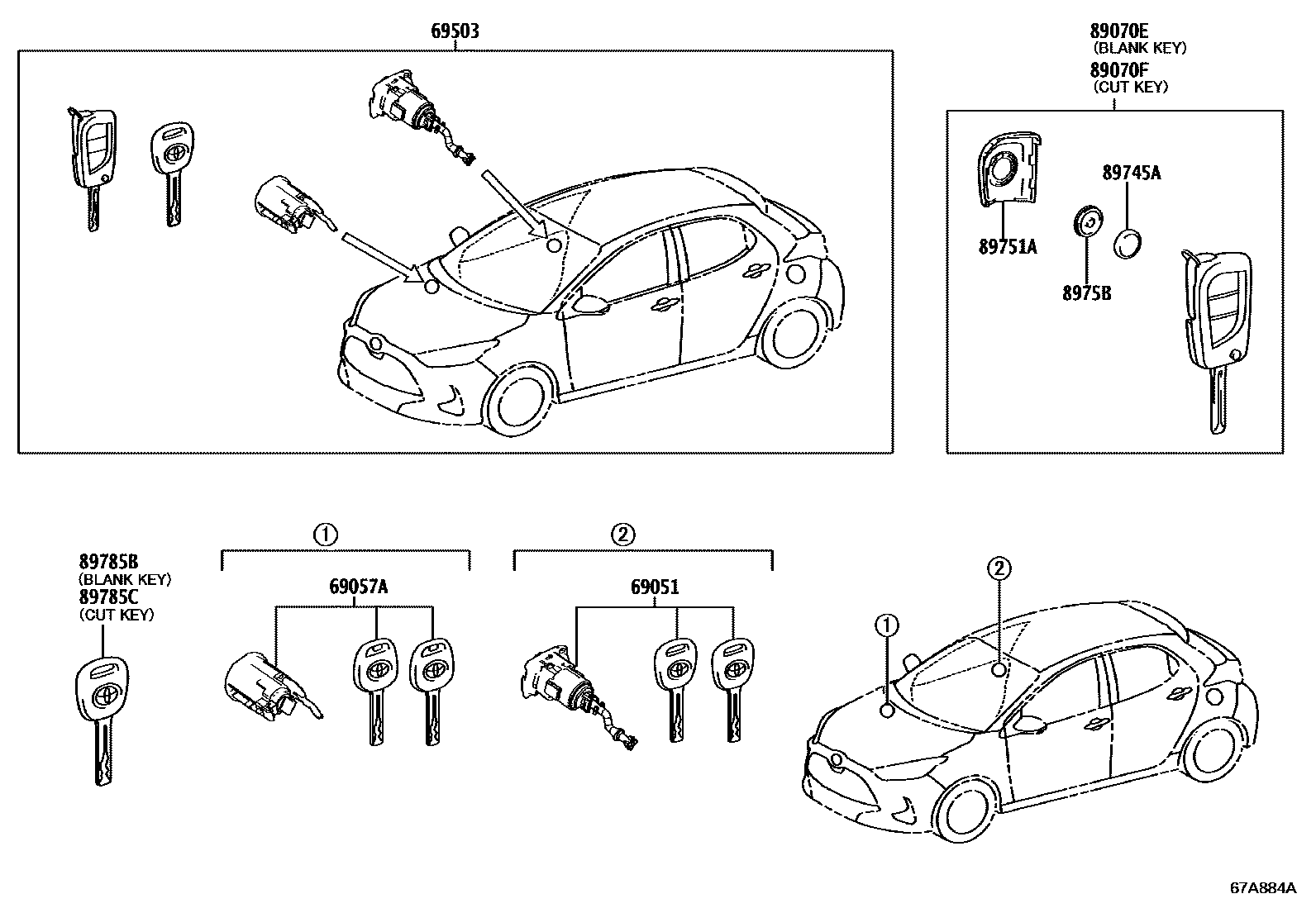

LOCK CYLINDER SET

0001 1 0002 1W(SMART ENTRY)

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-K0050iMXPA10..6F202005-202501

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-K0020iMXPA10..6F202005-202501

69503CYLINDER SET, LOCK

main69005-K0090iMXPH10202401

main89704-K0010iMXPA10,MXPH10..CVT202005-202204

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ID

main89704-K0011iMXPA10,MXPH10..CVT202205-202401

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ID

main89704-K0011iMXPA10202401-202501

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-K0040iMXPA10,MXPH10202005-202401

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ID

main89070-K0040iMXPA10202401-202501

89070FTRANSMITTER ASSY, DOOR CONTROL (CUT KEY)

main89070-K0070iMXPA10,MXPH10202005-202401

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ID

main89070-K0070iMXPA10202401-202501

89745ABATTERY, TRANSMITTER

main89745-50020iMXPA10,MXPH10202005-202501

CR2032

main89745-50020iMXPA10,MXPH10202005-202401

CR2032,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ID

89751ACOVER, TRANSMITTER HOUSING

main89751-33200iMXPA10,MXPH10202005-202401

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ID

main89751-33200iMXPA10202401-202501

8975BCOVER, TRANSMITTER BATTERY HOUSING

main8975B-33050iMXPA10,MXPH10202005-202401

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ID

main8975B-33050iMXPA10202401-202501

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-28060iMXPA10,MXPH10202005-202401

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ID

main89785-28060iMXPA10202401-202501

89785CTRANSMITTER, TRANSPONDER KEY MASTER

main89785-28070iMXPA10,MXPH10202005-202401

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ID

main89785-28070iMXPA10202401-202501

10 parts on this diagram · 2 diagrams in section
