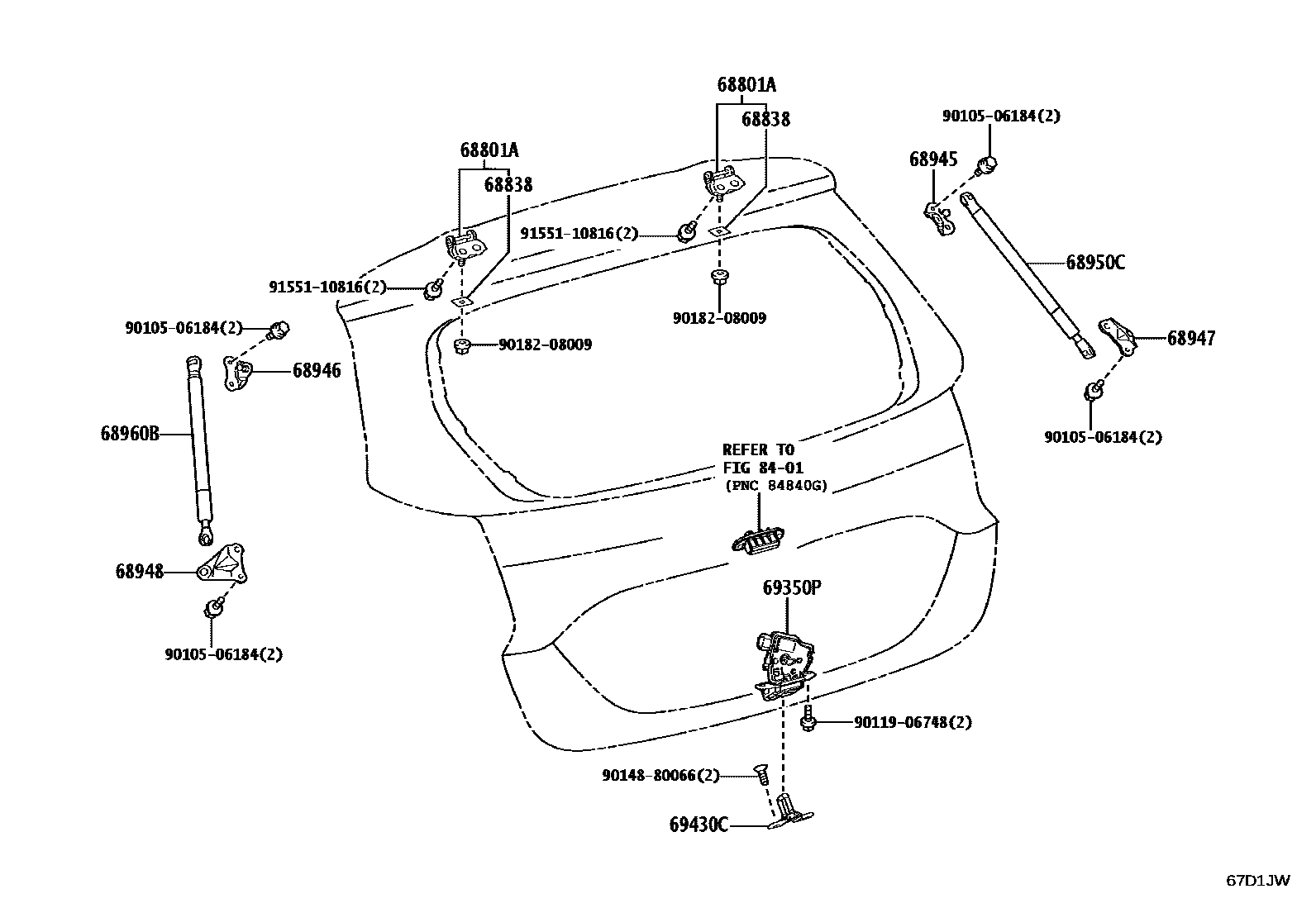

BACK DOOR LOCK & HANDLE

68801AHINGE SUB-ASSY, BACK DOOR, UPPER

main68801-K0010×2iMXPH10202401

68838PAD, BACK DOOR HINGE, NO.1

main68838-K0010×2iMXPA10,MXPH10..CVT202005-202401

T=0.5

main68838-K0020×2iMXPH10202401

T=1.0

main68838-K0030×2iMXPA10202401-202501

T=1.5

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-K0010iMXPA10..6F202005-202207

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-K0050iMXPA10..6F202005-202207

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-K0010iMXPA10..6F202005-202207

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-K0010iMXPA10..6F202005-202207

68950CSTAY ASSY, BACK DOOR, RH

main68950-K0130supersedes 68950-K0120iMXPH10202401

S PACKAGE

68960BSTAY ASSY, BACK DOOR, LH

main68960-K0130supersedes 68960-K0120iMXPA10..6F202005-202207

S PACKAGE

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-52391iMXPA10..6F202005-202207

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-52050iMXPA10..6F202005-202207

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506184

main90105-06184

9011906748

main90119-06748

9014880066

main90148-80066

9018208009

main90182-08009

9155110816

main91551-10816

16 parts on this diagram · 1 diagram in section
