INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM1#,2#,4#
62112BOARD, COWL SIDE TRIM, LH
BLACK,TRIM1#,2#,4#
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211GARNISH, FRONT PILLAR, RH
BLACK,TRIM1#,2#,4#
62212GARNISH, FRONT PILLAR, LH
BLACK,TRIM1#,2#,4#
62217GCLIP, FRONT PILLAR GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62411BGARNISH, CENTER PILLAR, UPPER RH
BLACK,TRIM1#,2#,4#
62412BGARNISH, CENTER PILLAR, UPPER LH
BLACK,TRIM1#,2#,4#
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM1#,2#,4#
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM1#,2#,4#
62471AGARNISH, ROOF SIDE, INNER RH
BLACK,TRIM1#,2#,4#
62471GCLIP, ROOF SIDE INNER GARNISH
62472AGARNISH, ROOF SIDE, INNER LH
BLACK,TRIM1#,2#,4#
62489ACLIP, ROOF SIDE INNER GARNISH
63395CCLIP(FOR ROOF SIDE INNER GARNISH)
67913BPLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM1#,2#,4#
67914BPLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM1#,2#,4#
67917FPLATE, REAR DOOR SCUFF, INSIDE RH
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,4#
67918FPLATE, REAR DOOR SCUFF, INSIDE LH
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,4#
9046706147
main90467-06147
9046710161
main90467-10161
9046710167
main90467-10167
9046710216
main90467-10216
9046718017
main90467-18017
9167380616
main91673-80616

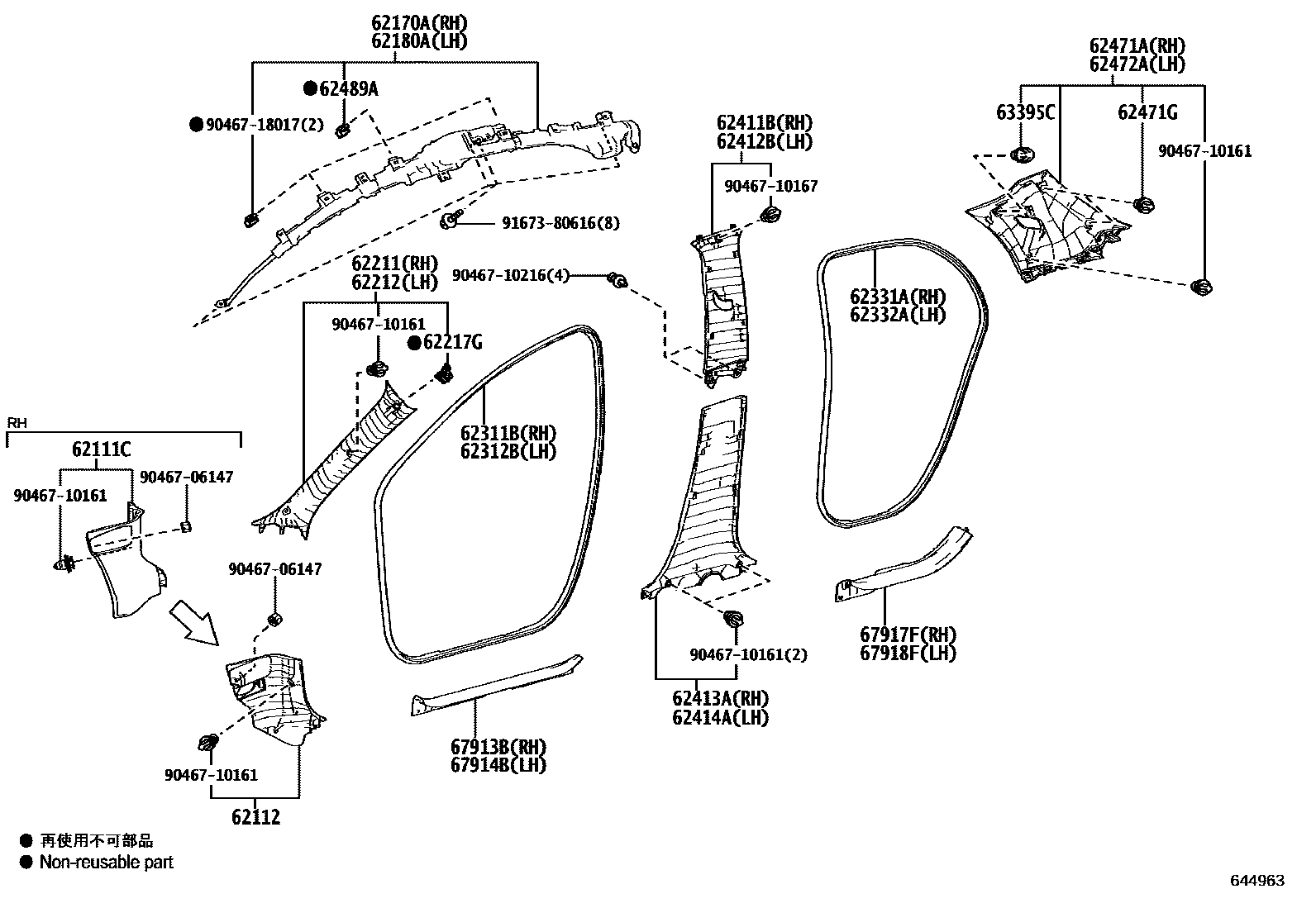

30 parts on this diagram · 1 diagram in section
