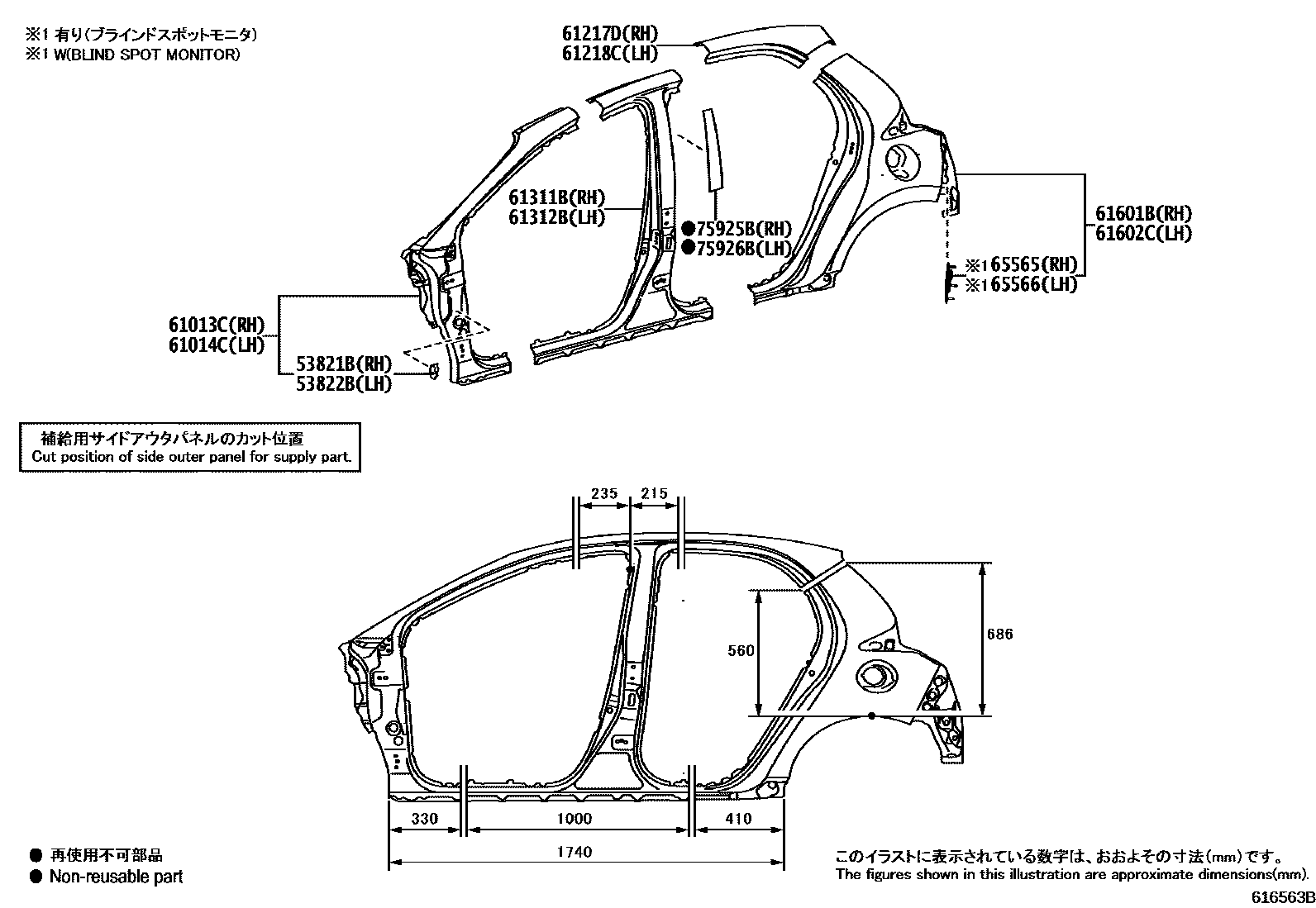

SIDE MEMBER

53821BBRACKET, FRONT FENDER, REAR RH

main53821-48030i202401-202501

53822BBRACKET, FRONT FENDER, REAR LH

main53821-48030i202005-202207

61013CPANEL SUB-ASSY, SIDE, INNER RH

main61013-52070i202005-202207

61014CPANEL SUB-ASSY, SIDE, INNER LH

main61014-52070i202005-202207

61217DRAIL, ROOF SIDE, OUTER NO.4 RH

main61217-52020i202005-202207

61218CRAIL, ROOF SIDE, OUTER NO.4 LH

main61218-52020i202005-202207

61311BPILLAR, CENTER BODY, OUTER RH

main61311-52101i202005-202207

61312BPILLAR, CENTER BODY, OUTER LH

main61312-52101i202005-202207

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-52840supersedes 61601-52850i202005-202401

PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB)

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-52840supersedes 61602-52850i202005-202401

PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB)

65565PATCH, SIDE PANEL REAR END, RH

main65565-50010i202005-202207

LANE CHANGE ASSIST-WITH

65566PATCH, SIDE PANEL REAR END, LH

main65565-50010i202005-202207

LANE CHANGE ASSIST-WITH

75925BTAPE, BLACK OUT, NO.3 RH

main75925-K0010i202005-202207

75926BTAPE, BLACK OUT, NO.3 LH

main75926-K0010i202005-202207

14 parts on this diagram · 3 diagrams in section
