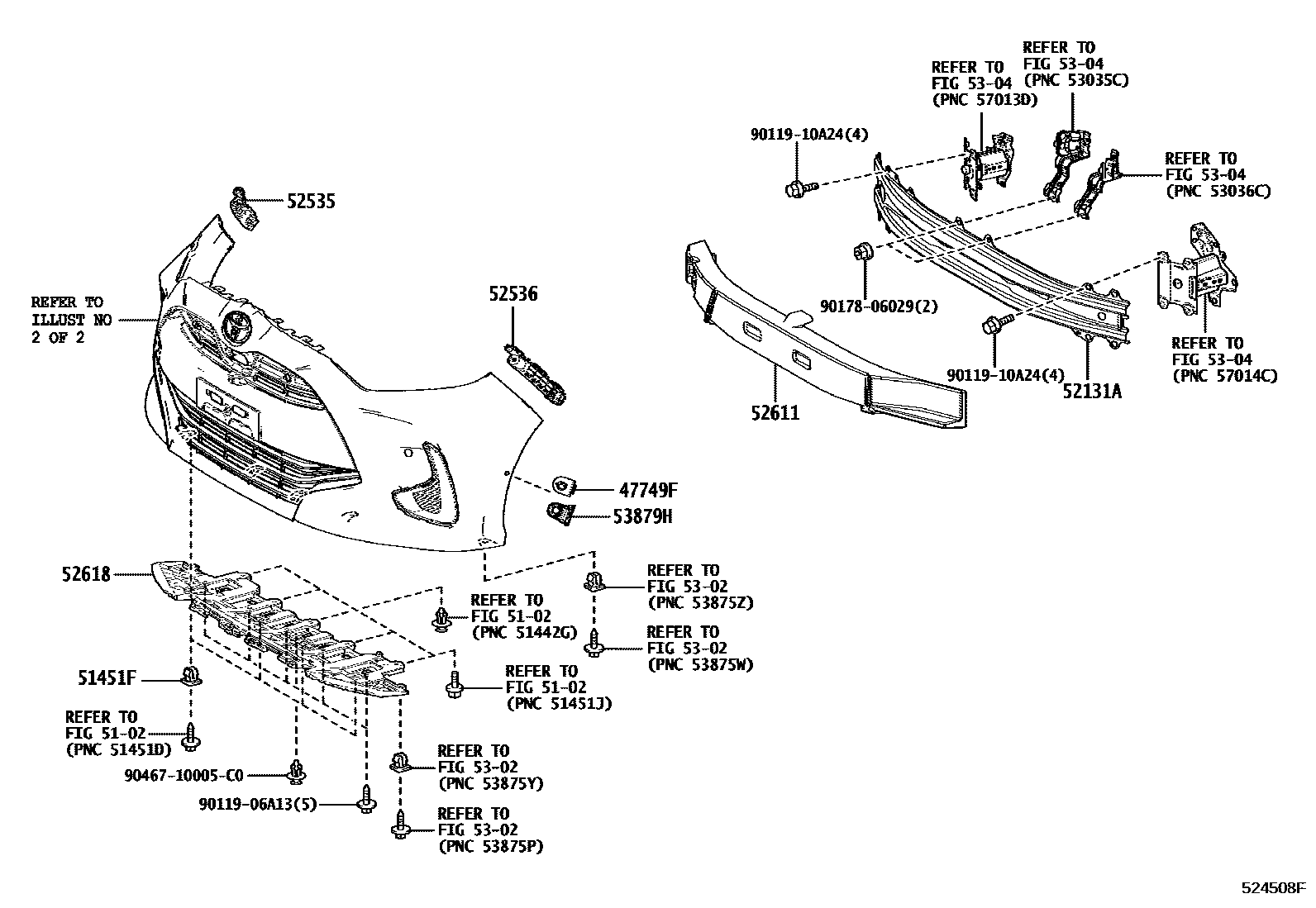

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

47749FCLIP, PIN HOLD

main47749-33030iMXPA10202005-202501

5102

51451FGROMMET, NO.1

main90189-06237iMXPA10..6F202005-202501

52131AREINFORCEMENT, FRONT BUMPER

main52131-52300iMXPH10202005-202501

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-K0030iMXPA10..6F202005-202401

main52535-K0030iMXPA10202401-202501

NO PAINT REQ.

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-K0030iMXPA10..6F202005-202401

main52536-K0030iMXPA10202401-202501

NO PAINT REQ.

52611ABSORBER, FRONT BUMPER ENERGY

main52611-52430iMXPA10202401-202501

main52611-K0010iMXPA10..6F202005-202401

52618ABSORBER, FRONT BUMPER, LOWER

main52618-52170iMXPA10..6F202005-202501

5302

5304

53879HRETAINER, FRONT FENDER LINER

main53879-33030iMXPA10..6F202005-202501

9011906A13

main90119-06A13

9011910A24

main90119-10A24

9017806029

main90178-06029

9046710005C0

main90467-10005C0

15 parts on this diagram · 4 diagrams in section
