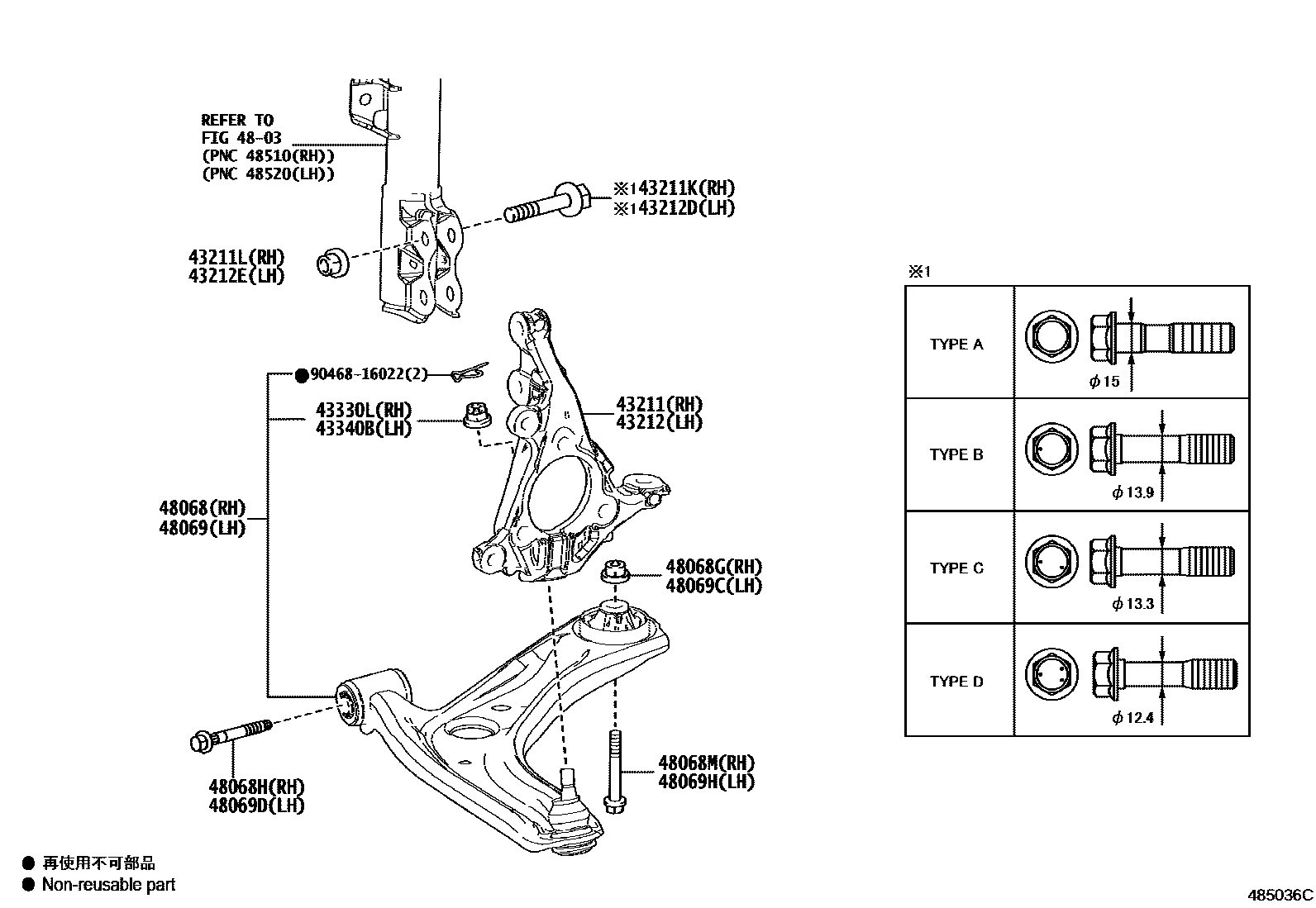

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43211-K0010iMXPA10,MXPH10202005-202401

43211KBOLT (FOR STEERING KNUCKLE RH)

main90109-15001×2iMXPA10202401-202501

OD=15,TYPE A:REFER ILLUST.

main90109-15002×2iMXPA10..6F202005-202207

OD=13.9,TYPE B:REFER ILLUST.

main90109-15003×2iMXPA10,MXPH10..CVT202005-202401

OD=13.3,TYPE C:REFER ILLUST.

main90109-15004×2iMXPA10..6F202005-202207

OD=12.4,TYPE D:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15004×2iMXPH10202401

43212KNUCKLE, STEERING, LH

main43212-K0010iMXPA10,MXPH10202005-202401

43212DBOLT (FOR STEERING KNUCKLE LH)

main90109-15001×2iMXPH10202401

OD=15,TYPE A:REFER ILLUST.

main90109-15002×2iMXPA10..6F202005-202207

OD=13.9,TYPE B:REFER ILLUST.

main90109-15003×2iMXPA10202401-202501

OD=13.3,TYPE C:REFER ILLUST.

main90109-15004×2iMXPA10,MXPH10..CVT202005-202401

OD=12.4,TYPE D:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15004×2iMXPA10..6F202005-202207

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007iMXPA10202401-202501

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007iMXPH10202401

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-52230iMXPA10202401-202501

main48068-K9000iMXPA10,MXPH10202005-202401

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90179-14068iMXPH10202401

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14193iMXPA10..6F202005-202207

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14180iMXPH10202401

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-52230iMXPA10202401-202501

main48069-K9000iMXPA10,MXPH10202005-202401

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90179-14068iMXPA10202401-202501

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14193iMXPA10..6F202005-202207

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14180iMXPA10..6F202005-202207

9046816022

main90468-16022

18 parts on this diagram · 2 diagrams in section
